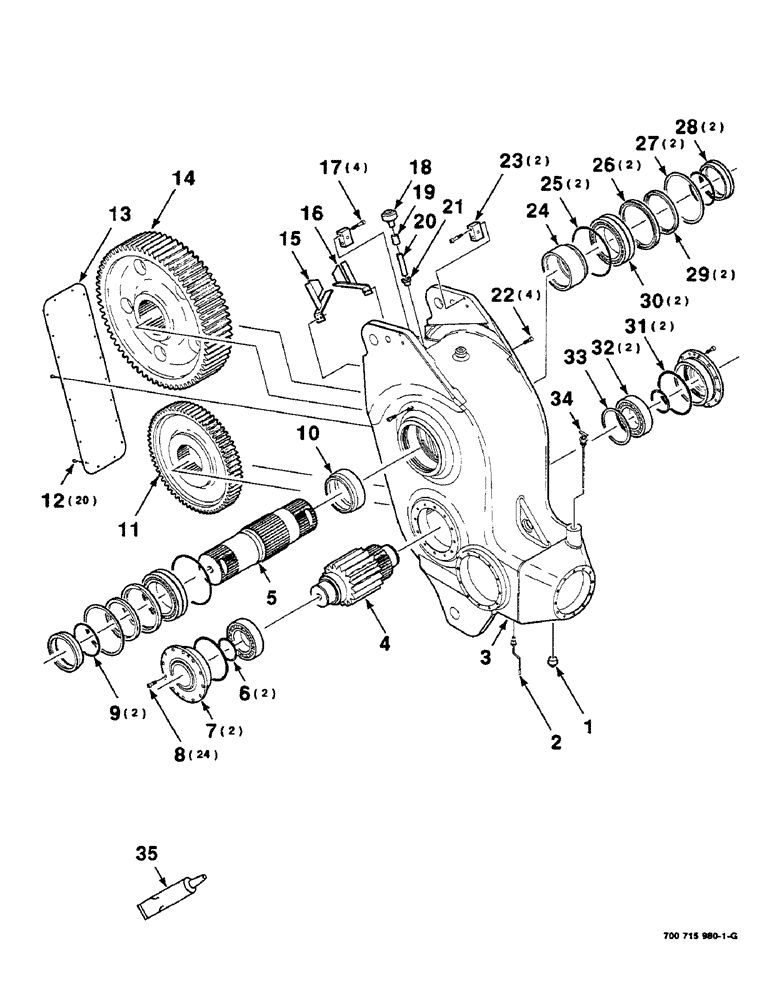

Запчасти Case IH 8580 (02-26) - GEARBOX ASSEMBLY, CAST, 700715980 GEARBOX ASSEMBLY COMPLETE, INCLUDES PGS 2-26 THRU 2-28 Driveline
№
Артикул
Название
Примечание
Количество
700715980
GEARBOX
ASSEMBLY COMPLETE
1шт.
1
217-532
DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF
PLUG, DRAIN, , Pipe Sq Hd, 1 1/4"-11 1/2 NPTF
1шт.
2
700716952
THERMOSTAT
ASSEMBLY
1шт.
3
700715981
HOUSING
- main
1шт.
4
700706091
GEAR
SHAFT - spur
1шт.
5
700112989
SHAFT
- output
1шт.
6
8052136
RING, SNAP
RING - retaining
2шт.
7
700715984
FLANGE COVER CAP
BEARING - carrier, cap
2шт.
8
863-12035
HEX SOC SCREW,M12 x 35mm, Cl 12.9
M12 X 1.75 X 35 HSHCS SPL
24шт.
9
238-5257
O-RING,0.139" Thk x 5.859" ID, -257, Cl 5, 75 Duro
2шт.
10
700715988
SPACER
1шт.
11
700706090
GEAR
- spur
1шт.
12
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
M8 X 1.25 X 16 C
20шт.
13
700715986
COVER PLATE
COVER - housing, main
1шт.
14
700706092
GEAR
- spur, output
1шт.
15
700112992
SCRAPER BLADE
SCRAPER
1шт.
16
700112991
SCRAPER BLADE
SCRAPER
1шт.
17
861-12060
HEX SOC SCREW,M12 x 60mm, Cl 12.9
M12 X 1.75 X 60 HSHCS SPL
4шт.
18
8799280
FILTER
1шт.
19
746354
COUPLING
- pipe
1шт.
20
746313
NIPPLE, LUBE
NIPPLE - pipe, 1/2 x 4 NPT
1шт.
21
217-1031
REDUCER,3/4" - 14 NPT x 1/2" - 14 NPT
BUSHING - reducing
1шт.
22
861-10030
HEX SOC SCREW,M10 x 30mm, Cl 12.9
SCREW - socket head, 10 - 1.5 x 30 mm, class 12.9
4шт.
23
700716685
BAR
TENSIONER
2шт.
24
700715989
SPACER
1шт.
26
700112993
SEAL
- carrier, output
2шт.
27
700708037
SNAP RING
RING - retaining
2шт.
28
700112988
SPACER
2шт.
29
700708000
SEAL
- lip, output
2шт.
30
700706041
SPHERICAL BEARING,150 mm ID x 225 mm OD x 56 mm
BEARING - spherical
2шт.
31
700720023
O-RING
2шт.
32
S97820
SPHERICAL BEARING,100mm ID x 180mm OD x 46mm W
BEARING - spherical
2шт.
33
7052020
RING
- retaining
1шт.
34
700706144
DIPSTICK
GAUGE - oil
1шт.
35
700707823
SEALANT
- 10.3 oz tube
1шт.
Выбрано товаров: 36
