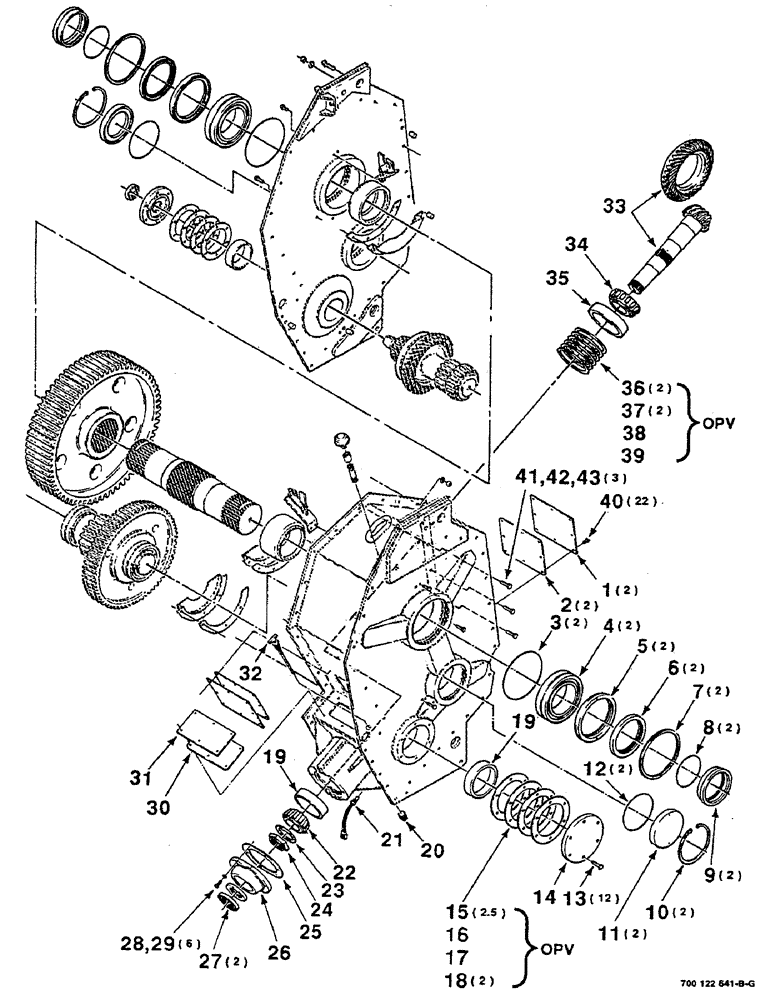

Запчасти Case IH 8580 (02-24) - GEARBOX ASSEMBLY, (CONT), WELDED Driveline

1

700113012

COVER

2шт.

2

700706086

GASKET

- front

2шт.

3

238-5270

O-RING,0.139" Thk x 8.984" ID, -270, Cl 5, 75 Duro

2шт.

4

700706041

SPHERICAL BEARING,150 mm ID x 225 mm OD x 56 mm

BEARING - spherical

2шт.

5

700112993

SEAL

CAP - output

2шт.

6

700708000

SEAL

2шт.

7

700708037

SNAP RING

RING - retaining

2шт.

8

238-5257

O-RING,0.139" Thk x 5.859" ID, -257, Cl 5, 75 Duro

2шт.

9

700112988

SPACER

- output

2шт.

10

700700502

SNAP RING

RING - retaining

2шт.

11

700113015

COVER

CAP - final pinion

2шт.

12

238-5262

O-RING,0.139" Thk x 6.984" ID, -262, Cl 5, 75 Duro

2шт.

13

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

BOLT, Hex, M12 x 35, 10.9, Full Thd

12шт.

14

700113013

CAP

- left

1шт.

15

700706070

SHIM

- left, inter 0.08/.003

2.5шт.

16

700706071

SHIM

- left, inter 0.13/.005

1шт.

17

700706072

SHIM

- left, inter 0.25/.010

1шт.

18

700706073

SHIM

- left, inter 0.51/.020

2шт.

19

700706034

BEARING CUP,161.93mm OD x 38.1mm W

BEARING - cup

2шт.

20

217-532

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG, DRAIN, Sq Hd, 1 1/4"-11 1/2 NPTF

1шт.

21

700706142

THERMOSTAT

ASSEMBLY

1шт.

22

700706030

ROLLER BEARING,76.2mm ID x 48.26mm W

BEARING - cone

1шт.

23

700706032

WASHER

- special

1шт.

24

700706065

NUT

- stake

1шт.

25

700706081

GASKET

- front, cap (S.N. CFH0026001 thru CFH0026752)

1шт.

700713657

GASKET

- front, cap (S.N. CFH0026753 and later)

1шт.

26

700112990

CAP

- front (S.N. CFH0026001 thru CFH0026752)

1шт.

700124035

FLANGE COVER CAP

CAP - front (S.N. CFH0026753 and later)

1шт.

27

700706045

SEAL

2шт.

28

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

29

700708367

WASHER

M10 L

6шт.

30

700706082

GASKET

- top

1шт.

31

700113011

COVER

- top

1шт.

32

700706144

DIPSTICK

GAUGE - oil

1шт.

33

700706088

BEVEL GEAR

RING - gear, pinion

1шт.

34

700706027

ROLLER BEARING,84.138 mm ID x 46.038 mm

BEARING - cone

1шт.

35

700706029

BEARING CUP

BEARING - cup

1шт.

36

700707769

SHIM

- input, pinion 0.51/.020

2шт.

37

700706068

SHIM

- input, pinion 0.08/.003

2шт.

38

700706067

SHIM

- input, pinion 0.13/.005

1шт.

39

700706066

SHIM

- input, pinion 0.25/.010

1шт.

40

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 X 1.25 X 16 C

22шт.

41

700708353

SCREW

M12 X 1.75 X 40 C

3шт.

42

892-10012

LOCK WASHER,M12

WASHER, M12

3шт.

43

825-1112

NUT,M12, Cl 8

M12 X 1.75 H

3шт.
