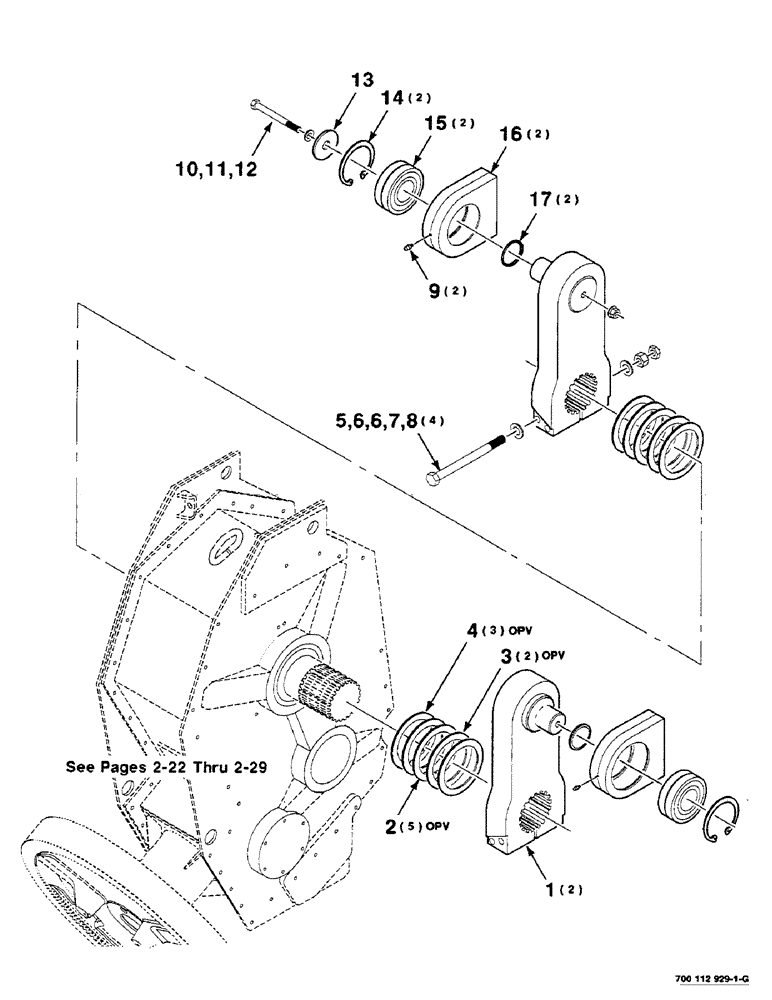

Запчасти Case IH 8580 (02-20) - GEARBOX AND CRANK ARM ASSEMBLY Driveline

1

700113023

ARM ASSY.

ARM WA - crank

2шт.

2

700708041

SHIM,150mm ID x 180mm OD x 1.21mm Thk

- 1.27/.050

5шт.

3

700708039

SHIM

- 0.64/.025

2шт.

4

700708038

SHIM,150mm ID x 180mm OD x 0.25mm Thk

0.25/.010

3шт.

5

700707996

BOLT

1-8 X 12 B GR8 NP

4шт.

6

496-21106

WASHER,1 1/16" x 2" x .209", HDN

8шт.

7

429-1016

NUT,1"-8, G8

4шт.

8

425-1416

JAM NUT,Jam, 1"-8, G5

1-8 J GR2

4шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

10

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

3/4-10 X 7-1/2 B

1шт.

11

705566

WASHER

3/4 HARDENED PLAIN WASHER

1шт.

12

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

13

6579106

LARGE PLATE

WASHER

1шт.

14

8052144

RING, SNAP

RING - retaining

2шт.

15

8050593

SPHERICAL BEARING,74.99mm ID x 160mm OD x 55mm W

- roller

2шт.

16

700113065

BEARING HOUSING

HOUSING - bearing

2шт.

17

700113046

SPACER

2шт.
