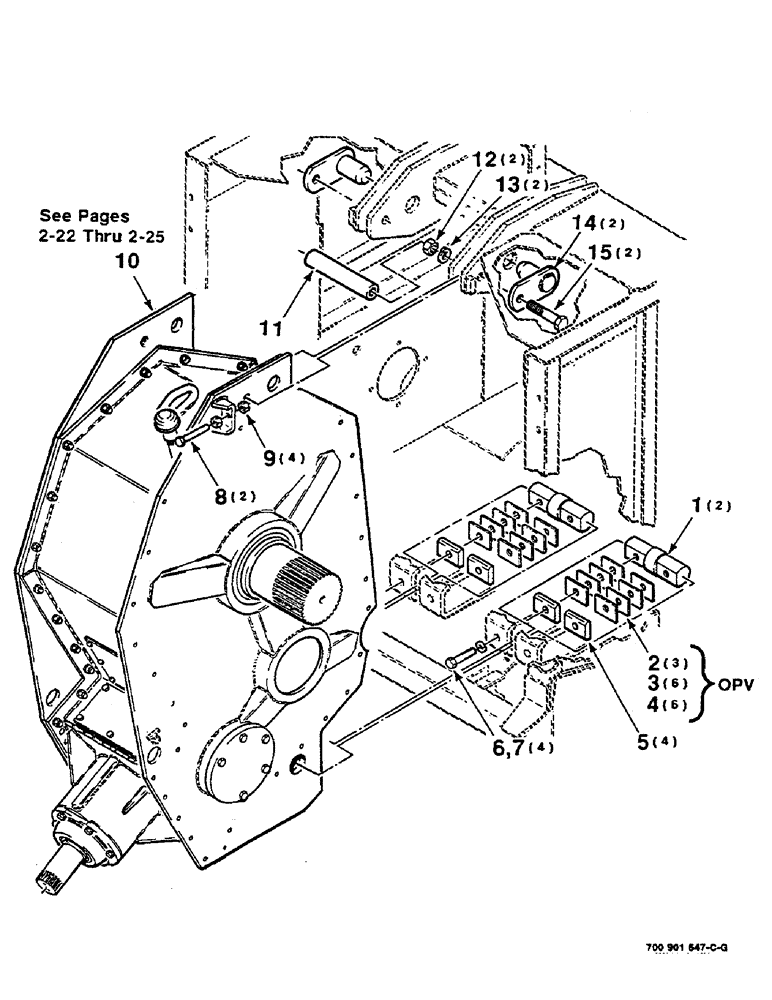

Запчасти Case IH 8580 (02-16) - GEARBOX MOUNTING ASSEMBLY, S.N. CFH0026001 THRU CFH0026170 Driveline

1

700113066

PIN

2шт.

2

700706062

SHIM

0.08/.003

3шт.

3

700706063

SHIM

0.13/.005

6шт.

4

700706064

SHIM

0.25/.010

6шт.

5

700113042

SPACER

4шт.

6

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

3/4-10 X 2-3/4 C

4шт.

7

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

8

7771504

BOLT

5/8-11 X 3 FTC

2шт.

9

425-1010

NUT,5/8"-11, G5

4шт.

10

700112934

GEARBOX

ASSEMBLY (Superseded by 700122641 and 700122660)

1шт.

11

700113051

TUBE,38.1 mm OD, 230 mm Length

1шт.

12

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

2шт.

13

192-171

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

14

700113047

PIN

WA

2шт.

15

326-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 8

2шт.
