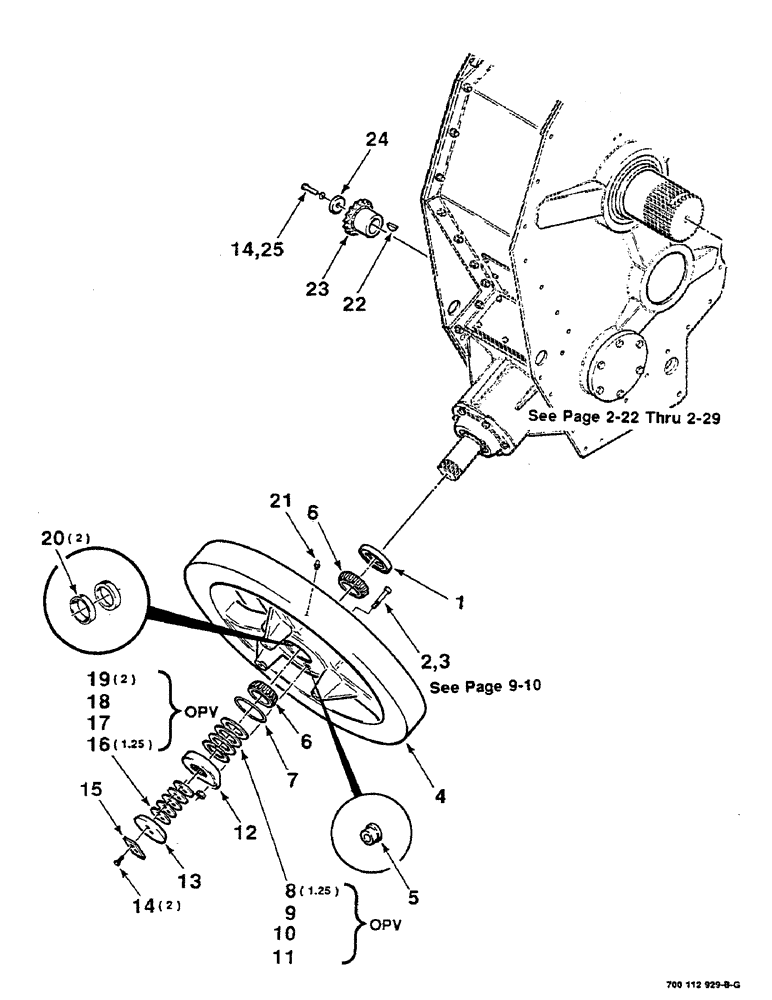

Запчасти Case IH 8580 (02-14) - FLYWHEEL ASSEMBLY Driveline

1

700706045

SEAL

1шт.

2

7884950

BOLT

- shear

1шт.

3

429-107

NUT,7/16"-14, G8

1шт.

4

700152213

BALER FLYWHEEL

FLYWHEEL

1шт.

5

7852718

SLEEVE

- shear

1шт.

6

78848C91

BEARING ASSY,61.98mm ID x 24.61mm W

- cone

2шт.

7

700706050

O-RING

1шт.

8

700706056

SHIM

0.08/.003

1.25шт.

9

700706057

SHIM

0.13/.005

1шт.

10

700706058

SHIM

0.25/0.10

1шт.

11

700707991

SHIM,63.5mm ID x 95mm OD x 0.51mm Thk

0.51/.020

1шт.

12

700113038

HUB

- shear

1шт.

13

700113044

RETAINING PLATE

CAP - retainer

1шт.

14

628-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

3шт.

15

700113045

LOCKING PLATE

TAB - lock

1шт.

16

700706059

SHIM

0.08/.003

1.25шт.

17

700706060

SHIM

0.13/.005

1шт.

18

700706061

SHIM

0.25/0.10

1шт.

19

700707993

SHIM

2шт.

20

610513C1

BEARING CUP,101.6mm OD x 19.84mm W

BEARING - cup

2шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

22

126-40

WOODRUFF KEY,#G, 3/8" x 1 1/2"

1шт.

23

700112923

SPROCKET

WA

1шт.

24

6526586

WASHER

WASHER - special

1шт.

25

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER, LOCK, M16

1шт.
