Запчасти Case IH 8580 (02-12) - FLYWHEEL CLUTCH ASSEMBLY Driveline

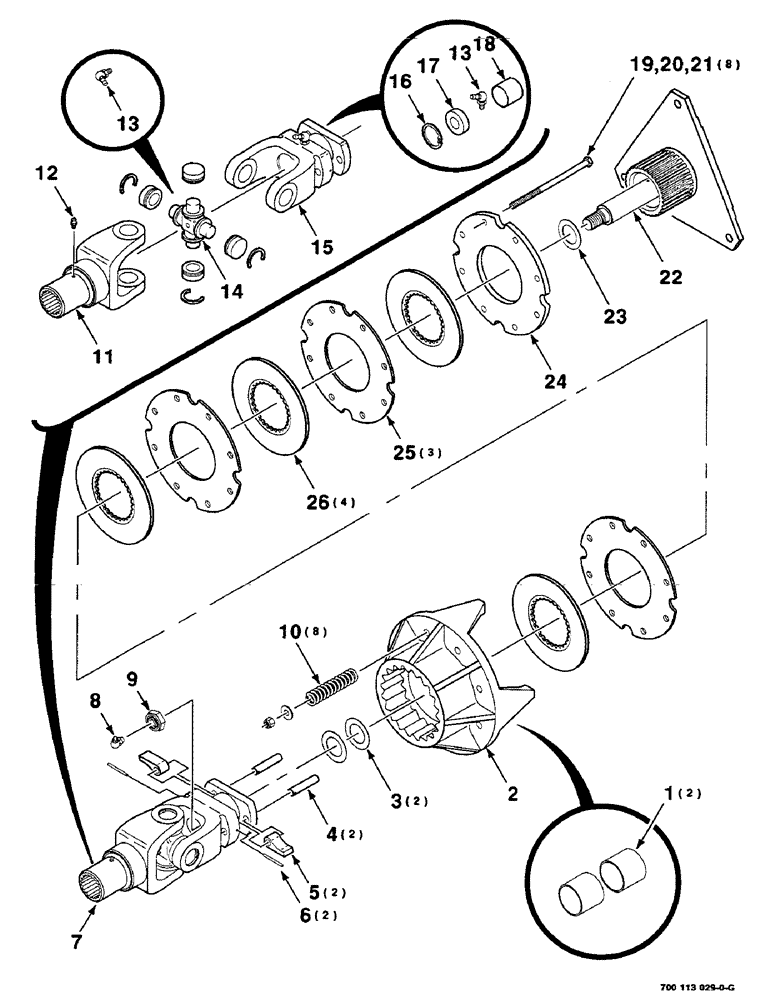

Схема запчастей Case IH 8580 - (02-12) - FLYWHEEL CLUTCH ASSEMBLY Driveline
24
26
3
6
7
13
2
23
11
25
18
21
8
5
14
22
20
16
12
17
1
4
15
10
13
9
19

Артикул

Название

Примечание

Количество

1

7852114

BUSHING,34.9mm ID x 38.1mm OD x 33.27mm L

- bronze

2шт.

2

700113034

CLUTCH HOUSING

HOUSING ASSEMBLY - clutch (Includes item 1)

1шт.

3

6522932

SHIM

- clutch

2шт.

4

700113037

PIN

- pawl

2шт.

5

700113036

PAWL

- clutch

2шт.

6

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

2шт.

7

700706087

DRIVE SHAFT

U-JOINT ASSEMBLY

1шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 90 DEGREE ZERK

1шт.

9

231-24014

NUT

7/8-14 LHSN

1шт.

10

858019

SPRING

- compression

8шт.

11

700706957

YOKE

ASSEMBLY (Includes item 12)

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 ZERK

1шт.

13

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 65 DEGREE ZERK

2шт.

14

470077R91

BEARING ASSY,1.025" ID x 1.5325" OD x 4.309"

CROSS AND BEARING KIT (Includes item 13)

1шт.

15

700706955

YOKE

ASSEMBLY (Includes items 13, 16, 17 and 18)

1шт.

16

16242

SNAP RING,1.852", Int, #185

Ring, Snap, 1.852", Int, #185

1шт.

17

7711799

BEARING, ROLLER, CYL,0.9843" ID x 1.8504" OD x 0.4724"

BEARING - cylindrical

1шт.

18

700706956

BRONZE BUSHING

BEARING - bronze

1шт.

19

700707998

SCREW,Hex, 3/8" - 16 x 7", Gr 5

3/8-16 X 7 B - special

8шт.

20

495-21044

WASHER,3/8"

8шт.

21

231-1406

LOCK NUT,3/8"-16, GB

3/8-16 LHSN

8шт.

22

700113030

PLATE

PILOT WA - clutch

1шт.

23

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 X 14 GAUGE NRMB

1шт.

24

6522866

CLUTCH PLATE

PLATE - clutch

1шт.

25

700112903

CLUTCH PLATE,106mm ID x 220mm OD x 5mm Thk

PLATE - clutch

3шт.

26

700108820

DISC

ASSEMBLY - friction

4шт.

Выбрано товаров: 26
