Запчасти Case IH 8580 (02-04) - FLYWHEEL BRAKE ASSEMBLY Driveline

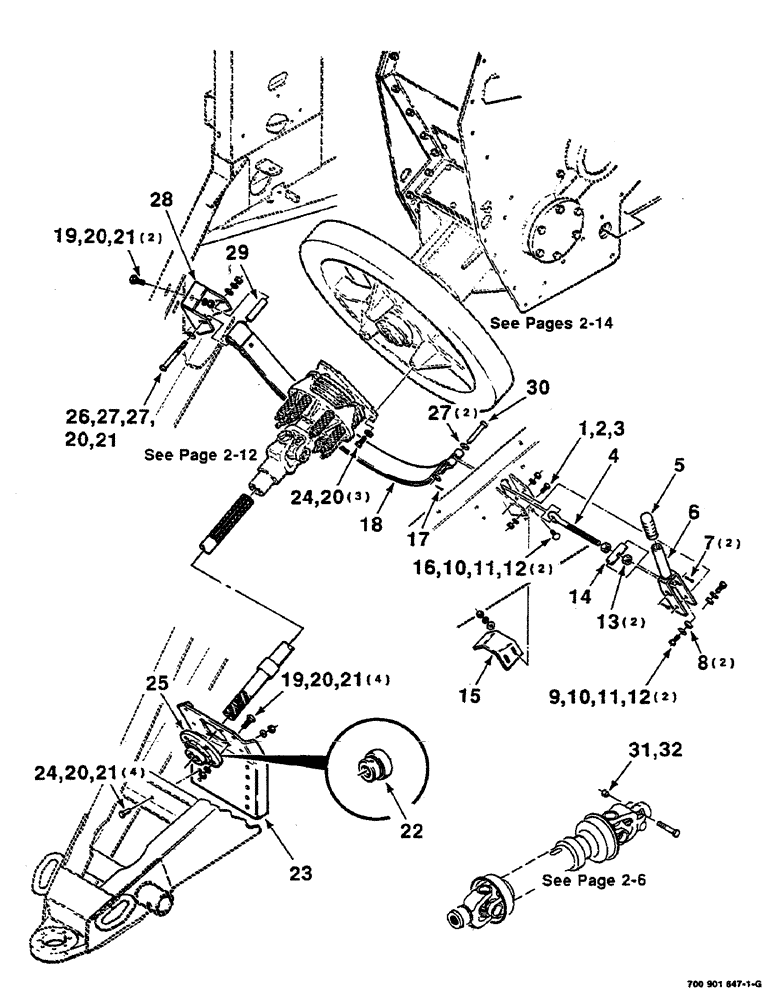

Схема запчастей Case IH 8580 - (02-04) - FLYWHEEL BRAKE ASSEMBLY Driveline
22
21
19
7
32
15
12
24
19
5
29
23
1
12
21
14
9
2
17
18
13
11
20
26
20
24
20
6
16
10
27
31
27
20
8
21
11
4
21
3
30
25
20
27
28
10

Артикул

Название

Примечание

Количество

1

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

2

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

425-105

NUT,5/16"-18, G5

1шт.

4

766667

BOLT,1/2" - 13 x 10"

1/2 X 10 EYE BOLT

1шт.

5

27342

GRIP

- handle

1шт.

6

700113054

LEVER

HANDLE WA

1шт.

7

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

8

6489231

SPACER

2шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

425-106

NUT,3/8"-16, Cl 5

4шт.

13

231-1448

NUT,1/2"-13, GB

1/2-13 LHSN

2шт.

14

700113057

PIN

- brake

1шт.

15

700113052

STOP

1шт.

16

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

17

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

18

700113058

BRAKE BAND

BRAKE ASSEMBLY

1шт.

19

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

6шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

14шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

11шт.

22

51318

BEARING

1шт.

23

700113022

SUPPORT

1шт.

24

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

7шт.

25

700110467

BEARING ASSY,44.45 mm ID x 92.44 mm OD x 29 mm

BEARING ASSEMBLY (Includes item 22)

1шт.

26

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2-13 X 4-1/2 C

1шт.

27

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

28

700112893

CHANNEL

WA

1шт.

29

6524003

SPACER

1шт.

30

439-5848

HEADED PIN,1/2" x 3", G5

1/2 X 3 CLEVIS PIN

1шт.

31

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

32

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/C

1шт.

Выбрано товаров: 32
