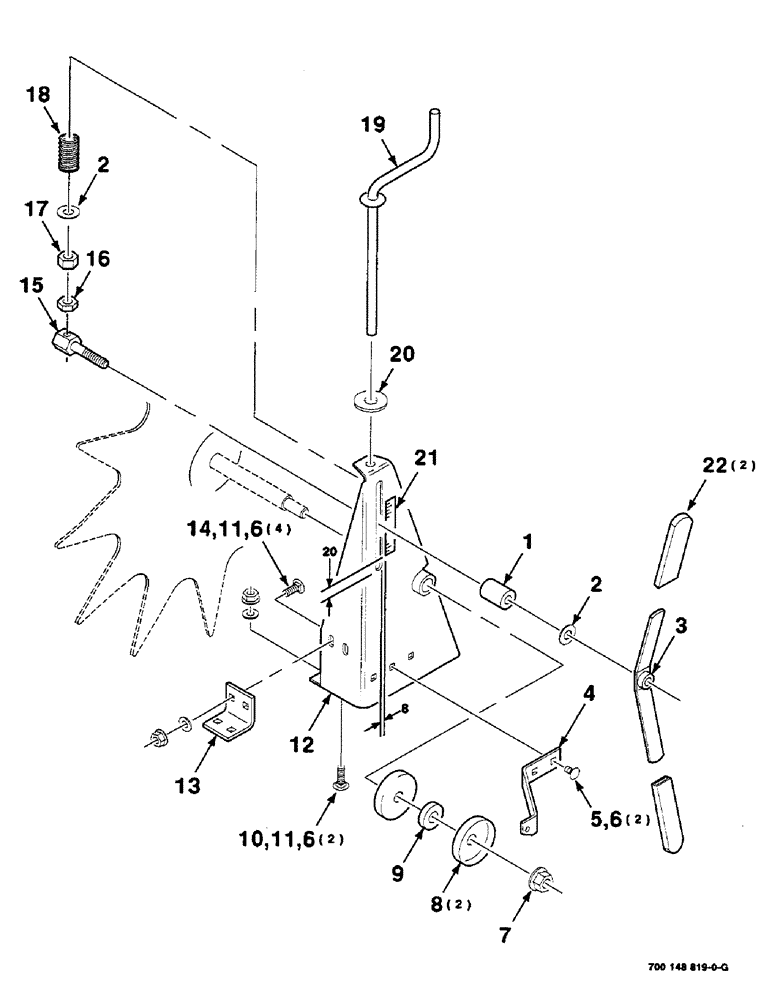

Запчасти Case IH 8580 (09-18) - BALE LENGTH ADJUSTMENT KIT, 700148818 BALE LENGTH ADJUSTMENT KIT Decals & Attachments

700148818

ADJUSTER

BALE LENGTH ADJUSTMENT KIT

1шт.

1

6234710

SPACER

1шт.

2

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

3

700134935

LEVER

ASSEMBLY

1шт.

4

700134937

SUPPORT

- spring

1шт.

5

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

6

329-286

FLANGE NUT,Flg, 3/8"-16, G8

8шт.

7

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

8

700123850

SHIELD

- wheel

2шт.

9

6530489

HUB

SPACER - hub

1шт.

10

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

11

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

6шт.

12

700134931

BRACKET

WA - starwheel

1шт.

13

700134449

ANGLE

- support

1шт.

14

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

15

700134527

SHAFT

- adjust

1шт.

16

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

18

58024

SPRING

- compression

1шт.

19

700134938

CRANKED HANDLE

CRANK WA

1шт.

20

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

1шт.

21

700714164

DECAL

- indicator

1шт.

22

827360

HANDLE

GRIP

2шт.
