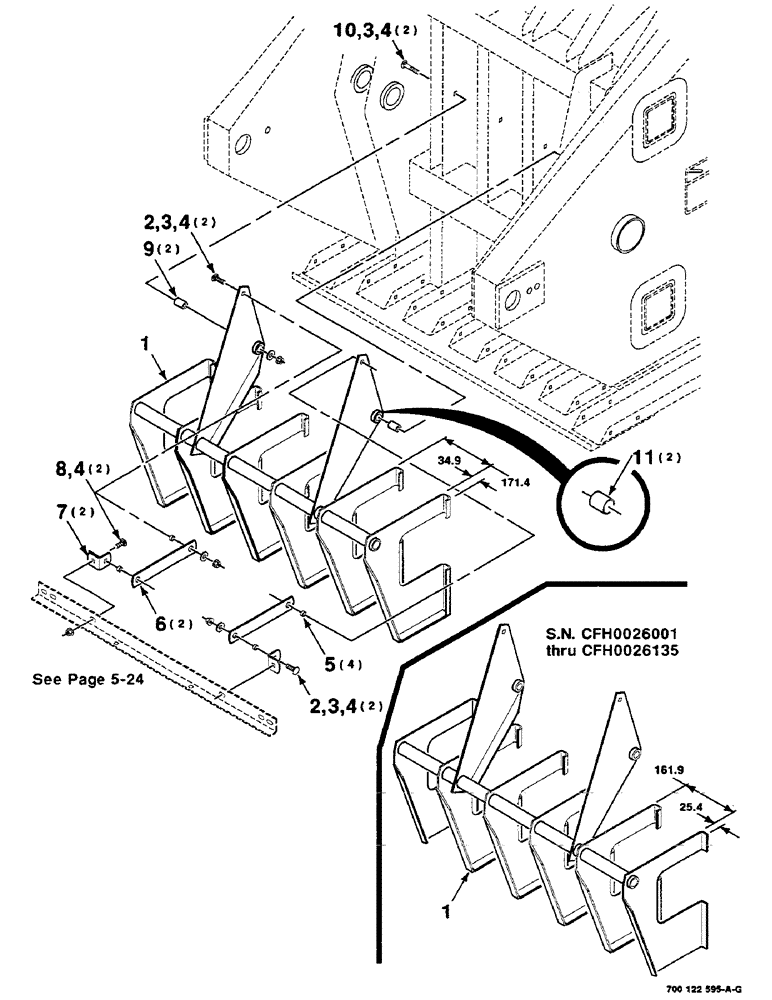

Запчасти Case IH 8580 (09-14) - PLUNGER CLEANER KIT Decals & Attachments

700122595

KIT

PLUNGER CLEANER KIT COMPLETE (S.N. CFH0026001 thru CFH0026135)

1шт.

1

700122589

SUPPORT

BLADE WA (Includes item 11) (S.N. CFH0026001 thru CFH0026135)

1шт.

700122582

SUPPORT

BLADE WA (Includes item 11) (S.N. CFH0026136 and later)

1шт.

2

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

3

495-21044

WASHER,3/8"

6шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

5

6232946

BUSHING

4шт.

6

700122587

SHIN

STRAP

2шт.

7

700122588

ANGLE

2шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

9

6518302

SPACER

2шт.

10

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

2шт.

11

740787

BRONZE BUSHING

BUSHING - bronze

2шт.
