(06-48) - LUBE HARNESS AND VALVE ASSEMBLY, FRONT

Запчасти Case IH 8580 (06-48) - LUBE HARNESS AND VALVE ASSEMBLY, FRONT (14) - BALE CHAMBER

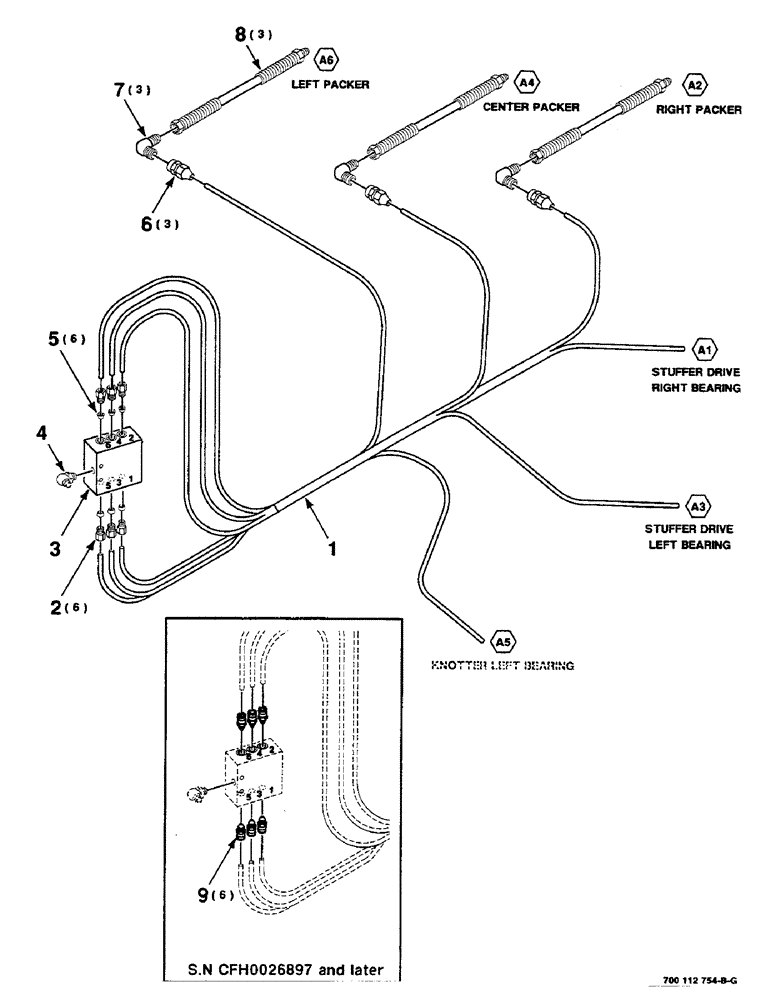

Схема запчастей Case IH 8580 - (06-48) - LUBE HARNESS AND VALVE ASSEMBLY, FRONT (14) - BALE CHAMBER
7
5
2
1
3
6
9
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700113687

FLEXIBLE HOSE

HARNESS - lube, front

1шт.

2

700706684

HYD CONNECTOR

NUT - compression

12шт.

3

700706835

MANIFOLD

VALVE BLOCK - lube

2шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8-27 90 DEGREE ZERK

2шт.

5

700706678

FERRULE

12шт.

6

700706840

HYD CONNECTOR

CONNECTOR - female

3шт.

7

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

90 DEGREE ELBOW - male

3шт.

8

700706798

FLEXIBLE HOSE

HOSE

3шт.

9

700714008

HYD CONNECTOR

FITTING - quickline

6шт.
