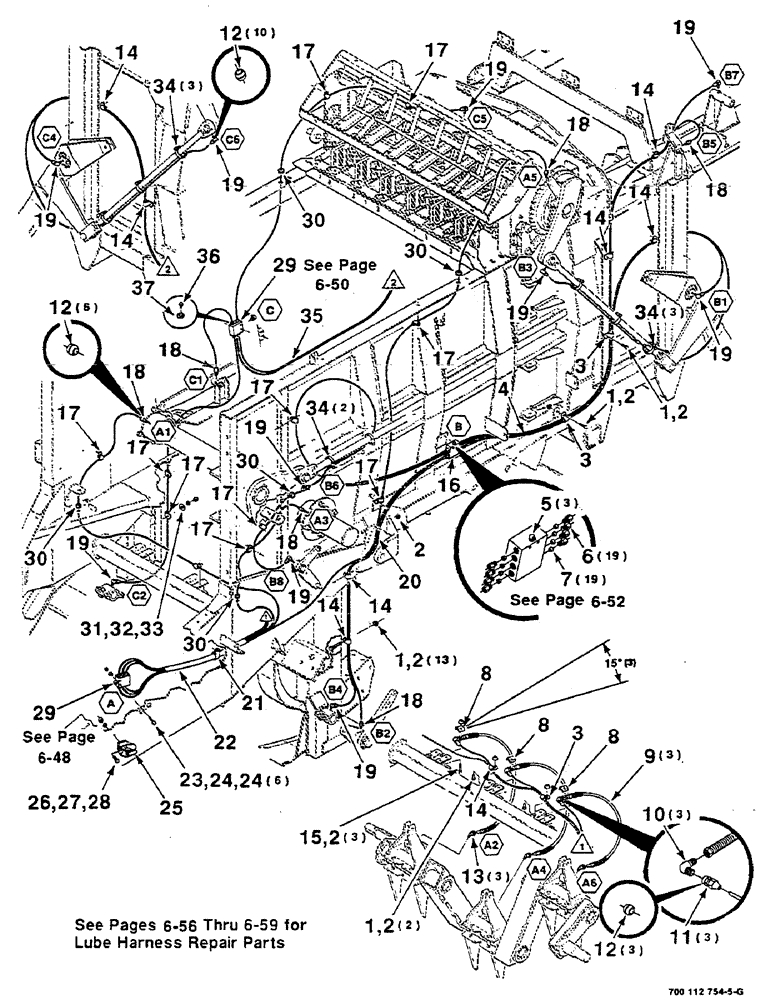

Запчасти Case IH 8580 (06-46) - LUBE ASSEMBLY, CENTRALIZED (14) - BALE CHAMBER

1

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

17шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

21шт.

3

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

3шт.

4

700113690

FLEXIBLE HOSE

HARNESS - lube, rear

1шт.

5

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 90 DEGREE ZERK

3шт.

6

700706684

HYD CONNECTOR

NUT - compression

19шт.

7

700706678

FERRULE

19шт.

8

700113671

CLAMP

- line

3шт.

9

700706798

FLEXIBLE HOSE

HOSE ASSEMBLY - grease

3шт.

10

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

90 DEGREE ELBOW - male

3шт.

11

700706840

HYD CONNECTOR

CONNECTOR - female

3шт.

12

30774V

FERRULE

SLEEVE - ball

19шт.

13

219-81

ELBOW,45 Degree, 1/8"-27

1/8-28 X 45 DEGREE STREET ELBOW

3шт.

14

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

8шт.

15

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

16

700706837

MANIFOLD

VALVE BLOCK - lube

1шт.

17

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4 ID CLAMP

10шт.

18

219-300

ROD, CONNECTING

CONNECTOR - male

6шт.

19

700706682

FRONT AXLE

1/8-27 X 90 DEGREE ELBOW

10шт.

20

700113691

FLEXIBLE HOSE

HARNESS - lube, pickup

1шт.

21

515-23254

CLAMP,1", Insul, 3/8" Bolt

Line 1", Insul, 3/8" Bolt

1шт.

22

700113687

FLEXIBLE HOSE

HARNESS - lube, front

1шт.

23

7701444

SCREW

#10-32 X 1-3/4 HSHCS SPL

6шт.

24

225-14210

NUT,#10-32

12шт.

25

700707011

HOLDER

- grease gun

1шт.

26

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

1шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

28

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

29

700706835

MANIFOLD

VALVE - divider, grease

2шт.

30

248-13101

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- rubber

5шт.

31

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

32

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

33

425-105

NUT,5/16"-18, G5

1шт.

34

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

8шт.

35

700113890

FLEXIBLE SHEATH

HARNESS - lube, right

1шт.

36

700706841

PLUG

- closure

1шт.

37

700706839

GASKET,10.31mm ID x 13.82mm OD x 0.84mm Thk

1шт.
