(06-44) - LUBE HARNESS ASSEMBLIES, TWINE FINGER, S.N. CFH0026001 THRU CFH0026479

Запчасти Case IH 8580 (06-44) - LUBE HARNESS ASSEMBLIES, TWINE FINGER, S.N. CFH0026001 THRU CFH0026479 (14) - BALE CHAMBER

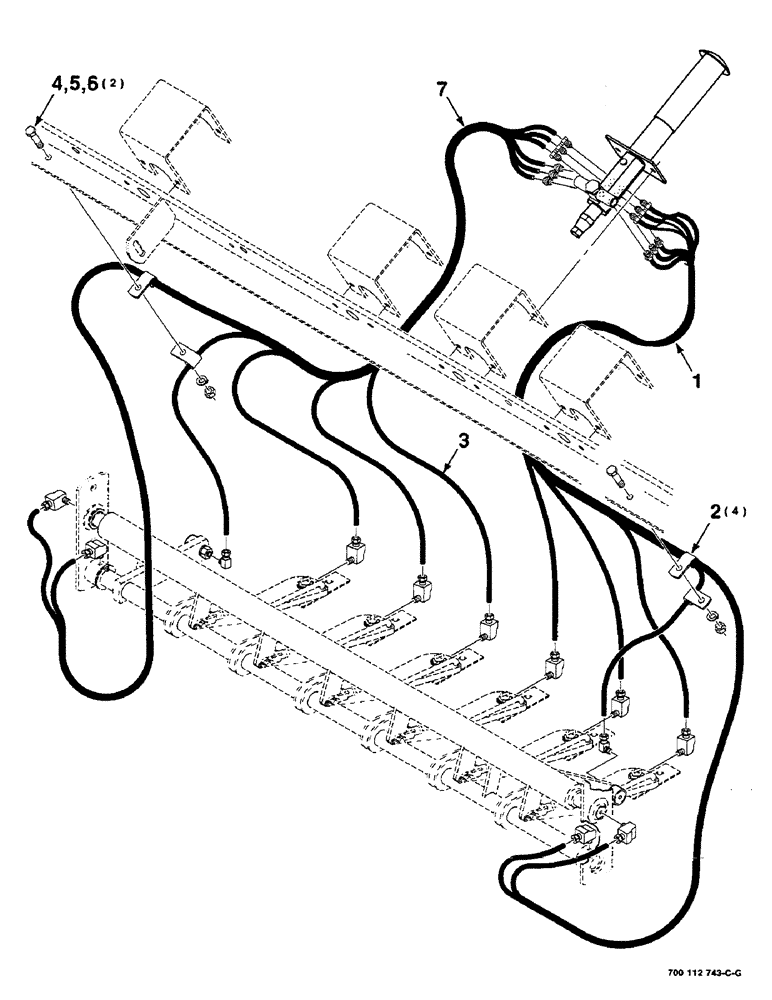

Схема запчастей Case IH 8580 - (06-44) - LUBE HARNESS ASSEMBLIES, TWINE FINGER, S.N. CFH0026001 THRU CFH0026479 (14) - BALE CHAMBER
1
5
3
2
7
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700113355

FLEXIBLE HOSE

HARNESS ASSEMBLY

1шт.

2

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

4шт.

3

700113359

TUBE,0.125" OD, 3048 mm Length

TUBING - nylon (10 Foot bulk)

1шт.

4

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

2шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

425-104

NUT,1/4"-20, Cl 5

2шт.

7

700113356

FLEXIBLE HOSE

HARNESS ASSEMBLY

1шт.
