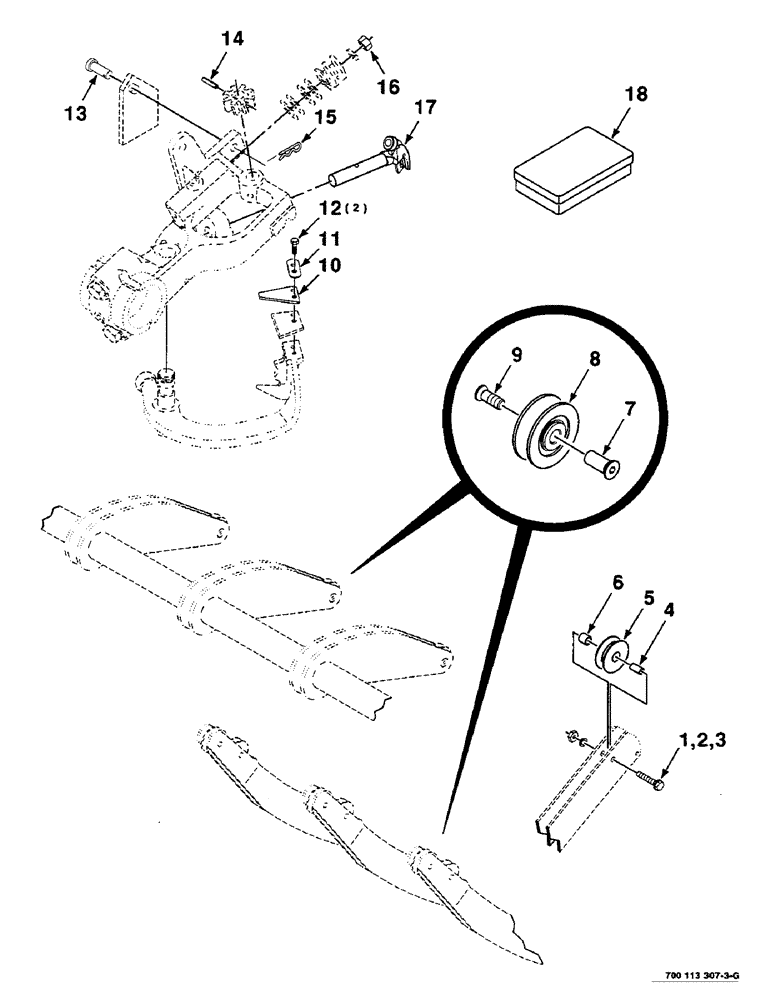

Запчасти Case IH 8580 (06-36) - KNOTTER, BOX OF SERVICE PARTS, 700114078 BOX OF SERVICE PARTS COMPLETE (14) - BALE CHAMBER

700114078

KIT

BOX OF SERVICE PARTS COMPLETE

1шт.

1

363-31016

SCREW,Hex Wash Hd, #10-24 x 1"

#10-24 X 1 HWHMS

1шт.

2

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

3

225-14110

NUT,#10-24

1шт.

4

7849110

BUSHING,5.23mm ID x 6.99mm OD x 13.49mm L

BUSHING - roller

1шт.

5

6529945

ROLLER

- needle

1шт.

6

7849656

SLEEVE

- roller

1шт.

7

866566

FASTENER,#10 - 32 x 9/16"

#10-32 FASTENER - special

1шт.

8

700707700

BALL BEARING,6.48 mm ID x 31.75 mm OD x 13.08 mm

BEARING

1шт.

9

164-102

HEX SOC SCREW,FLAT, #10 - 32 x 1/2"

#10-32 X 1/2 HSFCHCS

1шт.

10

700718710

KNIFE

- twine

1шт.

11

6613624

WASHER, LOCK

TAB - locking

1шт.

12

163-47

SCREW,Hex, #10 - 32 x 1/2", Gr 5

2шт.

13

063586

CLEVIS PIN

3/8 X 1-1/8 CLEVIS PIN

1шт.

14

435-7614

GROOVED PIN,3/16" x 7/8", Type G

Pin, Grooved, 3/16" x 7/8", Type G

1шт.

15

S120261

PIN

.149 HAIRPIN COTTER

1шт.

16

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

17

700700968

KNOTTER

BILL AND HOOK ASSEMBLY

1шт.

18

700707474

BOX

- plastic

1шт.
