(09-04) - DECALS AND LOCATION DIAGRAM, S.N. CFH0026963 AND LATER

Запчасти Case IH 8580 (09-04) - DECALS AND LOCATION DIAGRAM, S.N. CFH0026963 AND LATER Decals & Attachments

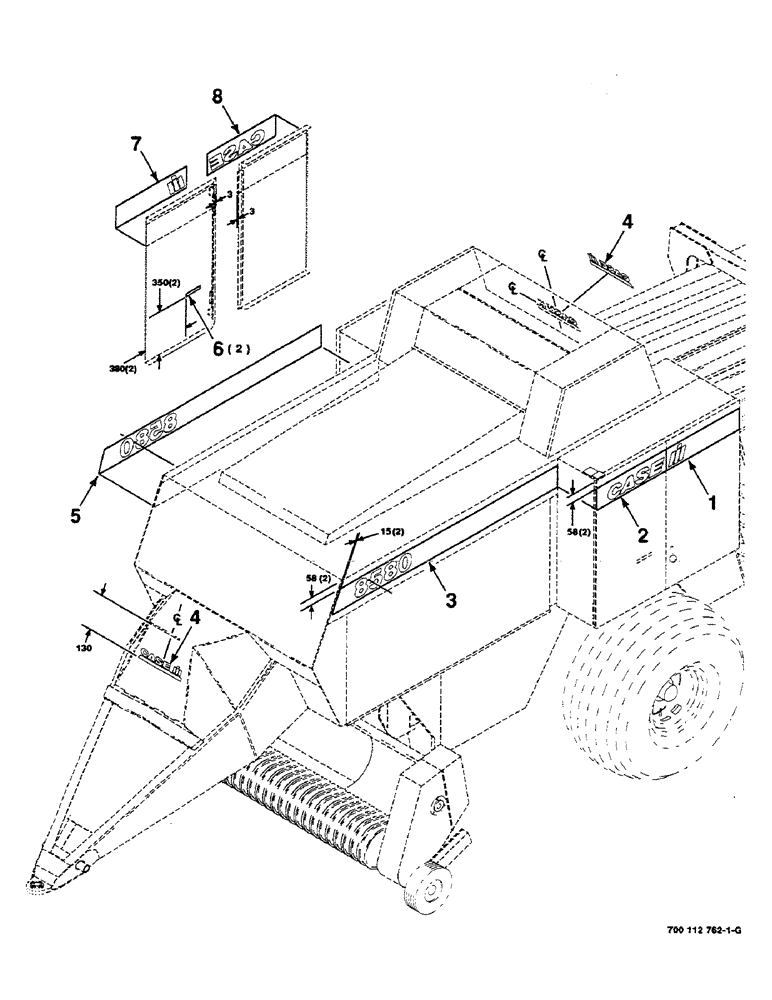

Схема запчастей Case IH 8580 - (09-04) - DECALS AND LOCATION DIAGRAM, S.N. CFH0026963 AND LATER Decals & Attachments
7
4
6
8
2
4
1
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700714397

DECAL

- combo, left, rear

1шт.

2

700714396

DECAL

- combo, left, middle

1шт.

3

700714395

DECAL

- combo, left, front

1шт.

4

192849A2

DECAL

- Case IH

2шт.

5

700714398

DECAL

- combo, right, front

1шт.

6

700708190

DECAL

2шт.

7

700714399

DECAL

- combo, right, middle

1шт.

8

700714400

DECAL

- combo, right, rear

1шт.

Выбрано товаров: 8
