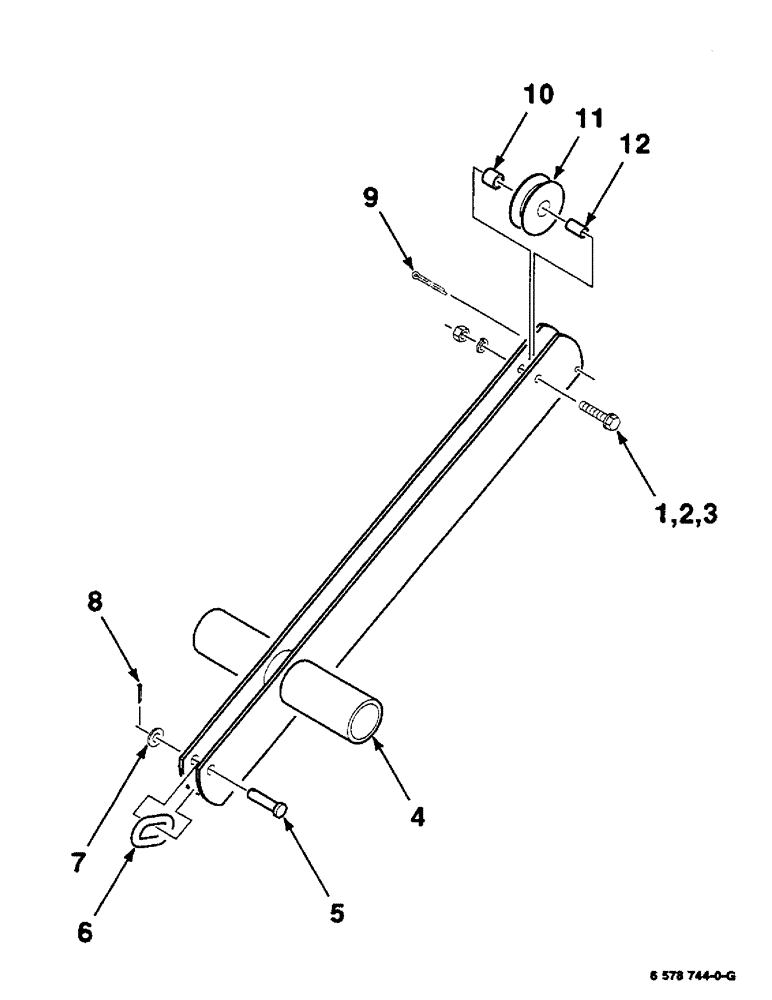

Запчасти Case IH 8580 (06-32) - TENSION ARM ASSEMBLY (14) - BALE CHAMBER

1

363-31016

SCREW,Hex Wash Hd, #10-24 x 1"

#10-24 X 1 HWHMS

1шт.

2

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

3

225-14110

NUT,#10-24

1шт.

4

6578751

ARM

WA - tension

1шт.

5

A8823

PIN,6.29mm OD x 26.99mm L

1/4 X 1 CLP

1шт.

6

89987

CHAIN (AG)

LINK - chain

1шт.

7

495-11028

WASHER,1/4", SAE

1шт.

8

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

9

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

10

7849656

SLEEVE

- roller

1шт.

11

6529945

ROLLER

- needle

1шт.

12

7849110

BUSHING,5.23mm ID x 6.99mm OD x 13.49mm L

BUSHING - roller

1шт.
