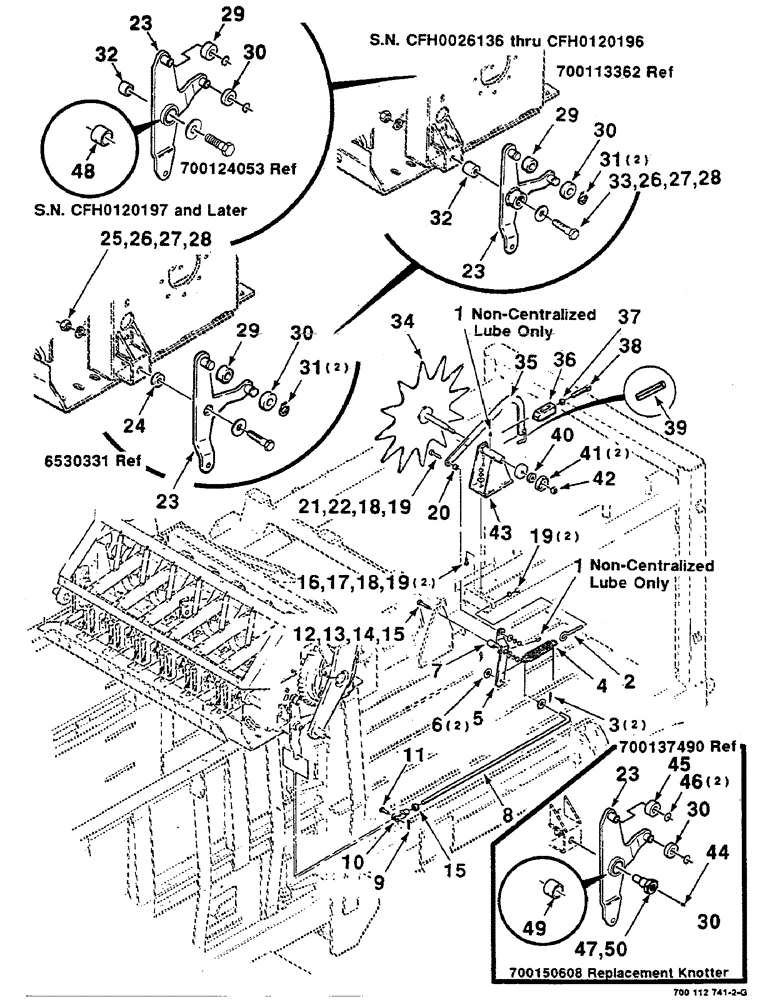

Запчасти Case IH 8580 (06-26) - STARWHEEL ASSEMBLY (14) - BALE CHAMBER

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 ZERK

2шт.

2

766485

EYEBOLT,3/8" - 16 x 5", Full Thd

3/8 X 5 EYE BOLT

1шт.

3

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

2шт.

4

758441

SPRING

- extension

1шт.

5

6530588

ARM

WA

1шт.

6

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

7

6530638

BUSHING

- pivot

1шт.

8

700113105

ROD

- starwheel

1шт.

9

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

10

66183

SHAFT

1шт.

11

427-8150

CLEVIS PIN,1/2" x 1 1/2"

1/2X1.500 1.281 HD/HOLE CLEVIS ZND

1шт.

12

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

1/2-13 X 2-1/2 RHSNB

1шт.

13

495-21056

WASHER,1/2"

1/2 WIDE PLAIN WASHER

1шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

16

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

17

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

18

492-11038

LOCK WASHER,3/8"

3шт.

19

425-106

NUT,3/8"-16, Cl 5

5шт.

20

6530646

BUSHING

- pivot

1шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

22

495-21044

WASHER,3/8"

1шт.

23

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

ARM WA (S.N. CFH0026001 thru CFH0026135) superseded by 700113362, 6533012 & 7702145

1шт.

700113362

ARM

WA (S.N. CFH0026136 thru CFH0120196) superseded by 700124053, 700106397, 700124056

1шт.

700124053

ARM

WA (S.N. CFH0120197 and later)

1шт.

700137490

ARM

WA (700150608 Replacement knotter)

1шт.

24

6530653

SPACER

BUSHING

1шт.

25

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

3/4-10 X 1-3/4 C

1шт.

26

495-21081

WASHER,3/4"

1шт.

27

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

28

425-1012

NUT,3/4"-10, G5

3/4-10 H

1шт.

29

6524870

ROLLER,41.28mm OD x 19mm L

- clutch (S.N. CFH0026001 thru CFH0120196)

1шт.

700124056

ROLLER

CLUTCH (S.N. CFH0120197 and later)

1шт.

30

6525042

ROLLER,41.28mm OD x 12.5mm L

- clutch

2шт.

31

100-1175

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

2шт.

32

6533012

SPACER

(S.N. CFH0026136 thru CFH0120196)

1шт.

700106397

SPACER

(S.N. CFH0120197 and later)

1шт.

33

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5 (S.N. CFH0026136 and later)

1шт.

34

6530307

SPROCKET ASSY.

STARWHEEL WA

1шт.

35

6530232

ARM

WA - trip

1шт.

36

6844823

CLAMP

- stop

1шт.

37

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

38

69732

SET

5/16-18 X 1-1/2 CPSQHSS

1шт.

39

38-11624

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

40

6530489

HUB

SPACER - hub

1шт.

41

6530471

RIM

SHIELD - wheel

2шт.

42

425-1010

NUT,5/8"-11, G5

1шт.

43

6530265

BRACKET

WA - starwheel

1шт.

44

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

45

700124056

ROLLER

- clutch

1шт.

46

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, #100, Ext, Crescent

2шт.

47

700137491

BOLT

- special, needle bearing

1шт.

48

52779

BRONZE BUSHING

BUSHING - bronze

1шт.

49

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle

1шт.

50

232-53112

FLANGE NUT,Flg, 3/4"-10

3/4-10 HFTLN GR/G

1шт.
