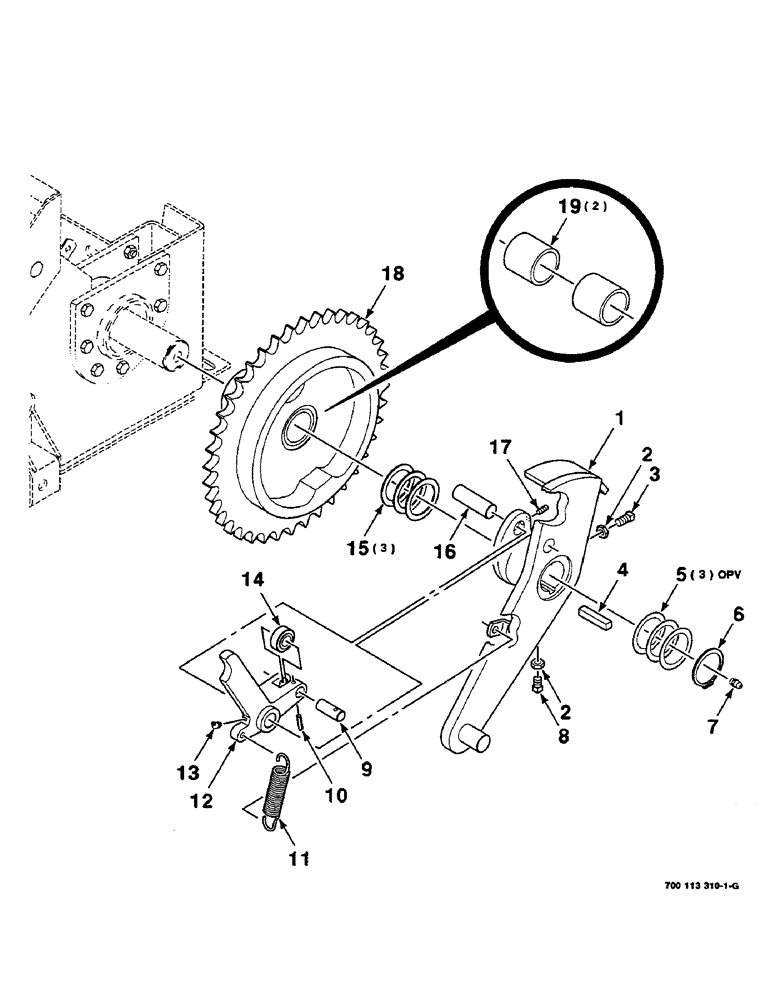

Запчасти Case IH 8580 (06-18) - DRIVE CLUTCH ASSEMBLY, KNOTTER CAM, PRODUCTION KNOTTER (14) - BALE CHAMBER

1

6845598

ARM

WA - clutch

1шт.

2

700710414

JAM NUT

1/2-13 HJN GR8 NP

2шт.

3

708081

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

1/2-13 X 1-1/4 CPSQHSS NP

1шт.

4

61879

KEY

1/2 X 1/2 X 2-1/2 STR KEY

1шт.

5

6523534

SHIM

3шт.

6

101-11215

SNAP RING,#215, 2.026", Ext

RING, SNAP, , Retaining #215, 2.026", Ext

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 STR ZERK

1шт.

8

85-816

SET SCREW,Sq Hd, 1/2"-13 x 1"

CRSQHSS 1/2-13 X 1 NP

1шт.

9

6524649

PIN

SHAFT - clutch

1шт.

10

135-358

GROOVED PIN,1/4" x 1 1/4", Type F

Pin, Grooved, 1/4" x 1 1/4", Type F

1шт.

11

758268

SPRING

- extension

1шт.

12

6523526

CLUTCH

ARM - clutch

1шт.

13

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

1шт.

14

6524623

ROLLER,41.28mm OD x 18.67mm L

1шт.

15

6523500

WASHER

BUSHING

3шт.

16

6523518

SHAFT

- clutch

1шт.

17

178-244

SET SCREW,Hex Soc, 5/16"-18 x 3/4"

5/16-18 X 3/4 HDPHSSS

1шт.

18

700113329

SPROCKET

- cam (Includes item 19)

1шт.

19

700122883

BRONZE BUSHING

BEARING - bronze

2шт.
