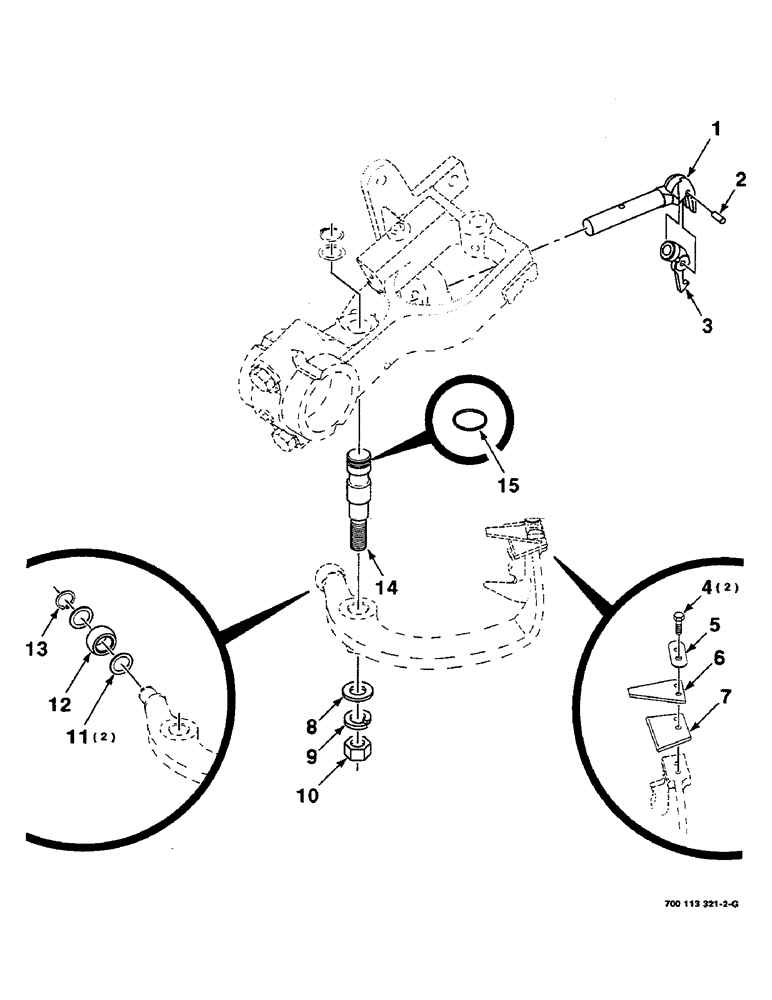

Запчасти Case IH 8580 (06-16) - KNOTTER HEAD ASSEMBLY, (CONT) (14) - BALE CHAMBER

1

700700968

KNOTTER

BILL HOOK ASSEMBLY

1шт.

2

37-138

DOWEL,3/16" x 1/2"

3/16 X 1/2 DOWEL PIN

1шт.

3

1712835

HOOK

BILL HOOK ASSEMBLY

1шт.

4

163-47

SCREW,Hex, #10 - 32 x 1/2", Gr 5

2шт.

5

6613624

WASHER, LOCK

TAB - locking

1шт.

6

700718710

KNIFE

- twine

1шт.

7

700102136

KNIFE

BASE - knife, twine

1шт.

8

495-11053

WASHER,1/2", SAE

Special 1/2", SAE

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

10

425-118

NUT,1/2"-20, G5

1/2-20 H

1шт.

11

7852593

SHIM,15mm ID x 21mm OD x 1mm Thk

- machinery

2шт.

12

700122799

ROLLER

- spherical

1шт.

13

7852577

RING, SNAP

RING - retaining

1шт.

14

6591580

SHAFT

- twine (Includes item 15)

1шт.

15

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk

1шт.
