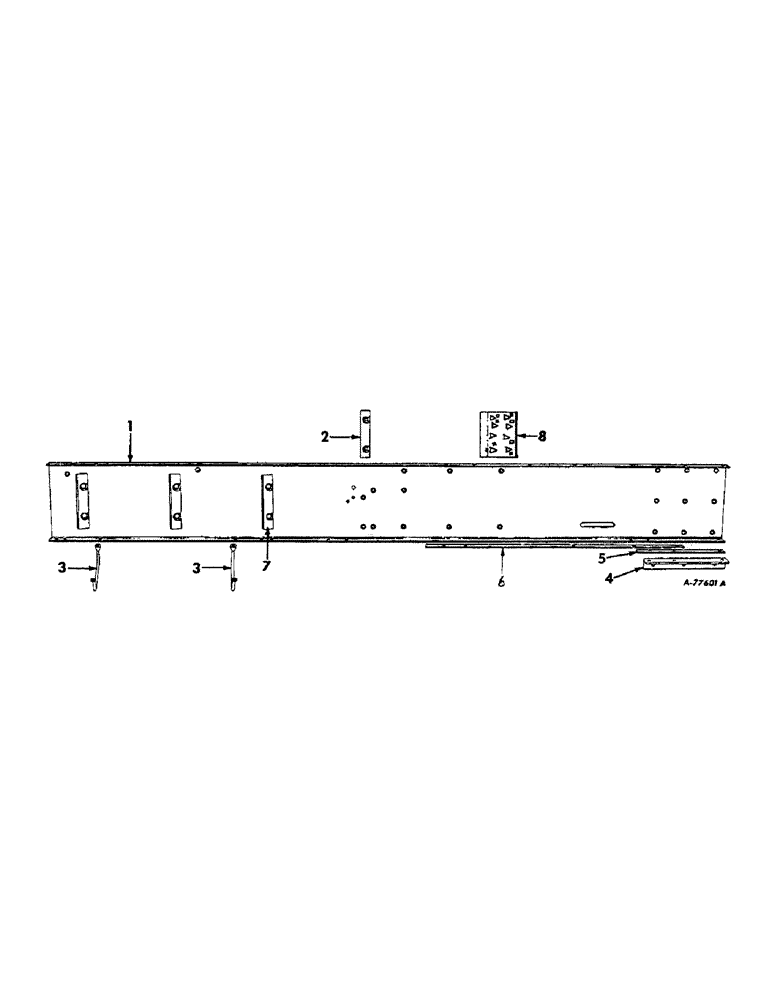

Запчасти Case IH 57 (A-09) - LEFT BALE CHAMBER SIDE

1

663335R3

SIDE, bale chamber left

1шт.

2

665347R1

WEDGE

hay retainer long, 3744M and below

2шт.

BOLT, 3/8-16 x 3/4 short sq-nk crg

2шт.

BOLT, 3/8-16 x 1 short sq-nk crg

2шт.

BOLT, 7/16-14 x 1-1/4 short sq-nk crg

1шт.

NUT, 3/8-16 hex.

4шт.

NUT, 7/16-14 hex.

1шт.

WASHER, 3/8 med lock

4шт.

WASHER, 7/16 med lock

1шт.

3

663451R1

ROD, bale chamber tie

4шт.

BOLT, 3/8-16 x 1 short sq-nk crg

8шт.

WASHER, 3/8 med lock

8шт.

4

663436R1

ANGLE, main drive support lower left

1шт.

BOLT, 7/16-14 x 1-1/4 short sq-nk crg

1шт.

NUT, 7/16-14 hex.

1шт.

WASHER, 7/16 med lock

1шт.

5

663417R1

EXTENSION, bottom plate left

1шт.

BOLT, 3/8-16 x 1 No. 3 plow

1шт.

BOLT, 3/8-16 x 1 short sq-nk crg

1шт.

NUT, 3/8-16 hex.

2шт.

WASHER, 3/8 med lock

2шт.

6

663432R1

RUNNER, plunger lower left

1шт.

BOLT, 3/8-16 x 1 No. 3 plow

1шт.

BOLT, 3/8-16 x 1-1/4 No. 3 plow

4шт.

BOLT, 3/8-16 x 1-1/2 No. 3 plow

1шт.

NUT, 3/8-16 hex.

6шт.

WASHER, 3/8 med lock

6шт.

7

656917R1

WEDGE, hay retainer

3шт.

BOLT, 3/8-16 x 1 short sq-nk crg

6шт.

NUT, 3/8-16 hex.

6шт.

WASHER, 3/8 med lock

6шт.

8

674705R1

PLATE, hay retainer, 3745N and up

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 znd sq-nk crg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT,3/8-16 x 1 znd sq-nk crg

2шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, 7/16-14 x 1-1/4 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 hex. lock

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.
