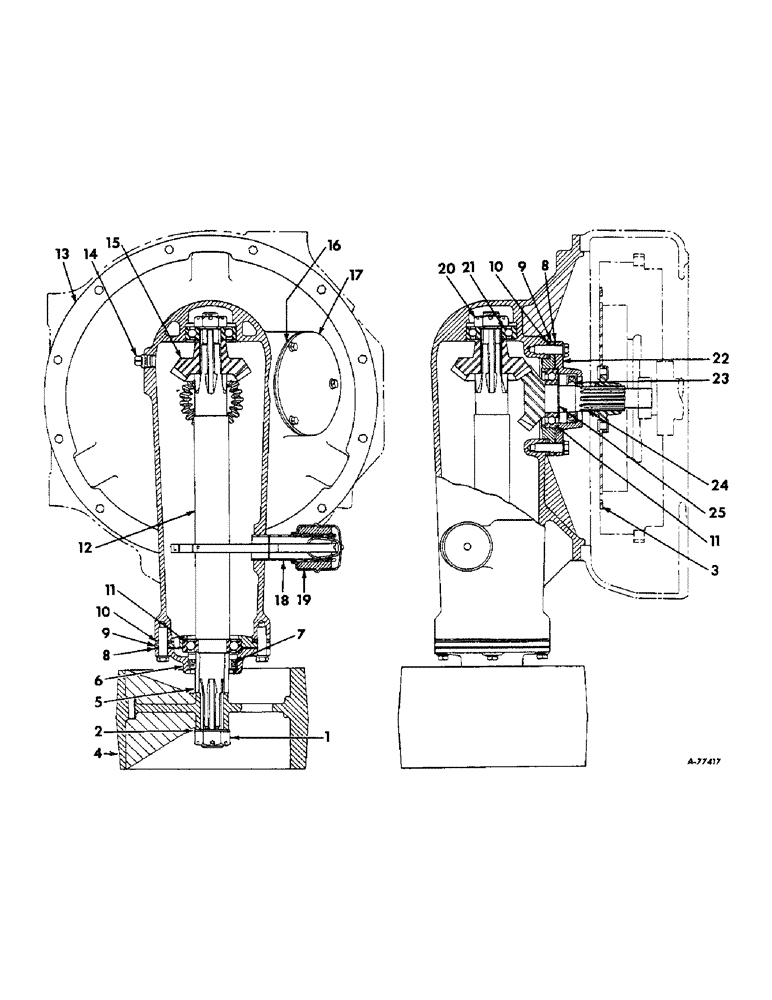

Запчасти Case IH 57 (A-76) - BELT PULLEY GEAR REDUCTION DRIVE UNIT

1

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14 hex. slt, belt pulley

1шт.

2

Q5036

WASHER

1-1/32 x 1-3/4 x 16 ga, belt pulley nut

1шт.

3

359208R91

DISC ASSY, drive

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

4

668711R1

PULLEY, belt

1шт.

5

279422R1

SPACER, belt pulley shaft

1шт.

6

270841R91

RETAINER W/SEAL, 272531R91 assy, belt pulley shaft brg

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

272531R91

SEAL

belt pulley shaft oil

1шт.

8

359201R1

GASKET, belt pulley drive pinion and shaft bearing cage

2шт.

9

359200R1

CAGE, belt pulley drive pinion and shaft bearing

2шт.

10

359197R1

SHIM, belt pulley drive pinion and shaft brg cage, light

1шт.

10

359198R1

SHIM, belt pulley drive pinion and shaft brg cage, medium

1шт.

10

359199R1

SHIM, belt pulley drive pinion and shaft brg cage, heavy

1шт.

11

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, belt pulley drive pinion and shaft

2шт.

12

279423R1

SHAFT, belt pulley

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

PIN, 1/8 x 1-3/4 cot.

1шт.

13

279421R11

HOUSING W/PLUG, 103867 and tube, 251361R1 assy, belt pulley, drive

1шт.

NLS

NO LONGER SERVICED

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

14

103867

PLUG

3/8 sq-hd pipe

1шт.

15

359205R1

GEAR, belt pulley shaft drive, 30T

1шт.

16

275548R1

GASKET, belt pulley drive housing cover

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

18

251361R1

SPACER

TUBE, oil filler & breather

1шт.

19

359196R91

GAGE ASSY, breather cap & oil level

1шт.

20

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 slt hex., belt pulley shaft bearing

1шт.

21

ST288

BEARING, BALL,25 mm ID x 62 mm OD x 17 mm

BEARING, belt pulley shaft, inner

1шт.

22

359207R91

RETAINER W/SEAL, 46976D assy, belt pulley drive pinion

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

46976D

SEAL

belt pulley drive pinion and shaft oil

1шт.

24

579442R1

PINION AND SHAFT, belt pulley drive

1шт.

25

48512D

RING

belt pulley drive pinion & shaft snap

1шт.

2752567R1

PRODUCT GRAPHIC

S, air cleaner instruction decal PRODUCT GRAPHICS DECALMANIAS

1шт.
