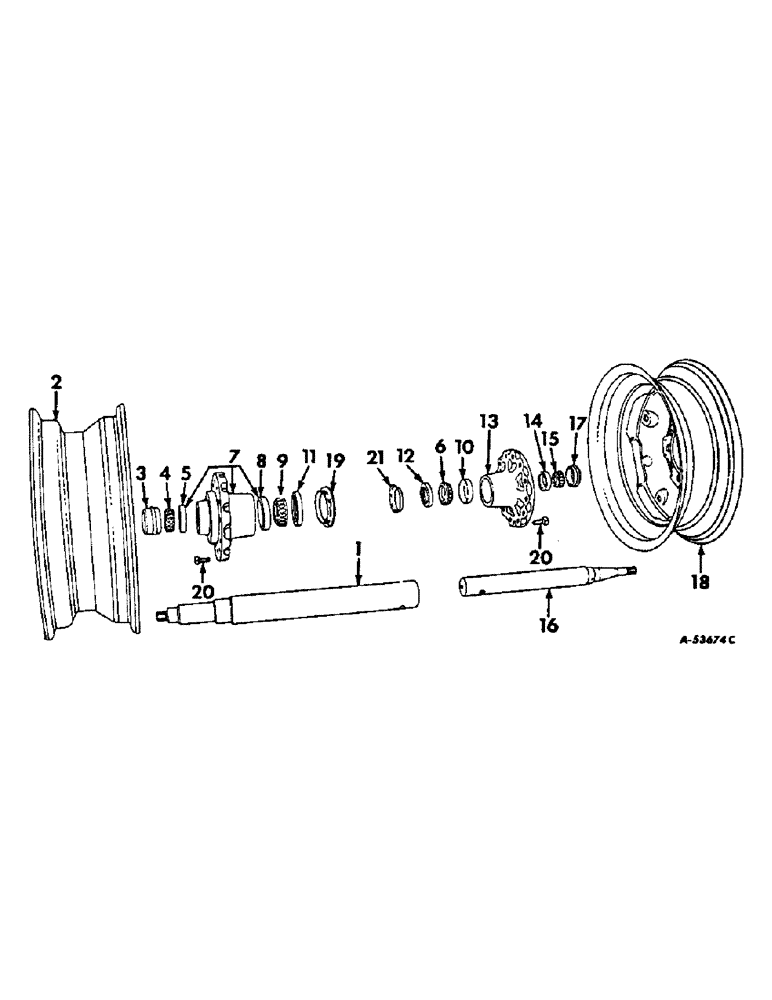

Запчасти Case IH 57 (A-08) - LEFT AND RIGHT WHEELS

1

667566R1

SPINDLE, left wheel

1шт.

BOLT, 1/2-13 x 7 hex-hd mach

1шт.

NUT, 1/2-13 hex.

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 hex-slt jam

1шт.

PIN, 1/8 x 1-1/4 cot.

1шт.

WASHER, 1/2 med lock

1шт.

615196R1

WASHER

29/32 x 1-3/4 x 10 ga

1шт.

2

495926R91

RIM ASSY, left wheel

1шт.

3

663906R1

CAP

left wheel hub

1шт.

4

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, left wheel outer cone

1шт.

5

651817R1

BEARING CUP

BEARING, left wheel outer cup

1шт.

6

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, right wheel inner cone

1шт.

7

465497R11

HUB W/BEARING CUPS, left wheel

1шт.

8

663558R1

BEARING CUP

BEARING, left wheel inner cup

1шт.

9

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, left wheel inner cone

1шт.

10

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Right wheel inner

1шт.

11

654674R91

OIL SEAL

left wheel grease

1шт.

12

667567R91

OIL SEAL

right wheel oil

1шт.

13

465494R1

HUB CAP

HUB, right wheel

1шт.

14

371883R1

BEARING CUP

Right wheel outer

1шт.

15

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Assy, Right wheel outer

1шт.

16

667565R1

SPINDLE, right wheel

1шт.

17730R1

BOLT, 1/2-13 x 4 hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt thin hex.

1шт.

121224

SUPPORT

3/32" x 1"

1шт.

137228

COTTER PIN,5/32" x 1 1/2"

PIN, SPLIT (COTTER), 5/32" x 1 1/2"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

366112R1

WASHER

25/32 x 1-1/4 x 11 ga C-Z

1шт.

17

663908R1

CAP

wheel hub

1шт.

18

518823R91

WHEEL

RIM, right wheel

1шт.

19

654675R1

RING

left wheel oil seal wear

1шт.

20

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

12шт.

21

667564R1

RING

hub oil seal wear

1шт.
