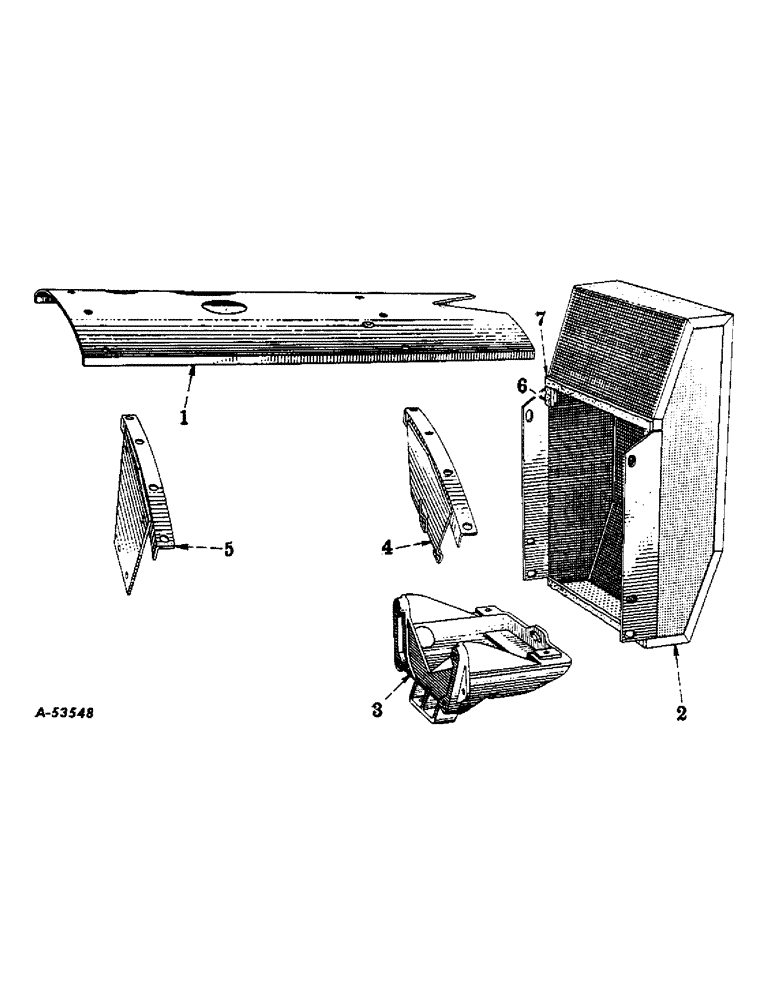

Запчасти Case IH 57 (A-75) - HOOD, SCREEN AND SUPPORTS

1

306743R1

HOOD, engine

1шт.

102635

NUT,3/8"-16, G5

6шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

95-11041

WASHER,3/8"

13/32 x 13/16 x 16 ga

6шт.

2

356206R41

SCREEN ASSY, radiator

1шт.

3

355839R2

SUPPORT, radiator & engine

1шт.

102639

NUT,5/8"-11, G5

3шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap

1шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

SCREW, 5/8-11 x 2-1/2 hex-hd cap

2шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 hex-hd cap

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

269448R21

SUPPORT ASSY, hood front

1шт.

5

278806R91

SUPPORT ASSY, hood rear

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

SCREW, 3/8-16 x 3/4 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

274933R1

FELT, radiator screen, short

2шт.

7

274932R1

FELT, radiator screen, long

2шт.
