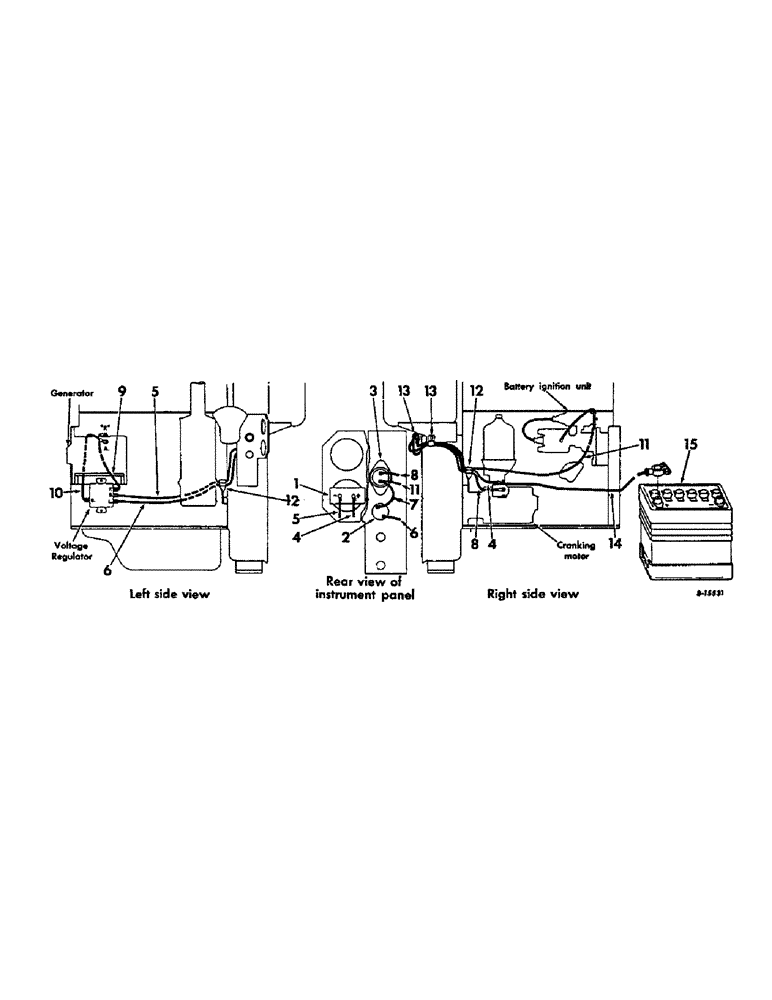

Запчасти Case IH 57 (A-74) - ELECTRIC STARTING, 12 VOLT ELECTRICAL SYSTEM

1

360053R92

INDICATOR

ASSY, charge

1шт.

2

379594R92

SWITCH

ASSY, ignition key

1шт.

365502R1

NUT

ignition key switch mounting

1шт.

375431R1

LOCK WASHER

ignition key swtich mounting nut

1шт.

3

366317R93

SWITCH

ASSY, push button starting

1шт.

3

366317R93GV

CONTROL

Value, Control Switch

1шт.

120611

NUT,#10 - 32

10-32 C-Z sq

2шт.

132903

ADAPTER

SCREW, 10-32 x 7/16 C-Z slt-rd-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

4

391617R91

CABLE ASSY, magnetic switch to charge indicator

1шт.

5

391615R91

CABLE ASSY, charge, indicator to voltage regulator bat. terminal

1шт.

7

376869R91

CABLE

ASSY, key switch to push button switch

1шт.

8

391618R91

CABLE ASSY, push button switch to magnetic switch

1шт.

9

391613R91

CABLE ASSY, voltage regulator F terminal to generator F terminal

1шт.

10

391614R91

CABLE ASSY, generator A terminal to voltage regulator gen terminal

1шт.

11

391619R91

CABLE ASSY, push button, Serial Range: switch-coil

1шт.

12

370820R1

CLIP

cable

2шт.

13

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable

2шт.

14

671088R91

CABLE ASSY, battery to solenoid switch

1шт.

15

387258R91

BATTERY, Prestolite 2005X, 12 volt

1шт.
