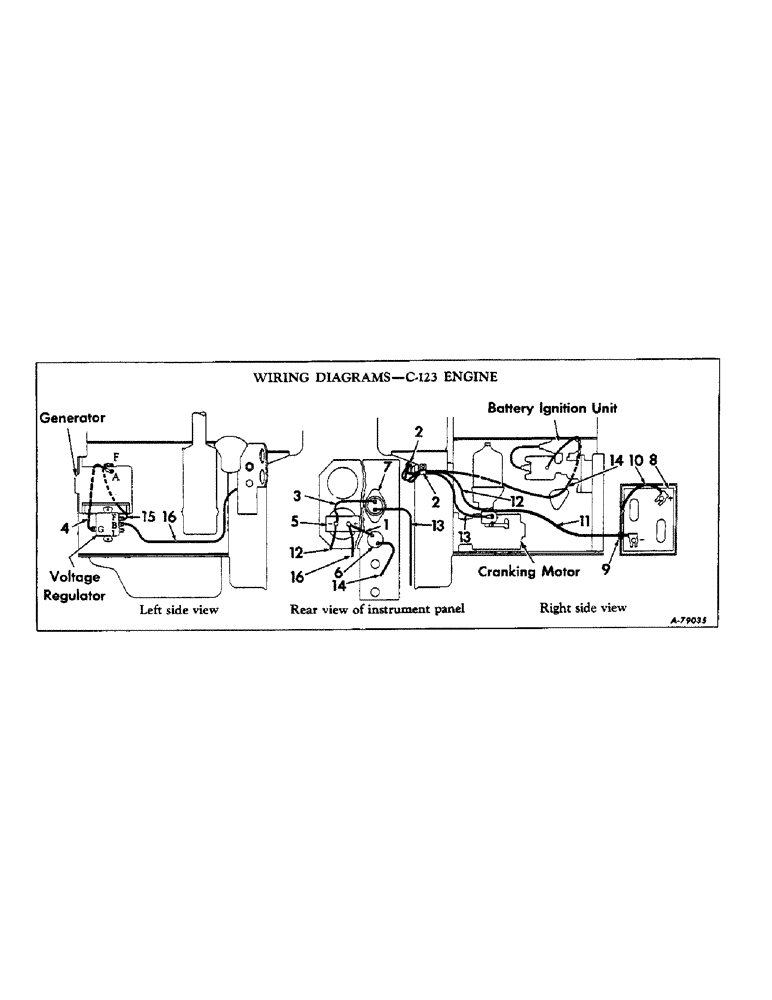

Запчасти Case IH 57 (A-73) - ELECTRIC STARTING, 6 VOLT ELECTRICAL SYSTEM

1

357929R92

ELECTRIC CABLE

CABLE ASSY, ammeter to ignition switch

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable

2шт.

3

357929R92

ELECTRIC CABLE

CABLE ASSY, starting, Serial Range: switch-ammeter

1шт.

4

272404R91

CABLE ASSY, generator, A, terminal to regulator, gen, terminal

1шт.

5

269467R92

INDICATOR

AMMETER ASSY

1шт.

6

62801DC

SWITCH

ASSY, battery ignition

1шт.

221439

SPACER, battery ignition switch

1шт.

7

366317R93

SWITCH

ASSY, push button starting

1шт.

7

366317R93GV

CONTROL

Value, Control Switch

1шт.

120611

NUT,#10 - 32

10-32 cd or zn-pltd sq

2шт.

132903

ADAPTER

SCREW, 10-32 x 7/16 cd or zn-pltd slt-rd-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

8

355196R93

BATTERY, Prestolite 1110Z, 6 volt

1шт.

9

52118D

GROMMET

battery box

1шт.

10

69510DA

CABLE

ASSY, Serial Range: battery-ground

1шт.

11

663457R91

CABLE ASSY, battery to solenoid switch

1шт.

12

359348R92

CABLE ASSY, solenoid, Serial Range: switch-ammeter

1шт.

13

46886DA

CABLE ASSY, solenoid switch to starting switch

1шт.

14

358110R92

CABLE ASSY, ignition, Serial Range: switch-coil

1шт.

15

272349R91

CABLE ASSY, generator, F, terminal to regulator, F terminal

1шт.

16

272405R91

CABLE ASSY, regulator, BAT., Serial Range: terminal-ammeter

1шт.
