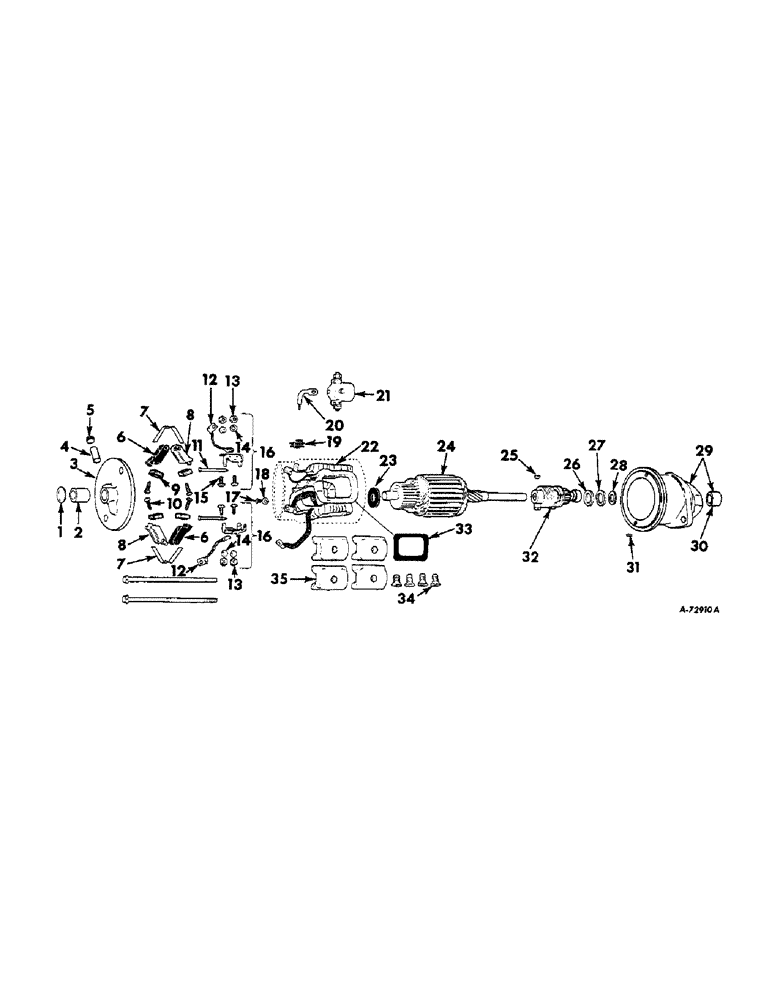

Запчасти Case IH 57 (A-72) - CRANKING MOTOR, DELCO REMY, 12 VOLT

1107738

MOTOR ASSEMBLY, cranking, 662648R91, 12 volt

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

1

810819

PLUG

end

1шт.

2

1872678

BUSHING

commutator end

1шт.

3

1940385

FUNNEL

FRAME ASSEMBLY, commutator end, composed of, (1) bushing 1872678, (1) frame (NSS), (1) plug 453465, (1) plug 810819, (1) wick 1919851

1шт.

4

1919851

WICK

end frame

1шт.

5

453465

PLUG, end frame pipe

1шт.

6

1926618

HOLDER

brush insulated

2шт.

7

1926622

VALVE SPRING

SPRING, brush

2шт.

8

1926617

BRUSH HOLDER

HOLDER, brush ground

2шт.

9

1906945

COMMUTATOR BRUSH

BRUSH

4шт.

10

1926648

SCREW, brush attaching

4шт.

11

1926600

PIN

support attaching

2шт.

12

1926605

ELECTRICAL WIRE

LEAD, brush ground

2шт.

13

120361

NUT,Hex Mach Screw, #10 - 24

Support attaching screw #10-24

4шт.

14

120217

LOCK WASHER,#10

WASHER, LOCK, , Support attaching screw #10

4шт.

15

NLS

NO LONGER SERVICED

SCREW, support attaching

4шт.

16

1928015

BRACKET

KIT, brush holder support

2шт.

17

1917084

SCREW

field lead, Serial Range: attaching-connector

1шт.

18

131183

WASHER, field lead attaching to connector screw lock

1шт.

19

1926604

GROMMET, connector

1шт.

20

1935314

CONNECTOR, switch

1шт.

21

1467

SWITCH

ASSEMBLY, solenoid

1шт.

1917084

SCREW

SWITCH ATTACHING SCREW

2шт.

22

1928969

FORK

FIELD COIL ASSEMBLY

1шт.

23

833602

WASHER

commutator end packing

1шт.

24

1935588

ARMATURE

1шт.

25

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

26

809815

WASHER

drive end space, 5/8 x 1-1/16 x 1/16

1шт.

27

1849774

WASHER

drive end space, 5/8 x 1-1/16 x 3/32

1шт.

28

1853917

WASHER, drive end thrust

1шт.

29

1945564

HOUSING ASSEMBLY, drive end

1шт.

30

810620

BUSHING

drive end housing

1шт.

31

809593

PIN

drive end dowel

1шт.

32

1882486

DRIVE

ASSEMBLY, motor

1шт.

33

1927853

FOAM INSULATION

INSULATOR, field coil

4шт.

34

1913960

SCREW

pole shoe

4шт.

35

1926616

SHOE

pole

4шт.
