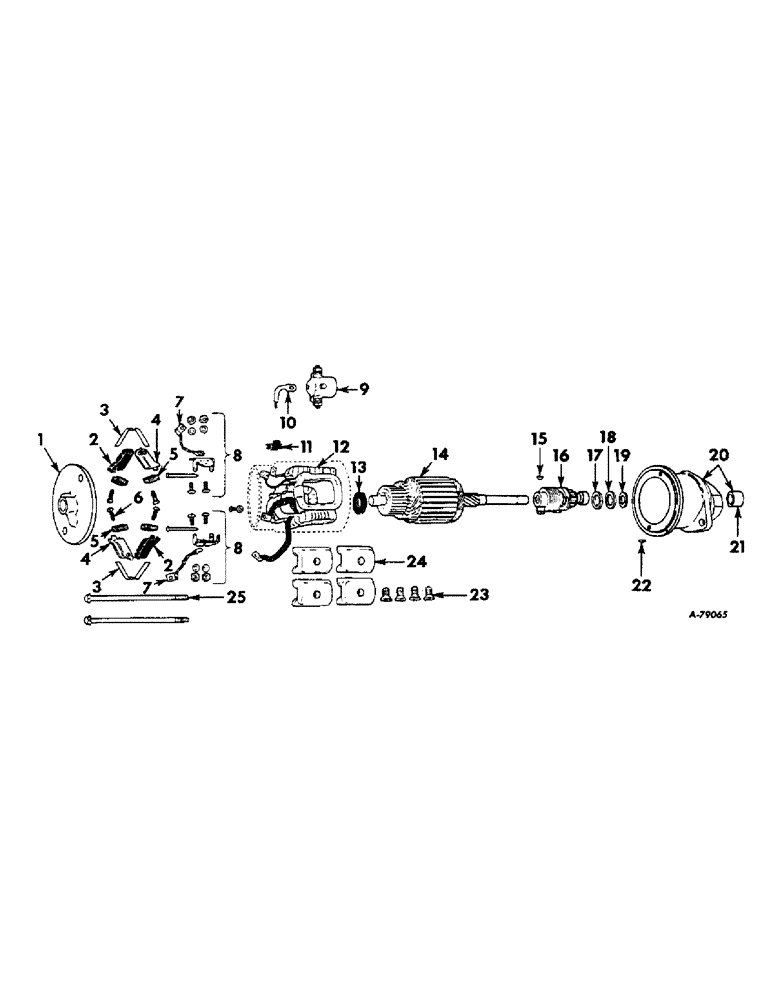

Запчасти Case IH 57 (A-71) - CRANKING MOTOR, DELCO REMY, 6 VOLT

1107490

MOTOR ASSY, cranking, 356726R92, 6 volt

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

1

1928966

FRAME

commutator end

1шт.

2

1926618

HOLDER

insulated brush

2шт.

3

1926622

VALVE SPRING

SPRING, brush

2шт.

4

1926617

BRUSH HOLDER

HOLDER, ground brush

2шт.

5

1906966

BRUSH

4шт.

6

1926648

SCREW, brush attaching

4шт.

7

1926605

ELECTRICAL WIRE

LEAD, ground brush

2шт.

8

1928015

BRACKET

KIT, brush holder support

2шт.

9

1465

SWITCH

ASSY, solenoid

1шт.

1916529

SCREW

switch attaching

2шт.

10

1935314

CONNECTOR, switch

1шт.

11

1926604

GROMMET, in field frame

1шт.

12

1959303

FIELD COIL ASSY, 4 coils

1шт.

13

833602

WASHER

commutator end space

1шт.

14

818002

ARMATURE

1шт.

15

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

16

1882486

DRIVE

ASSY, motor

1шт.

17

809815

WASHER

drive end space, 5/8 x 1-1/16 x 1/16

1шт.

18

1849774

WASHER

drive end spacer, 5/8 x 1-1/16 x 3/32

1шт.

19

833602

WASHER

drive end space, .563 x 63/64 x 1/16

1шт.

20

1945564

HOUSING ASSY, drive end

1шт.

21

810620

BUSHING

drive end housing

1шт.

22

809593

PIN

drive end dowel

1шт.

23

1881869

SCREW

pole shoe

4шт.

24

810601

SHOE, pole

4шт.

25

1926625

BOLT

thru

2шт.
