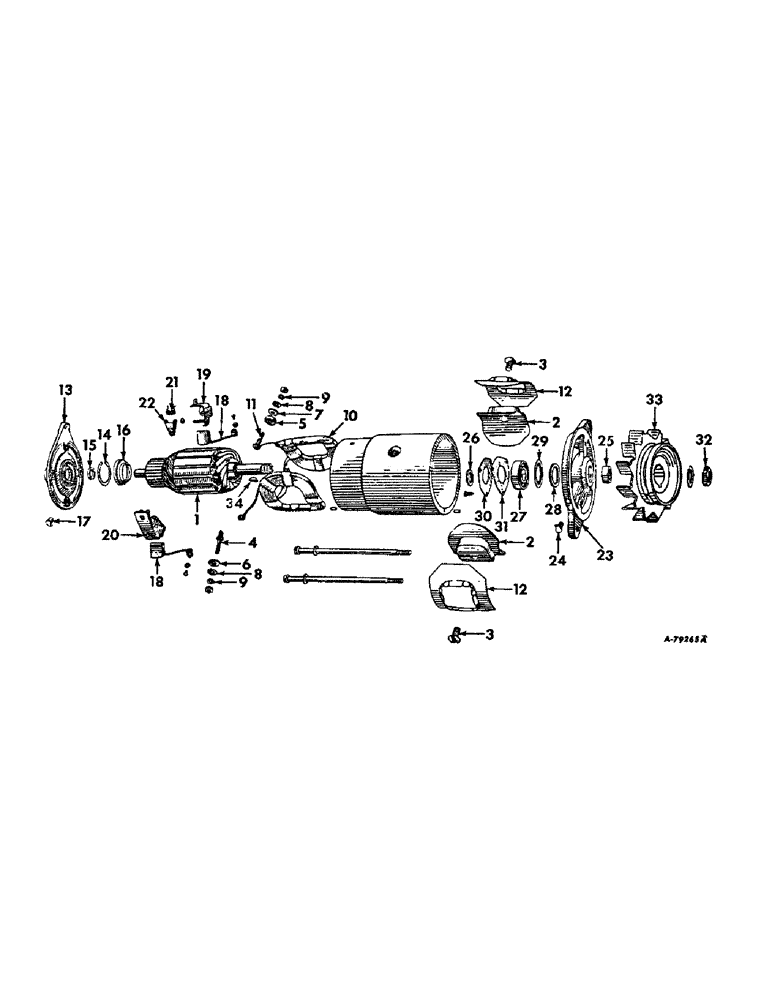

Запчасти Case IH 57 (A-70) - GENERATOR, DELCO REMY, 12 VOLT

1100401

GENERATOR ASSY, 319622R91, 12 VOLT

1шт.

1

1928952

ARMATURE

1шт.

2

1914618

SHOE, pole

2шт.

3

1843646

SCREW

pole shoe

2шт.

4

1921369

STUD

terminal armature

1шт.

225-14112

NUT,#12-24

12-24 C-Z hex. mach screw

1шт.

5

1885090

BUSHING

field terminal insulating

1шт.

6

1921362

BUSHING

armature terminal insulating

1шт.

7

1858753

WASHER

terminal stud insulating

1шт.

8

1881409

WASHER

terminal stud

2шт.

9

1904661

LOCK WASHER

WASHER, field terminal stud lock

2шт.

10

1923625

COIL ASSY.

COIL ASSY, field

1шт.

11

1921860

STUD

terminal field

1шт.

225-14112

NUT,#12-24

12-24 C-Z hex. mach screw

1шт.

12

1914491

INSULATOR, field coil

2шт.

13

1951512

HOUSING

FRAME ASSY, commutator end, composed of (1) dowel 809062, (1) frame (NSS), (1) oiler 1880635, (1) retainer 1947697, (1) seal 1945697, (1) wick 1947350

1шт.

14

1947350

WICK

commuator end oil

1шт.

15

1945697

GUARD ASSY.

SEAL, commutator end oil

1шт.

16

1953202

RETAINER, commutor end oil seal

1шт.

17

1880635

OILER

ASSY, commutator end

1шт.

18

1932506

BRUSH, COMMUTATOR

BRUSH

2шт.

19

1922288

HOLDER

PACKAGE, ground brush holder

1шт.

225-14112

NUT,#12-24

No. 12-24 C-Z hex. mach screw

1шт.

132979

SCREW, No. 12-24 x 5/8 C-Z slt-rd-hd mach

1шт.

131184

CONNECTING LINK

WASHER, No. 12 C-Z med lock

1шт.

20

1922289

HOLDER

PACKAGE, insulated brush holder

1шт.

225-14112

NUT,#12-24

No. 12-24 C-Z hex. mach screw

1шт.

132979

SCREW, No. 12-24 x 5/8 C-Z slt-rd-hd mach.

1шт.

131184

CONNECTING LINK

WASHER, No. 12 C-Z med lock

1шт.

21

1916324

VALVE SPRING

SPRING, brush

2шт.

22

1878183

ARM

brush

2шт.

23

1871693

FRAME W/OILER, pin and wick, drive end

1шт.

24

1880641

OILER

ASSY, drive end

1шт.

1823551

WICK, oiler

1шт.

25

1858603

BUSHING

COLLAR, drive end space

1шт.

26

809945

BUSHING

WASHER, drive end space

1шт.

27

907503

BEARING

drive end ball

1шт.

28

809961

FELT

WASHER, drive end felt

1шт.

29

819104

WASHER

PLATE, drive end felt retainer

1шт.

30

1911263

LARGE PLATE

PLATE, drive end retainer

1шт.

31

1912008

FELT

GASKET, drive end and retainer plate

1шт.

32

1911324

NUT

drive end shaft

1шт.

33

PULLEY, generator, see generator and connections section

1шт.

34

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.
