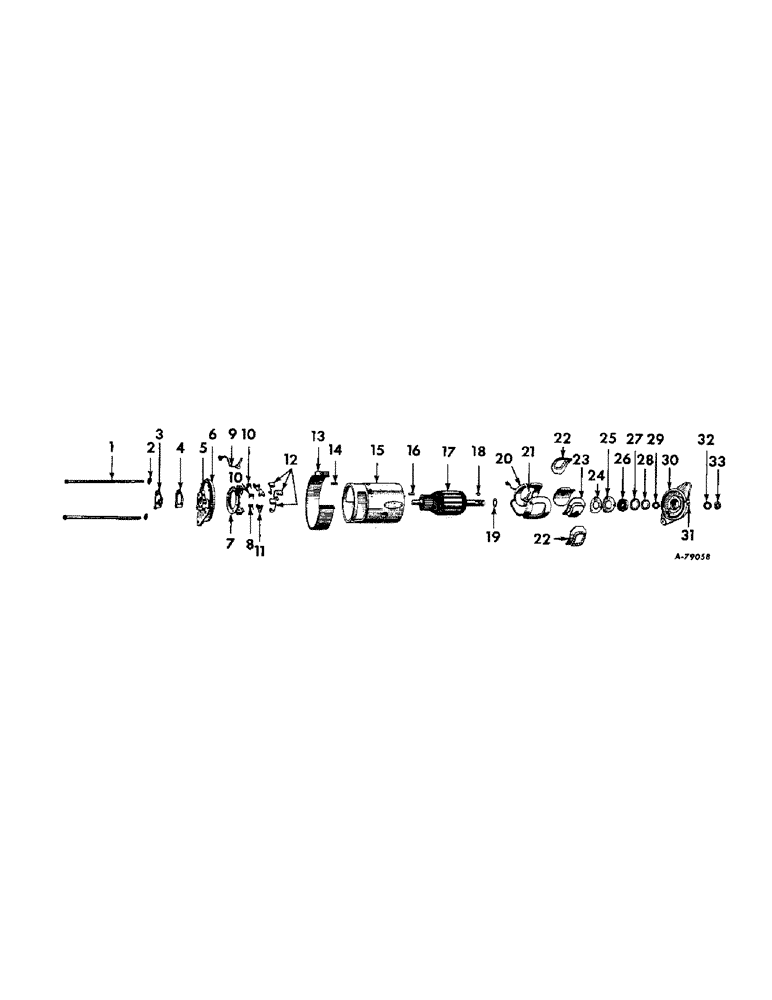

Запчасти Case IH 57 (A-69) - GENERATOR, DELCO REMY, 6 VOLT

1100501

GENERATOR ASSY, 354237R91, 6 volt

1шт.

103821A1R

REMAN-GENERATOR

Generator 6V

1шт.

103821A1C

CORE-GENERATOR

Return Part Number

1шт.

87497945R

REMAN-ALTERNATOR

Kit to convert reman generator 103821R to an alternator. Kit includes: instruction sheet, hardware kit, 12 v. resistor ballast, wire harness, mounting brkt., tension brkt., reman alternator 12 volt 63 amp w/pulley & regulator.

1шт.

103821A1C

CORE-GENERATOR

Return Part Number

1шт.

1

815018

BOLT, thru

2шт.

2

120368

NUT,5/16"-24, G5

WASHER, thru bolt lock

2шт.

3

820524

PLATE, commutator end frame cover

1шт.

1886496

SCREW, cover plate

3шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

3шт.

4

817220

GASKET

cover plate

1шт.

5

1880635

OILER

ASSY, commutator end frame

1шт.

804076

WICK

oiler

1шт.

6

1913564

FRAME

ASSY, commutator end, composed of (1) bushing (NSS), (1) frame (NSS), (1) oiler 1880635, (1) pin 809062, (1) plug 1911097, (1) wick 804076

1шт.

7

1913737

PLATE ASSY, brush

1шт.

8

1850760

SPRING, main brush

2шт.

9

1858754

STUD

POLE ASSY, armature terminal

1шт.

1885090

BUSHING

terminal stud insulating

1шт.

225-14112

NUT,#12-24

No. 12-24 cd or zn-pltd hex.

2шт.

1858751

STUD

armature terminal

1шт.

1881409

WASHER

terminal stud

1шт.

1858753

WASHER

terminal stud insulating

1шт.

1904661

LOCK WASHER

WASHER, terminal stud lock

2шт.

10

1850767

SPRING

third brush

1шт.

11

1850759

HOLDER, brush

3шт.

1857412

WASHER, brush holder space

3шт.

12

1933144

PACKAGE

BRUSH PACKAGE

1шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

No. 6-32 x 1/4 cd-pltd slt-rd-hd mach

3шт.

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER, brush screw attaching

3шт.

13

1872638

BAND

W/NUT AND SCREW, cover

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

No. 10-32 x 1-1/4 cd-pltd slt-rd-hd mach

1шт.

14

809062

PIN, commutator end frame dowel

1шт.

15

(Not serviced separately)

1шт.

16

809593

PIN

drive end frame dowel

1шт.

17

1913560

ARMATURE

1шт.

18

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

19

809945

BUSHING

WASHER, drive end space

1шт.

20

1913554

COIL ASSY, field

1шт.

21

1858751

STUD

field terminal

1шт.

1885090

BUSHING

terminal stud insulating

1шт.

225-14112

NUT,#12-24

No. 12-24 cd or zn-pltd hex.

2шт.

1881409

WASHER

terminal stud

1шт.

1858753

WASHER

terminal stud insulating

1шт.

1904661

LOCK WASHER

WASHER, terminal stud lock

2шт.

22

1914491

INSULATOR, field coil

2шт.

23

1914618

SHOE, pole

2шт.

1843646

SCREW

pole shoe

2шт.

24

1911263

LARGE PLATE

PLATE, ball bearing retainer

1шт.

1914580

SCREW

plate retainer

3шт.

1880781

WASHER

plate retainer screw

3шт.

25

1912008

FELT

GASKET, retainer plate

1шт.

26

954378

BALL BEARING

BEARING, drive end ball

1шт.

27

819104

WASHER

RETAINER, drive end felt washer

1шт.

28

809961

FELT

WASHER, drive end felt

1шт.

29

817224

SPACER, pulley

1шт.

30

1873830

FRAME ASSY, drive end

1шт.

31

1880641

OILER

ASSY, drive end frame

1шт.

32

804000

WASHER, drive end shaft nut

1шт.

33

1914308

NUT, drive end shaft

1шт.
