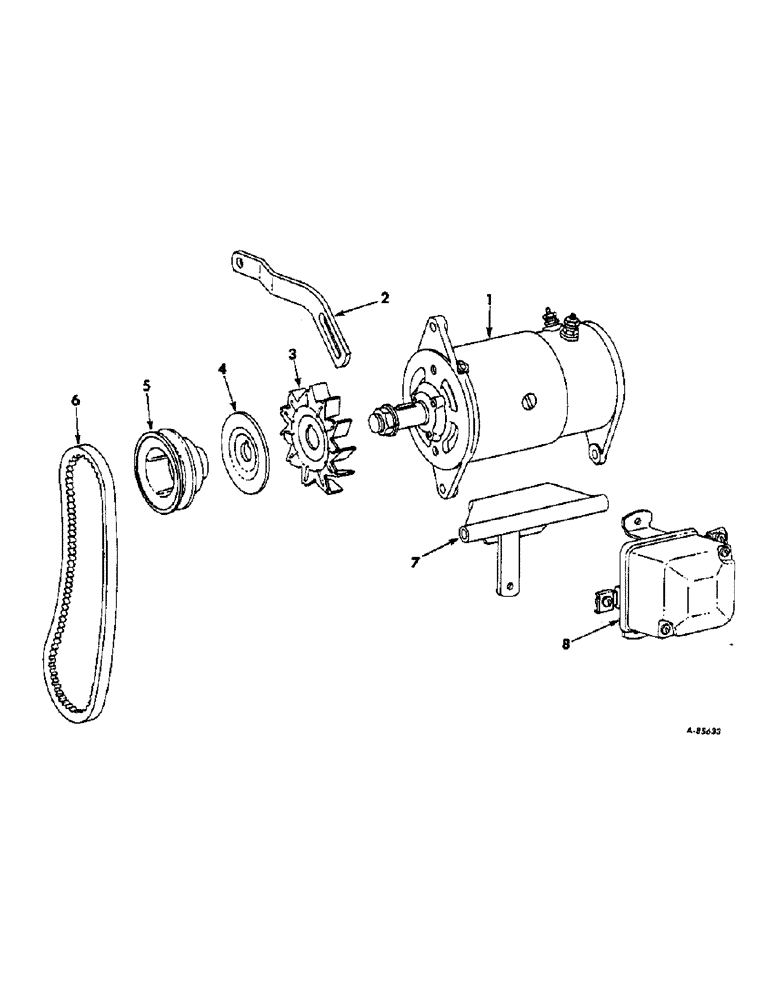

Запчасти Case IH 57 (A-68) - GENERATOR AND CONNECTIONS, 12 VOLT ELECTRICAL SYSTEM

1

1100401

GENERATOR ASSY, 319622R91 12 volt, for components see list of parts under details of generator

1шт.

121743

CHAIN,#12 - 24

12-24 C-Z hex. mach screw

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

17934R1

SCREW, 5/16-18 x 7-1/4 hex-hd cap

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

391612R1

BRACE, generator

1шт.

280185R1

SPACER

generator brace

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

1944437

FAN

generator

1шт.

4

368594R1

BAFFLE, generator fan

1шт.

5

368591R1

PULLEY

generator

1шт.

6

379629R1

V-BELT,0.50" W x 28.50" L

Generator 0.50" W x 28.50" L

1шт.

7

274460R11

BRACKET ASSY, generator mounting

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

SCREW, 3/8-16 x 10 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

1118999

REGULATOR

REGULATOR ASSY, voltage, 376122R91 12 volt, only serviceable items are cover, 1927980 and gasket, 1953202

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

SCREW, 1/4-20 x 1/2 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
