(A-67) - OIL PRESSURE INDICATOR AND CONNECTIONS

Запчасти Case IH 57 (A-67) - OIL PRESSURE INDICATOR AND CONNECTIONS

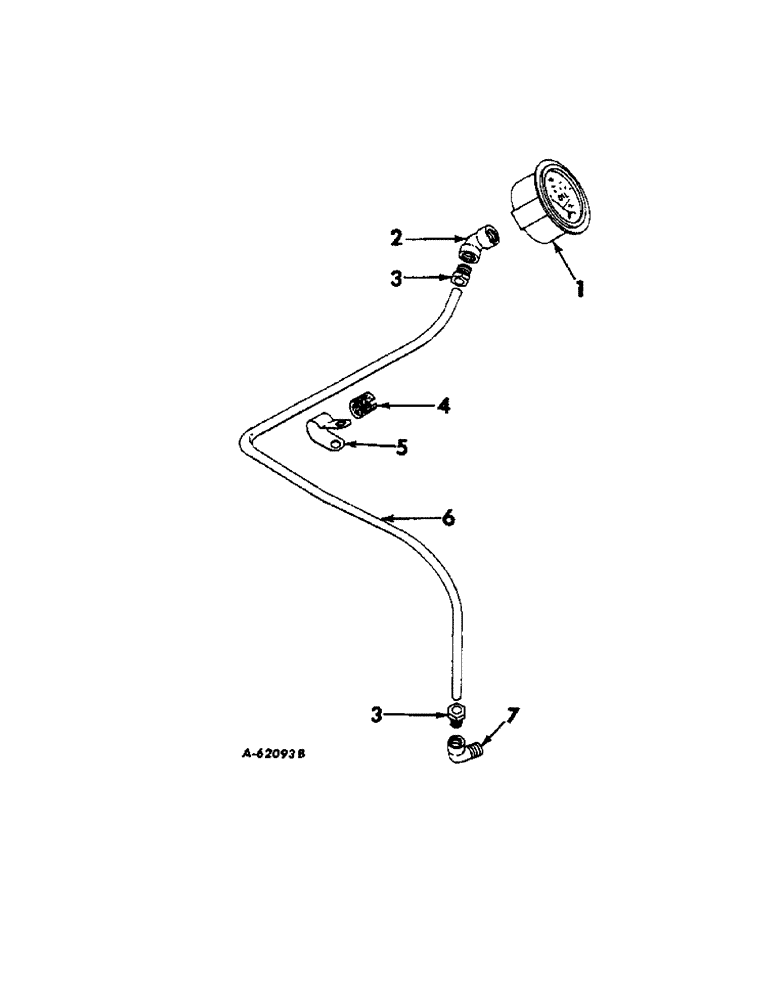

Схема запчастей Case IH 57 - (A-67) - OIL PRESSURE INDICATOR AND CONNECTIONS
4
3
3
1
5
2
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

393488R91

SWITCH

INDICATOR ASSY, oil pressure

1шт.

2

67869D

ELBOW,90 Degree x 1/8" NPT x 7/16"-24, Fem

7/16-24 90 deg hi-duty tube fitting female pipe

1шт.

3

19894R1

DOWEL

NUT, nylon insert tube

2шт.

4

23142D

FELT, oil pressure indicator tube clip

1шт.

5

27385D

CLIP, oil pressure indicator tube

1шт.

6

275106R1

TUBE, oil prssure indicator

1шт.

7

30402D

ELBOW,90 Degree x 1/8" NPT x 7/16"-24

1/4 male pipe

1шт.
