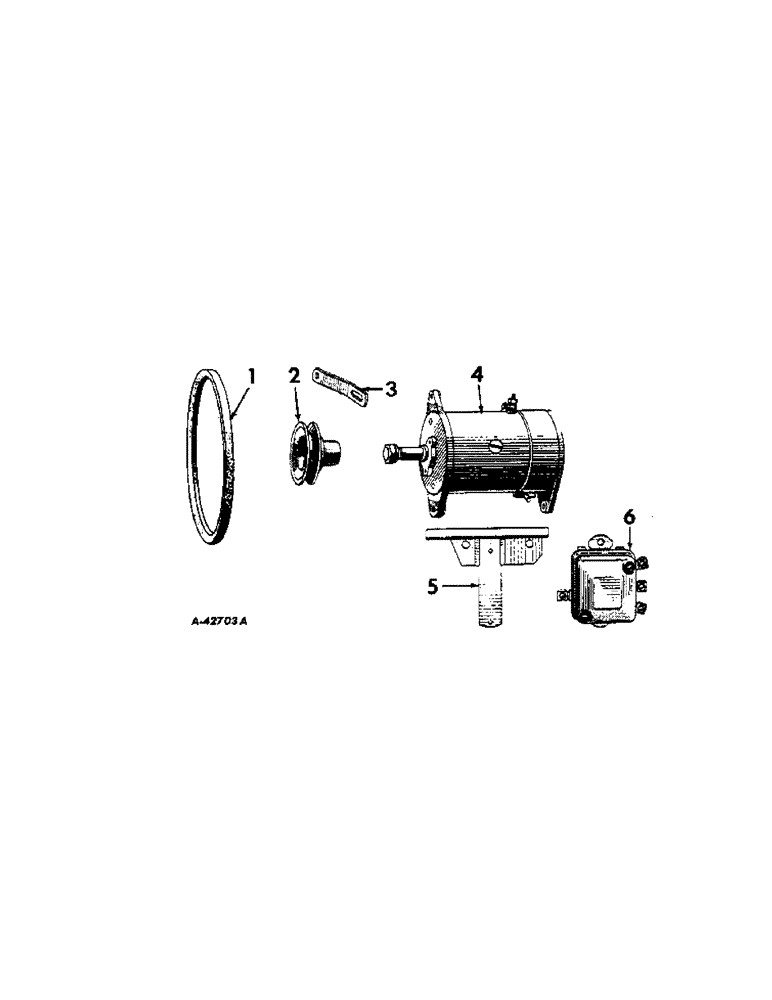

Запчасти Case IH 57 (A-67[A]) - GENERATOR AND CONNECTIONS 6 VOLT ELECTRICAL SYSTEM

1

49291D

V-BELT,0.53" W

Generator

1шт.

2

6812D

PULLEY

PULLEY, generator

1шт.

3

60714DA

SUPPORT

BRACE, generator

1шт.

280185R1

SPACER

SPACER, generator brace

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

1100501

SPARE PART GENERATOR ASSY, 354237R91, 6 volt, for components see list of parts under details of generator

1шт.

4

103821A1R

REMAN-GENERATOR

Generator 6V

1шт.

4

103821A1C

CORE-GENERATOR

Return Part Number

1шт.

4

87497945R

REMAN-ALTERNATOR

Kit to convert reman generator 103821R to an alternator. Kit includes: instruction sheet, hardware kit, 12 v. resistor ballast, wire harness, mounting brkt., tension brkt., reman alternator 12 volt 63 amp w/pulley & regulator.

1шт.

4

103821A1C

CORE-GENERATOR

Return Part Number

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16-18 hex.

1шт.

17934R1

SCREW, 5/16-18 x 7-1/4 hex-hd cap

1шт.

5

274460R11

SPARE PART BRACKET ASSY, generator

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

SCREW, 3/8-16 x 1 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

1119575

REGULATOR

REGULATOR ASSY, voltage, 376121R91, 6 volt, only serviceable items are cover, 1927980 & gasket, 1953902

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4-20 x 1/2 hex-hd mach

2шт.

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

2шт.
