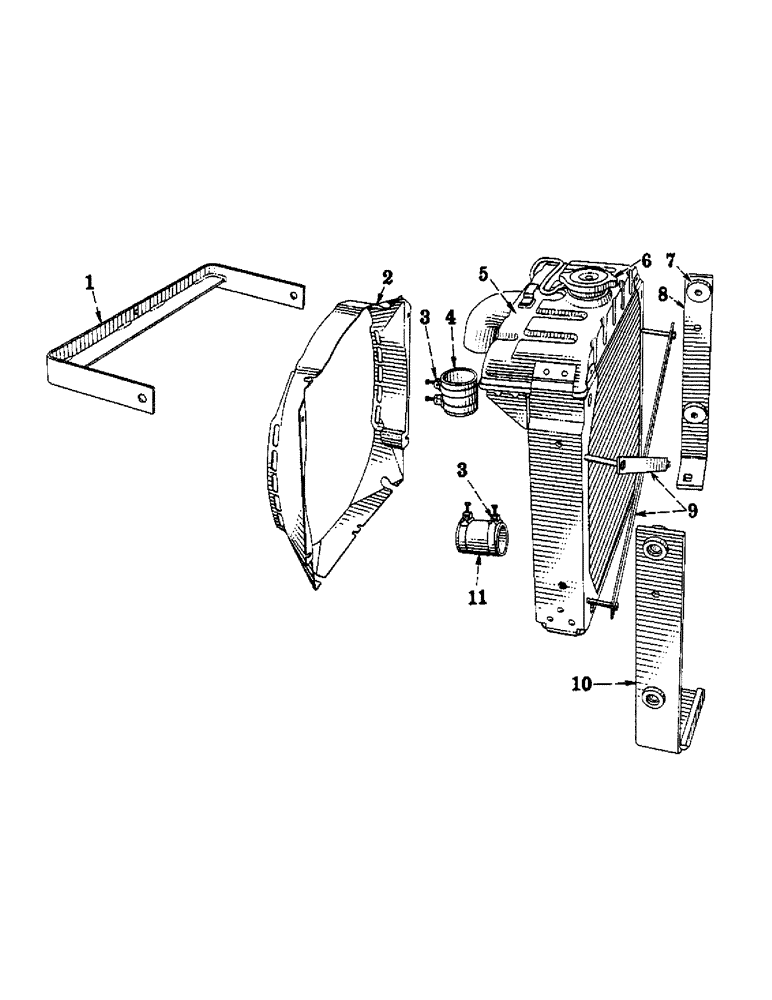

Запчасти Case IH 57 (A-66) - RADIATOR AND CONNECTIONS

1

271929R21

BRACE ASSY, radiator support

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

181425

BOLT,Hex, 1/2" - 20 x 3/4"

SCREW, 1/2-20 x 3/4 hex-hd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

353586R91

HOUSING ASSY, fan

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

4шт.

NLS

NO LONGER SERVICED

SCREW, 5/16-24 x 4 hex-hd cap

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, radiator hose

4шт.

4

271767R2

HOSE, radiator inlet

1шт.

5

276755R92

RADIATOR ASSY

1шт.

103867

PLUG

radiator drain

1шт.

352632R1

BOLT,Sq Nk, 7/16" - 20 x 1 1/8"

radiator support

2шт.

271505

BODY

7/16-20 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

6

393229R91

CAP

radiator pressure

1шт.

7

271928R1

GROMMET

MOUNT, radiator support rubber shock

4шт.

181377

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

SCREW, 3/8-24 x 1-3/4 hex-hd cap

4шт.

PO105341/2

WASHER, 15/32 x 1-1/2 x 11 ga

4шт.

8

271925R1

SUPPORT, radiator, LH

1шт.

9

272183R1

BRACE, radiator cross

2шт.

10

271926R1

SUPPORT, radiator, RH

1шт.

11

277149R1

HOSE, radiator outlet

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

95-11041

WASHER,3/8"

13/32 x 13/16 x 16 ga

1шт.
