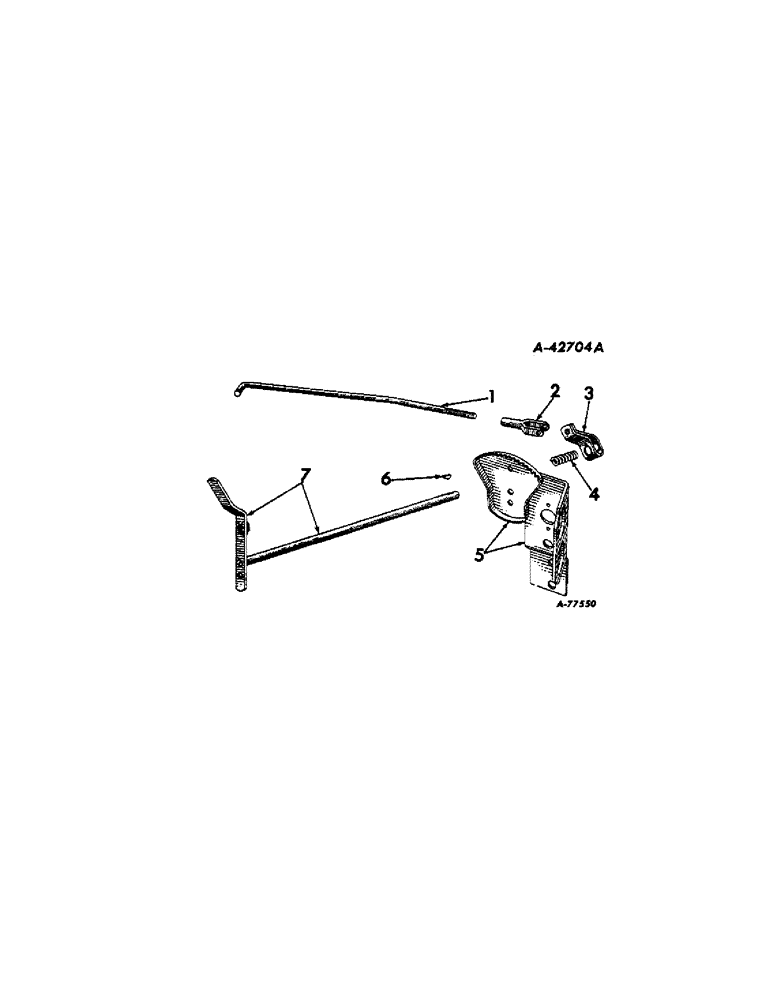

Запчасти Case IH 57 (A-66[A]) - INSTRUMENT PANEL AND GOVERNOR CONTROL RODS

1

359192R1

ROD, governor control, front

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex. jam

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x 16 ga

1шт.

2

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4-28 adj rod end

1шт.

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

3

359191R1

LEVER, governor control

1шт.

109084

NUT,1/4"-20, G5

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

352026R2

SPRING

governor control rod

1шт.

5

275105R11

PANEL ASSEMBLY, control

1шт.

17414R1

SCREW, 1/2-13 x 3/4 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

110731

KEY

3/32 x 5/8 Woodruff

4шт.

7

359188R91

HANDLE ASSY, governor control

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

95-11041

WASHER,3/8"

13/32 x 13/16 x 16 ga

1шт.
