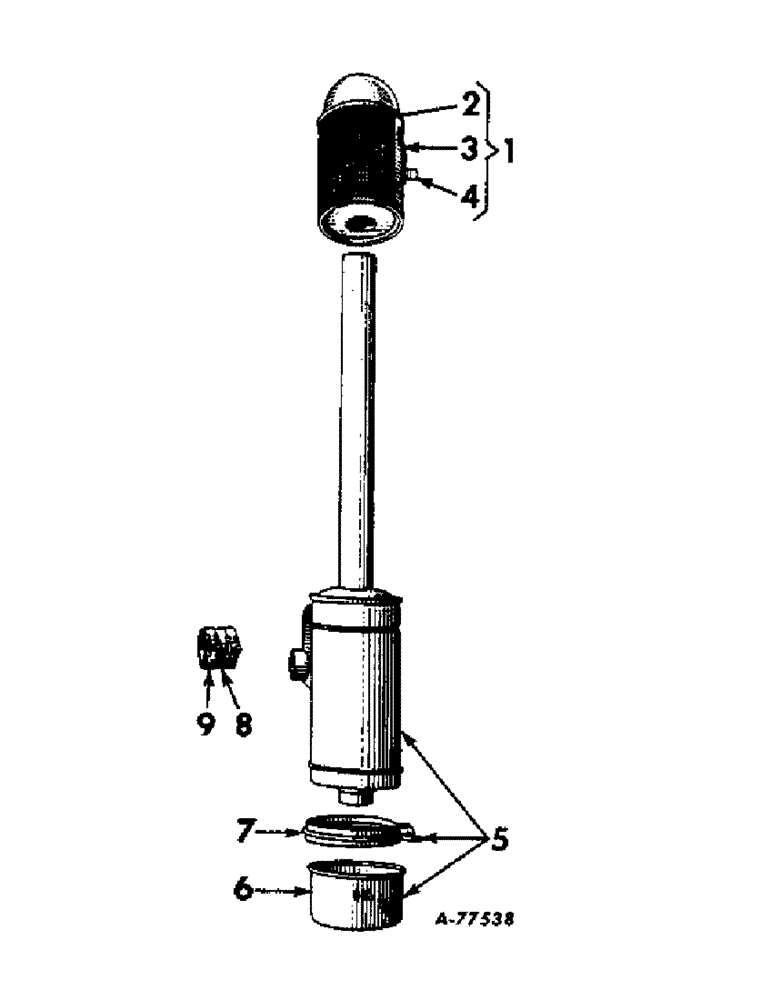

Запчасти Case IH 57 (A-65) - AIR CLEANER & CONNECTIONS

1

353410R92

RETAINER

PRE-SCREENER ASSY, air cleaner

1шт.

2

353637R91

SCREEN

SCREW W/CLIP, 353758R1 and two springs, 353639R1, pre-screener

1шт.

3

353639R1

VALVE SPRING

SPRING, screen lock tension

2шт.

4

353758R1

CLIP

screen lock tension spring

1шт.

5

366321R91

CLEANER

ASSY, air

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

6

352597R91

BOWL

CUP, oil

1шт.

7

66357DA

CLAMP

oil cup retaining

1шт.

8

366322R1

INTAKE AIR HOSE,1.62" ID x 1.56", SAE 20R1 Class R

Air Cleaner to Carburetor 1.62" ID x 1.56", SAE 20R1 Class R

1шт.

9

274087R91

HOSE CLAMP,1.50/2.38 Type F Worm

CLAMP, air cleaner to carburetor hose

2шт.
