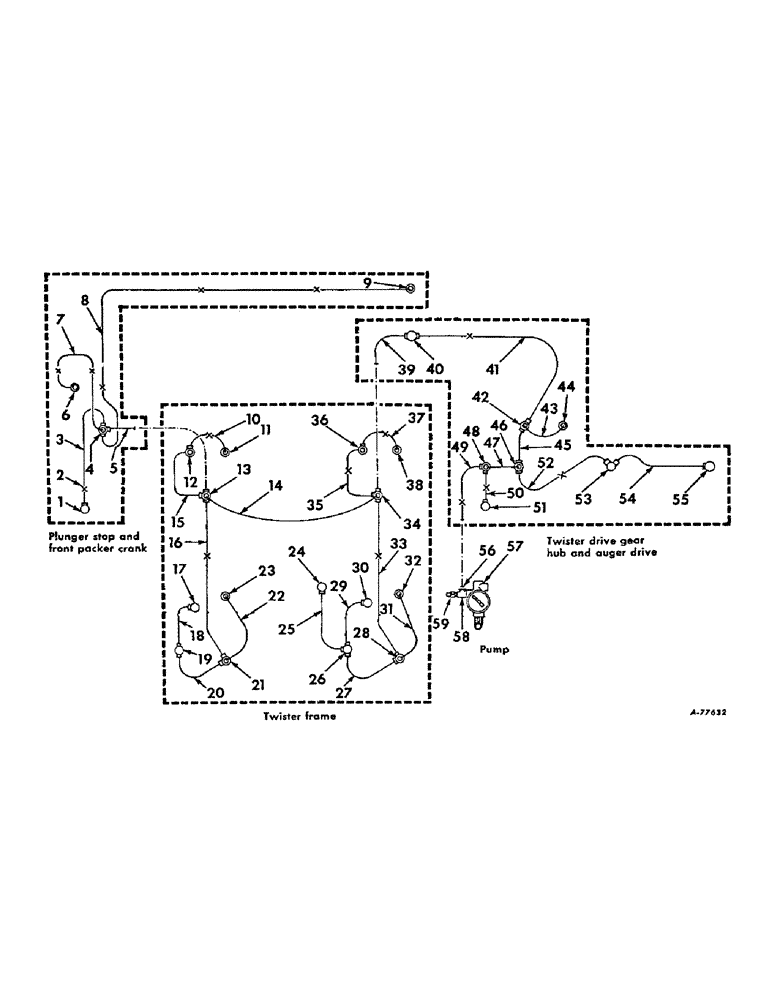

Запчасти Case IH 57 (A-62) - CENTRALIZED LUBRICATION, FOR WIRE BALERS, VALVES, TUBING, SLEEVES AND FITTINGS
№
Артикул
Название
Примечание
Количество
1
585857R91
VALVE ASSY, 90 deg terminating, needle pivot bearing
1шт.
2
668555R1
CLIP, 3/16 open
7шт.
166684
COVER PLATE
SCREW, 10-32 x 3/8 cd-pltd cr-rec rd-hd tap
7шт.
2
362120R1
CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type
CLILP, loom, for 3/8 bolt
9шт.
3
NYLON TUBING, lub, 22-1/2 in., see Note A
1шт.
4
668598R91
VALVE ASSY, top and tee, left twister shaft bearing
1шт.
4
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
5
NYLON TUBING, lub, 11 in., see Note A
1шт.
6
585856R91
VALVE ASSY, top terminating, plunger stop pivot
1шт.
6
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF, See Note A 1/8"-27 x .66 lg
1шт.
7
NYLON TUBING, lub, 34-1/2 in. see Note A
1шт.
8
NYLON TUBING, lub, 42 in., see Note A
1шт.
9
585856R91
VALVE ASSY, top terminating, front packer crank bearing
1шт.
9
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
10
NYLON TUBING, lub, 7 in., see Note A
1шт.
11
585854R91
VALVE ASSY, top terminating, lower left wire hook shaft
1шт.
11
586983R1
ADAPTER, 1/8-27 PTF x 90 deg angle
1шт.
11
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
12
588291R91
VALVE ASSY, 90 deg terminating, upper left wire hook shaft
1шт.
12
580256R1
ADAPTER,45 Degree, 1/8"-27
1/8-27 PTF x 45 deg angle
1шт.
12
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
13
668598R91
VALVE ASSY, top terminating, left wire twister frame
1шт.
13
580256R1
ADAPTER,45 Degree, 1/8"-27
1/8-27 PTF x 45 deg angle
1шт.
13
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
14
NYLON TUBING, lub, 19 in., see Note A
1шт.
15
NYLON TUBING, lub, 8 in., see Note A
1шт.
16
NYLON TUBING, lub, 10-1/2 in., see Note A
1шт.
17
585857R91
VALVE ASSY, 90 deg terminating, lower left wire holder shaft
1шт.
17
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
18
NYLON TUBING, 5-1/2 in., see Note A
1шт.
19
585861R91
VALVE ASSY, 180 deg, upper left wire holder shaft
1шт.
19
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
20
NYLON TUBING, lub, 7 in., see Note A
1шт.
21
668599R91
VALVE ASSY, top and 90 deg, lower left disc pinion shaft
1шт.
21
580256R1
ADAPTER,45 Degree, 1/8"-27
1/8-27 PTF x 45 deg angle
1шт.
21
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
22
NYLON TUBING, lub, 6-1/2 in., see Note A
1шт.
23
585854R91
VALVE ASSY, top terminating, upper left disc pinion shaft
1шт.
23
580256R1
ADAPTER,45 Degree, 1/8"-27
1/8-27 PTF x 45 deg angle
1шт.
23
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
24
585857R91
VALVE ASSY, 90 deg terminating, stripper actuator pivot
1шт.
24
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
25
NYLON TUBING, lub, 4 in., see Note A
1шт.
26
668600R91
VALVE ASSY, tee, upper right wire holder shaft
1шт.
26
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
27
NYLON TUBING, lub, 7 in., see Note A
1шт.
28
668599R91
VALVE ASSY, top and 90 deg, lower right disc pinion shaft
1шт.
28
580256R1
ADAPTER,45 Degree, 1/8"-27
1/8-27 PTF x 45 deg angle
1шт.
28
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
29
NYLON TUBING, lub, 5-1/2 in., see Note A
1шт.
30
585857R91
VALVE ASSY, 90 deg terminating, lower right wire holder shaft
1шт.
30
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
31
NYLON TUBING, lub, 6-1/2 in., see Note A
1шт.
32
585854R91
VALVE ASSY, top terminating, upper right disc pinion shaft
1шт.
32
580256R1
ADAPTER,45 Degree, 1/8"-27
1/8-27 PTF x 45 deg angle
1шт.
32
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
33
NYLON TUBING, lub, 10-1/2 in., see Note A
1шт.
34
668598R91
VALVE ASSY, top and tee, right wire twister frame
1шт.
34
580256R1
ADAPTER,45 Degree, 1/8"-27
1/8-27 PTF x 45 deg angle
1шт.
34
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
35
NYLON TUBING, lub, 8 in., see Note A
1шт.
36
588291R91
VALVE ASSY, 90 deg terminating, upper right wire hook shaft
1шт.
36
580256R1
ADAPTER,45 Degree, 1/8"-27
1/8-27 PTF x 45 deg angle
1шт.
36
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
37
NYLON TUBING, lub, 7 in., see Note A
1шт.
38
585854R91
VALVE ASSY, top terminating, lower right wire hook shaft
1шт.
38
586983R1
ADAPTER, 1/8-27 PTF x 90 deg angle
1шт.
38
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
39
NYLON TUBING, lub, 16 in., see Note A
1шт.
40
585862R91
VALVE ASSY, 180 deg, rear packer crank bearing
1шт.
40
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
41
NYLON TUBING, lub, 14-1/2 in., see Note A
1шт.
42
668731R91
VALVE ASSY, top and tee, right twister shaft bearing
1шт.
42
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
43
NYLON TUBING, lub, 7-1/2 in., see Note A
1шт.
44
585856R91
VALVE ASSY, top terminating, twister drive gear
1шт.
44
668734R91
ADAPTER ASSY, swivel
1шт.
44
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
45
NYLON TUBING, lub, 4-1/2 in., see Note A
1шт.
46
585865R91
VALVE ASSY, top and 180 deg, auger drive shaft
1шт.
46
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
47
NYLON TUBING, lub, 9 in., see Note A
1шт.
48
668599R91
VALVE ASSY, top and 90 deg, auger drive shaft
1шт.
48
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
49
NYLON TUBING, lub, 29 in., see Note A
1шт.
50
NYLON TUBING, lub, 19 in., see Note A
1шт.
51
585857R91
VALVE ASSY, 90 deg terminating, needle pivot bearing
1шт.
52
NYLON TUBING, lub, 26 in., see Note A
1шт.
53
668730R91
VALVE ASSY, 90 deg elbow, left auger relief and support bearing
1шт.
53
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
54
NYLON TUBING, lub, 47 in., see Note A
1шт.
55
585857R91
VALVE ASSY, 90 deg terminating, right auger relief and support bearing
1шт.
55
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
56
192159
SEAT BELT
CONNECTOR, 1/8-27 ball sleeve tube
1шт.
57
668621R91
PUMP, grease
1шт.
58
444253
TEE,1/8"-27 Fem x Male Run x Fem Br, Brass
1/8-27 automotive pipe
1шт.
59
585589R91
INDICTOR, pressure
1шт.
Выбрано товаров: 99
