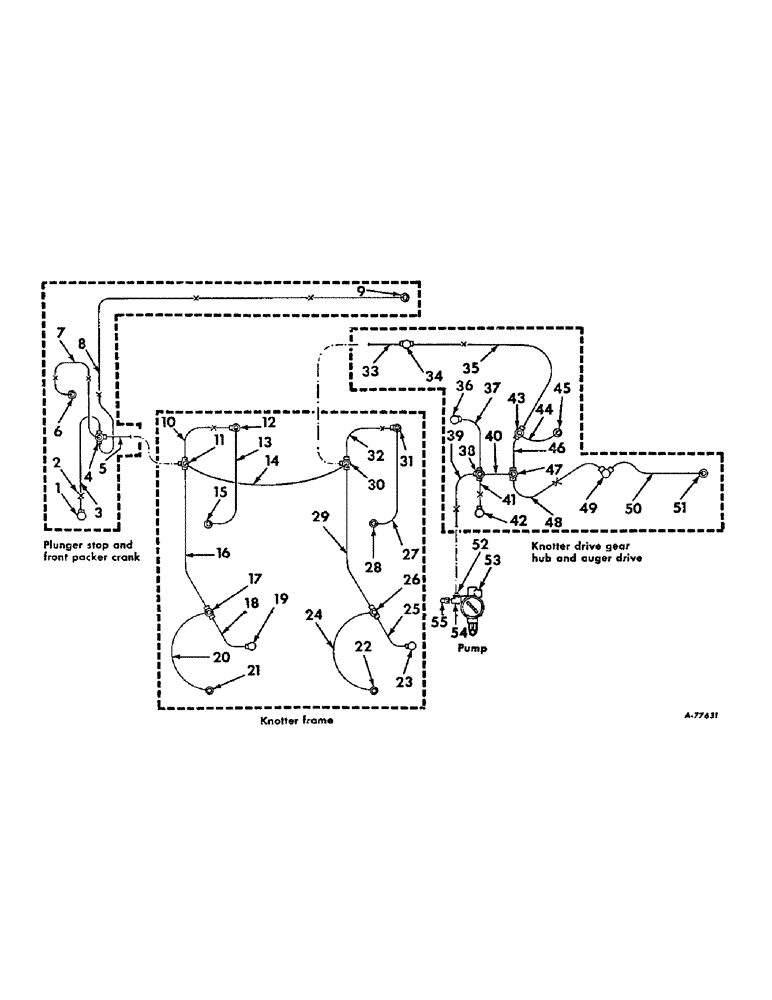

Запчасти Case IH 57 (A-60) - CENTRALIZED LUBRICATION, FOR TWINE BALERS, VALVES, TUBING, AND FITTINGS
№
Артикул
Название
Примечание
Количество
1
585857R91
VALVE ASSY, 90 deg terminating, needle pivot bearing
1шт.
2
668555R1
CLIP, 3/16 open
4шт.
166684
COVER PLATE
SCREW, 10-32 x 3/8 cd-pltd cr-rec rd-hd tap.
4шт.
2
362120R1
CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type
CLIP, loom, for 3/8 bolt
9шт.
3
NYLON TUBING, lub, 22-1/2 in., see Note A
1шт.
4
668598R91
VALVE ASSY, top and tee, left knotter shaft bearing
1шт.
4
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
5
NYLON TUBING, lub, 11 in., see Note A
1шт.
6
585856R91
VALVE ASSY, top terminating, plunger stop pivot
1шт.
6
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
7
NYLON TUBING, lub, 34-1/2 in., see Note A
1шт.
8
NYLON TUBING, lub, 42 in., see Note A
1шт.
9
585856R91
VALVE ASSY, top terminating, front packer crank bearing
1шт.
9
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
10
NYLON TUBING, lub, 9-1/2 in., see Note A
1шт.
11
668598R91
VALVE ASSY, top and tee, knotter frame pivot
1шт.
11
580256R1
ADAPTER,45 Degree, 1/8"-27
1/8-27 PTF x 45 deg angle
1шт.
11
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
12
588291R91
VALVE ASSY, 90 deg terminating, upper bill hook drive shaft
1шт.
12
586983R1
ADAPTER, 1/8-27 PTF x 90 deg angle
1шт.
12
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
13
NYLON TUBING, lub, 4-1/2 in., see Note A
1шт.
14
NYLON TUBING, lub, 17-1/2 in., see Note A
1шт.
15
585854R91
VALVE ASSY, top terminating, lower bill hook drive shaft
1шт.
15
20204R1
ADAPTER,90 Degree, 1/4"-1/8 NPTF
1/4-28 male x 1/8 pipe female 90 deg elbow, replaces 668803R1
1шт.
15
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
16
NYLON TUBING, lub, 4-1/2 in., see Note A
1шт.
17
585865R91
VALVE ASSY, top and 180 deg, upper cord holder pinion shaft
1шт.
17
585626R1
ADAPTER, 1/8-27 PTF x 20 deg angle
1шт.
17
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
18
NYLON TUBING, lub, 5-1/2 in., see Note A
1шт.
19
585857R91
VALVE ASSY, 90 deg terminating, cord holder shaft
1шт.
19
580257R1
ADAPTER,60 Degree, 1/8"-27
1/8-27 PTF x 60 deg angle
1шт.
19
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
20
NYLON TUBING, lub, 5-1/2 in., see Note A
1шт.
21
585854R91
VALVE ASSY, top terminating, lower cord holder pinion shaft
1шт.
21
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
22
585854R91
VALVE ASSY, top terminating, lower cord holder pinion shaft
1шт.
22
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
23
585857R91
VALVE ASSY, 90 deg terminating, cord holder shaft
1шт.
23
580257R1
ADAPTER,60 Degree, 1/8"-27
1/8-27 PTF x 60 deg angle
1шт.
23
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
24
NYLON TUBING, lub, 5-1/2 in., see Note A
1шт.
25
NYLON TUBING, lub, 5-1/2 in., see Note A
1шт.
26
585865R91
VALVE ASSY, top and 180 deg, upper cord holder pinion shaft
1шт.
26
585626R1
ADAPTER, 1/8-27 PTF x 90 deg angle
1шт.
26
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
27
NYLON TUBING, lub, 4-1/2 in., see Note A
1шт.
28
585854R91
VALVE ASSY, top terminating, lower bill hook drive shaft
1шт.
28
20204R1
ADAPTER,90 Degree, 1/4"-1/8 NPTF
1/4-28 male x 1/8 pipe female 90 deg elbow, replaces 668803R1
1шт.
28
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
29
NYLON TUBING, lub, 4-1/2 in., see Note A
1шт.
30
668598R91
VALVE ASSY, top and tee, knotter frame pivot
1шт.
30
580256R1
ADAPTER,45 Degree, 1/8"-27
1/8-27 PTF x 45 deg angle
1шт.
30
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
31
588291R91
VALVE ASSY, 90 deg terminating, upper bill hook drive shaft
1шт.
31
586983R1
ADAPTER, 1/8-27 PTF x 90 deg angle
1шт.
31
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
32
NYLON TUBING, lub, 9-1/2 in., see Note A
1шт.
33
NYLON TUBING, lub, 16-1/2 in., see Note A
1шт.
34
585862R91
VALVE ASSY, 180 deg, rear packer crank bearing
1шт.
34
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
35
NYLON TUBING, lub, 14-1/2 in. see note A
1шт.
36
585857R91
VALVE ASSY, 90 deg terminating, trip arm pivot
1шт.
36
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
37
NYLON TUBING, lub, 9 in., see Note A
1шт.
38
668732R91
VALVE ASSY, top and tee, auger drive shaft
1шт.
38
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
40
NYLON TUBING, lub, 9 in., see Note A
1шт.
41
NYLON TUBING, lub, 19 in., see Note A
1шт.
42
585857R91
VALVE ASSY, 90 deg terminating, needle pivot bearing
1шт.
43
668731R91
VALVE ASSY, top and tee, right knotter shaft bearing
1шт.
43
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
44
NYLON TUBING, lub, 7-1/2 in., see Note A
1шт.
45
585856R91
VALVE ASSY, top terminating, knotter drive gear
1шт.
45
668734R91
ADAPTER ASSY, swivel
1шт.
45
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
46
NYLON TUBING, lub, 4-1/2 in., see Note A
1шт.
47
585865R91
VALVE ASSY, top and 180 deg, auger drive shaft
1шт.
47
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
48
NYLON TUBING, lub, 26 in., see Note A
1шт.
49
668730R91
VALVE ASSY, 90 deg elbow, left auger relief and support bearing
1шт.
49
586983R1
ADAPTER, 1/8-27 PTF x 90 deg angle
1шт.
49
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
50
NYLON TUBING, lub, 47 in., see Note A
1шт.
51
585854R91
VALVE ASSY, top terminating, right auger relief and support bearing
1шт.
51
586983R1
ADAPTER, 1/8-27 PTF x 90 deg angle
1шт.
51
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
52
192159
SEAT BELT
CONNECTOR, 1/8-27 ball sleeve tube
1шт.
53
668621R91
PUMP, grease
1шт.
54
444253
TEE,1/8"-27 Fem x Male Run x Fem Br, Brass
1/8-27 automotive pipe
1шт.
55
585589R91
INDICATOR, pressure
1шт.
Выбрано товаров: 94
