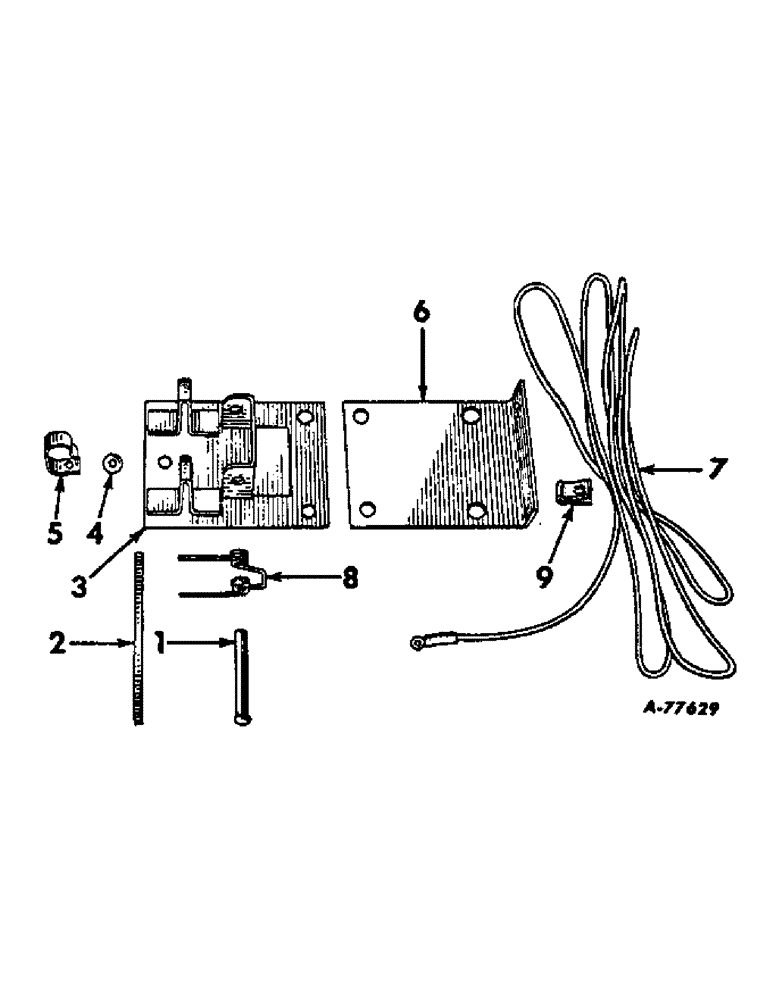

Запчасти Case IH 57 (A-57) - ENGINE SHUT-OFF ATTACHMENT, FIBER BAR TYPE, FOR WIRE BALER, WHEN ORDERED

1

Q530

HEADED PIN,7.92mm OD x 63.5mm L

PIN, 5/16 x 2-1/2 std-hd

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

2

659235R1

ACTUATOR, engine shutoff

1шт.

NUT, 10-32 cd-pltd hex. mach screw

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

10-32 x 1/2 cd-pltd slt-rd-hd mach

1шт.

WASHER, No. 10 cd-pltd med lock

1шт.

WASHER, 7/32 x 1/2 x 18 ga

1шт.

3

659229R91

BASE ASSY, engine shutoff

1шт.

BOLT, 5/16-18 x 1 hex-hd mach

2шт.

NUT, 5/16-18 hex.

2шт.

WASHER, 5/16 med lock

2шт.

4

659236R1

WASHER, engine shutoff spring

2шт.

5

659233R1

SPRING, engine shutoff contact

1шт.

NUT, 10-32 cd-pltd hex. mach screw

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

10-32 x 1/2 cd-pltd slt-rd-hd mach

1шт.

WASHER, No. 10 cd-pltd med lock

1шт.

WASHER, 7/32 x 1/2 x 18 ga

1шт.

6

665186R2

SUPPORT, engine shutoff

1шт.

BOLT, 5/16-18 x 3/4 hex-hd mach

2шт.

NUT, 5/16-18 hex.

2шт.

WASHER, 5/16 med lock

2шт.

7

664547R91

WIRE, lead 290 in. long

2шт.

8

659234R1

SPRING, engine shutoff actuator

1шт.

9

140568

CLAMP

CLIP, No. 5 5/16 x 9/16 closed

3шт.
