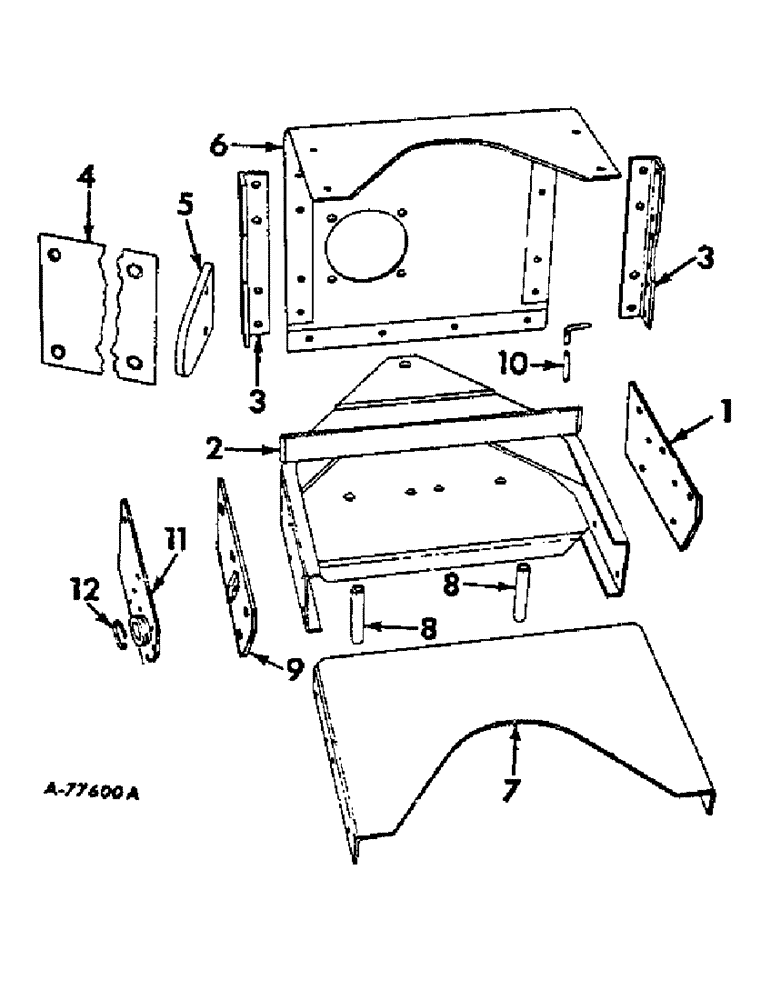

Запчасти Case IH 57 (A-06) - HITCH

1

663414R1

PLATE, hitch side

1шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 lock

3шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

2

663231R92

CHANNEL ASSY, hitch

1шт.

3

663505R1

ANGLE, main drive support

2шт.

BOLT, 3/8-16 x 1 hex-hd mach

8шт.

BOLT, 7/16-14 x 1-1/4 hex-hd mach

5шт.

BOLT, 7/16-14 x 1-1/2 hex-hd mach

3шт.

NUT, 3/8-16 hex.

8шт.

NUT, 7/16-14 hex.

8шт.

WASHER, 3/8 med lock

8шт.

WASHER, 7/16 med lock

8шт.

4

663388R1

COVER, PTO grille

1шт.

BOLT, 1/2-13 x 1 hex-hd mach

4шт.

NUT, 1/2-13 hex.

4шт.

WASHER, 1/2 med lock

4шт.

5

663577R1

PLUG, main drive right support

1шт.

BOLT, 7/16-14 x 1-1/4 hex-hd mach

2шт.

NUT, 7/16-14 hex.

2шт.

WASHER, 7/16 med lock

2шт.

6

663504R1

GUSSET, bale chamber front

1шт.

BOLT, 3/8-16 x 1 hex-hd mach

4шт.

NUT, 3/8-16 hex.

4шт.

WASHER, 3/8 med lock

4шт.

7

663470R1

GUSSET, bale chamber bottom front

1шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 lock

4шт.

664646R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 lock

6шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

4шт.

179863

BOLT,Hex, 7/16" - 14 x 1 5/8"

SCREW, 7/16-14 x 1-5/8 hex-hd cap

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

8

663350R1

STOP, hitch

2шт.

BOLT, 1/2-13 x 5-1/2 hex-hd mach

2шт.

NUT, 1/2-13 hex.

2шт.

WASHER, 1/2 med lock

2шт.

9

668584R91

LUG ASSY, jack mount, 501G thru 2597K

1шт.

10

663366R1

PIN, hitch lock

1шт.

11

665068R91

PIVOT ASSY, jack mounting, 2598L up

1шт.

BOLT, 7/16-14 x 1-1/4 No. 3 plow

4шт.

BOLT, 7/16-14 x 1-1/4 hex-hd mach

3шт.

NUT, 7/16-14 hex.

7шт.

WASHER, 7/16 med lock

7шт.

12

665071R1

SNAP RING,#200, Ext

jack mounting pivot, 2598L up #200, Ext

1шт.
