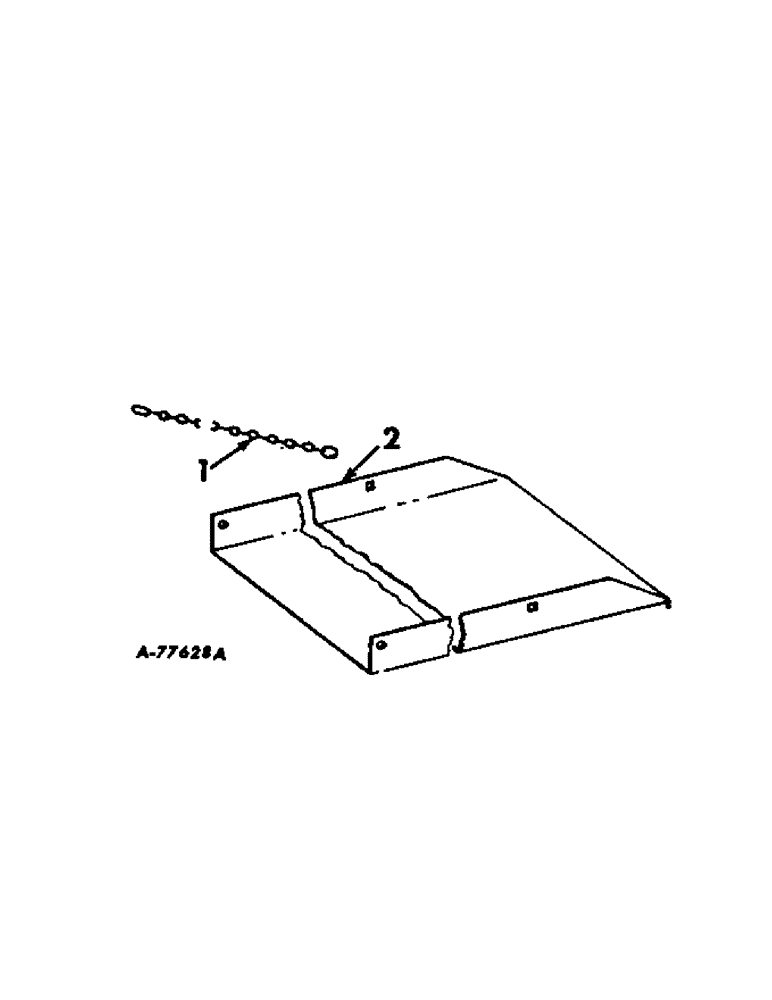

Запчасти Case IH 57 (A-56[A]) - BALE CHUTE

1

669647R1

CHAIN (AG)

CHAIN ASSY, bale chute holdup

2шт.

1

662325R91

CHAIN (AG)

CHAIN ASSY, bale chute holdup, used with 24-1/2 in. bale chute only

2шт.

668986R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16-18 x 1-1/4 short sq-nk crg

2шт.

657803R1

NUT, 5/16-18 wing

2шт.

WASHER, 5/16 med lock

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

2

668682R2

CHUTE, bale

1шт.

BOLT, 3/8-16 x 1-1/4 short sq-nk crg

2шт.

NUT, 3/8-16 hex.

4шт.

575807R1

WASHER

13/32 x 1 x 11 ga

2шт.
