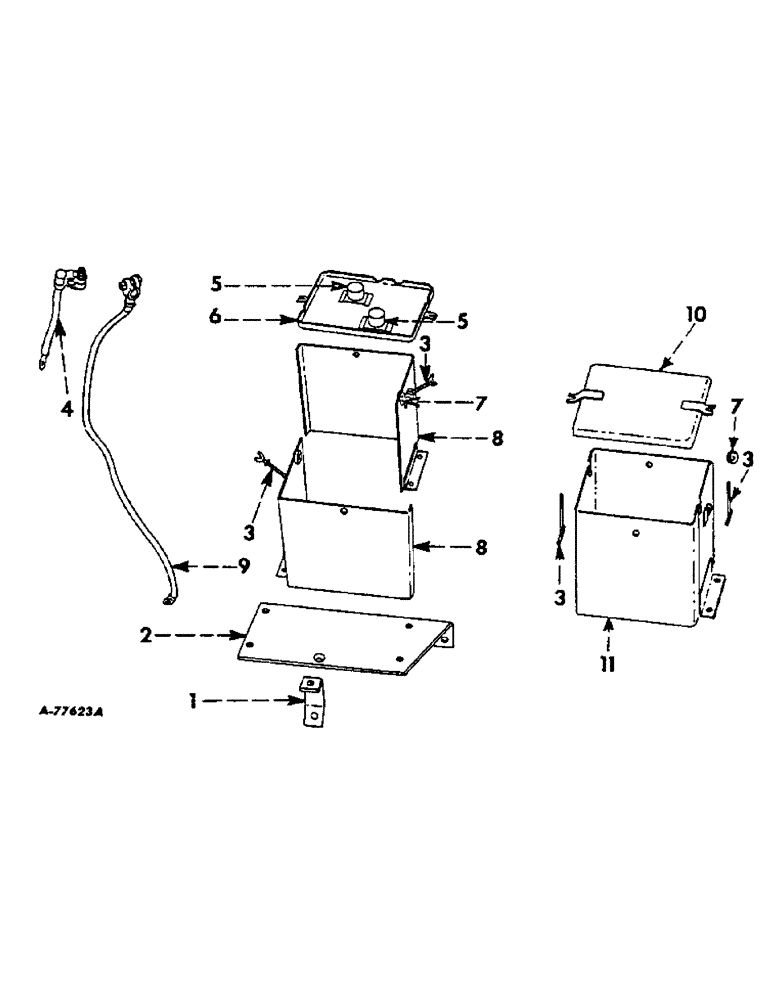

Запчасти Case IH 57 (A-52) - ADDITIONAL PARTS FOR C-123 AND WISCONSIN ENGINES, BATTERY BOX AND ELECTRICAL CABLES

1

663381R1

SUPPORT, battery base

1шт.

BOLT, 3/8-16 x 1 hex-hd mach

1шт.

NUT, 3/8-16 hex.

2шт.

114672

SCREW

3/8-16 x 1 slt-f-hd mach

1шт.

WASHER, 3/8 med lock

2шт.

2

663452R1

BASE, battery box

1шт.

BOLT, 7/16-14 x 1-1/2 hex-hd mach

2шт.

NUT, 7/16-14 hex.

2шт.

WASHER, 7/16 med lock

2шт.

3

50939DA

SPECIAL BOLT,1/4" - 20 x 2 1/4"

battery box cover hold down

2шт.

6655621R1

NUT, 1/4-20 wing

2шт.

WAHSER, 9/32 x 5/8 x 16 ga

2шт.

4

671089R91

CABLE, battery ground, 12 volt

1шт.

4

69510DA

CABLE

battery ground, 6 volt

1шт.

BLT, 3/8-16 x 3/4 hex-hd mach

1шт.

NUT, 3/8-16 hex.

1шт.

WASHER, 3/8 med lock

1шт.

5

65054DA

RUBBER, battery hold down, 6 volt

2шт.

6

663292R91

COVER ASSY, battery box, 6 volt

1шт.

7

52118D

GROMMET

battery box

1шт.

8

663289R91

BODY ASSY, battery box, 6 volt

2шт.

BOLT, 5/16-18 x 3/4 hex-hd mach

4шт.

NUT, 5/16-18 hex.

4шт.

WASHER, 5/16 med lock

4шт.

9

672143R91

CABLE, battery 12 volt, Wisconsin engine

1шт.

9

671088R91

CABLE, battery 12 volt, C124 engine

1шт.

9

663454R91

CABLE, battery 6 volt, Wisconsin engine

1шт.

9

663457R91

CABLE, battery 6 volt, C123 engine

1шт.

10

671087R91

COVER ASSY, battery box, 12 volt

1шт.

11

671086R91

BODY ASSY, battery box, 12 volt

1шт.

BOLT, 5/16-18 x 3/4 hex-hd mach

4шт.

NUT, 5/16-18 hex.

4шт.

WASHER, 5/16 med lock

4шт.
