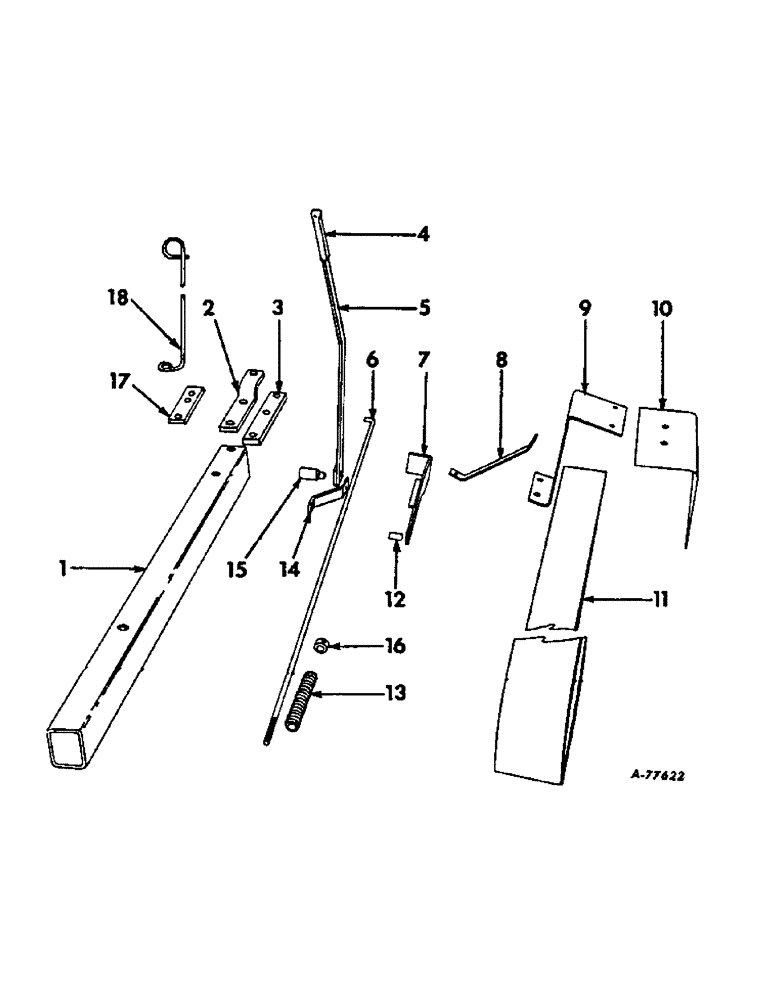

Запчасти Case IH 57 (A-51) - PARTS COMMON TO C-123 AND WISCONSIN ENGINES

1

663324R91

HITCH ASSY

1шт.

BOLT, 3/4-10 x 6 dld hex-hd mach

1шт.

NUT, 3/4-10 slt-hex.

1шт.

PIN, 1/8 x 1-1/2 cot.

1шт.

WASHER, 13/16 x 1-1/2 x 10 ga

1шт.

51107V

WASHER, 1-17/32 x 3 x 7 ga

1шт.

2

663448R1

STRAP, hitch clevis lower

1шт.

3

663449R1

STRAP, hitch clevis upper

1шт.

BOLT, 5/8-11 x 2-3/4 hex-hd mach

2шт.

BOLT, 5/8-11 x 3 hex-hd mach

1шт.

NUT, 5/8-11 hex.

2шт.

WASHER, 5/8 med lock

2шт.

WASHER, 21/32 x 1-1/4 x 11 ga

1шт.

4

662340R1

GRIP

lever, replaces 666930R1

1шт.

5

663573R1

LEVER, engine idler control

1шт.

6

663572R2

ROD, engine idler control

1шт.

NUT, 1/2-13 hex.

2шт.

PIN, 3/32 x 3/4 cot.

2шт.

Q5035

WASHER

17/32 x 1 x 16 ga

4шт.

7

663647R91

QUADRANT ASSY, engine idler lever

1шт.

8

663883R1

BRACE, belt shield support

1шт.

BOLT, 5/16-18 x 3/4 short sq-nk crg

1шт.

NUT, 5/16-18 hex.

1шт.

SCREW, 1/2-13 x 1-1/4 hex-hd cap

1шт.

WASHER, 5/16 med lock

1шт.

WASHER, 1/2 med lock

1шт.

9

663507R1

BRACKET, engine drive belt shield

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 short sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

10

663506R11

SHIELD W/PRODUCT GRAPHIC, engine drive belt

1шт.

11

669597R1

BELT 4.00" W x 160.00" L, Engine drive, See Note A 4.00" W x 160.00" L

1шт.

11

663476R1

BELT 4.00" W x 157.38" L, Engine drive, See Note B 4.00" W x 157.38" L

1шт.

12

600373R1

SPACER

engine idler quadrant

1шт.

BOLT, 3/8-16 x 3-1/2 hex-hd mach

1шт.

NUT, 3/8-16 hex.

1шт.

WASHER, 3/8 med lock

1шт.

13

PO3A

SPRING

engine idler control rod, replaces PO3

1шт.

14

663574R1

STRAP, engine idler lever hammer

1шт.

SCREW, 1/2-13 x 3-3/4 hex-hd cap

1шт.

WASHER, 1/2 med lock

1шт.

WASHER, 17/32 x 1-1/4 x 16 ga

1шт.

15

663571R1

PIVOT, engine idler lever

1шт.

16

516595R1

COLLAR

engine idler control rod set

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2-13 x 5/8 sq-hd cup-pt set

1шт.

17

668758R1

SPACER

hitch strap

1шт.

18

668037R1

SUPPORT

hitch rope

1шт.
