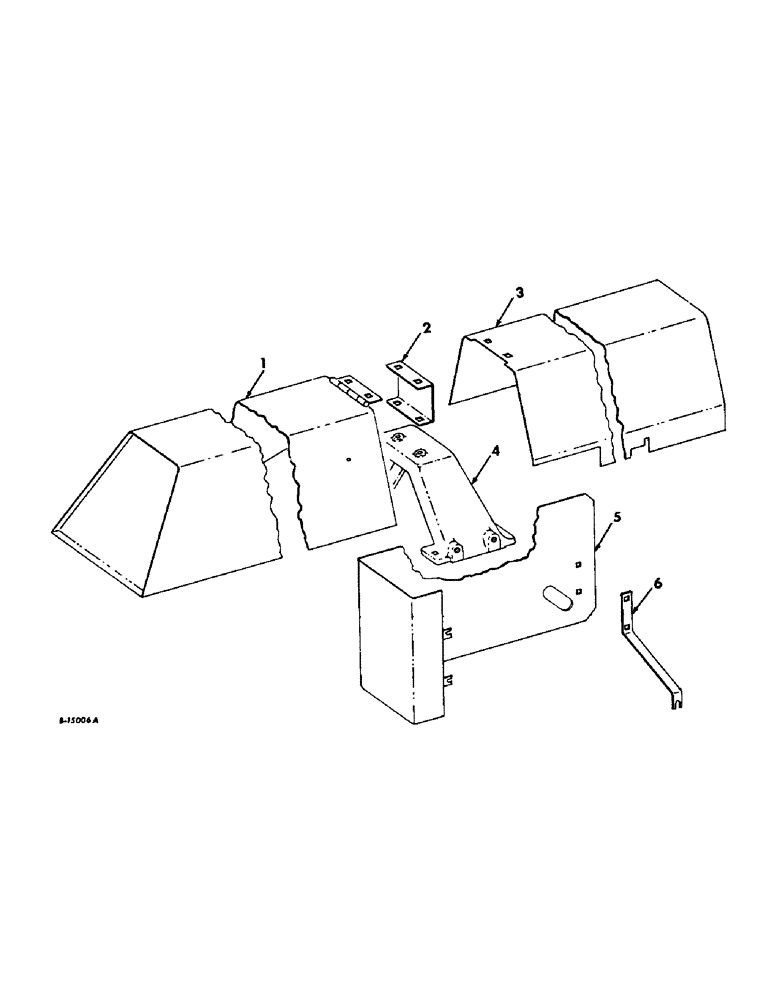

Запчасти Case IH 57 (A-50) - POWER TAKE-OFF ATTACHMENT, PLUNGER CRANK AND PULLEY SHIELDS

1

668652R91

SHIELD ASSY, plunger crank front

1шт.

2

668657R1

SUPPORT, plunger crank shield

1шт.

BOLT, 1/2-13 x 1 short sq-nk crg

2шт.

BOLT, 1/2-13 x 1-1/2 short sq-nk crg

2шт.

NUT, 1/2-13 hex.

4шт.

WASHER, 1/2 med lock

4шт.

3

668658R91

SHIELD ASSY, plunger crank rear

1шт.

BOLT, 3/8-16 x 1-1/2 No. 3 plow

1шт.

NUT, 3/8-16 hex.

2шт.

WASHER, 3/8 med lock

2шт.

4

663189R1

MOUNT, engine front

1шт.

BOLT, 7/16-14 x 1-1/4 hex-hd mach

4шт.

BOLT, 3/8-16 x 1-1/4 short-sq-nk crg

3шт.

NUT, 3/8-16 hex.

3шт.

WASHER, 3/8 med lock

3шт.

WASHER, 7/16 med lock

4шт.

5

668695R91

SHIELD ASSY, pulley

1шт.

Q5097

WASHER

15/32 x 1-1/4 x 16 ga

2шт.

6

663599R1

BRACKET, pulley shield

1шт.

BOLT, 5/16-18 x 1/2 hex-hd mach

1шт.

BOLT, 3/8-16 x 3/4 short-sq-nk crg

2шт.

NUT, 3/8-16 hex.

2шт.

WASHER, 5/16 med lock

2шт.

WASHER, 3/8 med lock

2шт.

2751405R1

PRODUCT GRAPHICS, IH trade mark, Decal

1шт.

2751271R1

PRODUCT GRAPHIC

S, International, Decal on left side of plunger crank shield

1шт.
