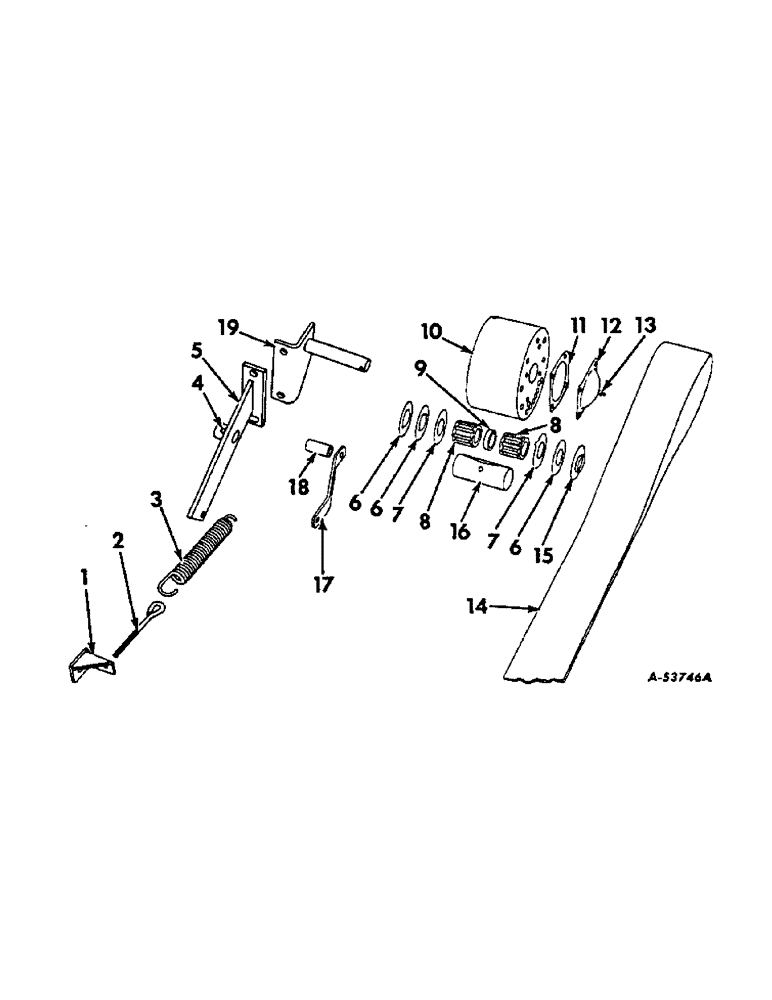

Запчасти Case IH 57 (A-49) - POWER TAKE-OFF ATTACHMENT, IDLER PULLEY AND LEVER

1

663713R91

ANCHOR ASSY, idler spring

1шт.

SCREW, 1/2-13 x 1-1/2 hex-hd cap

1шт.

WASHER, 1/2 med lock

1шт.

2

662303R1

BOLT, idler spring eye

1шт.

NUT, 3/8-16 hex.

2шт.

3

33253A

SPRING, idler pulley

1шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub

1шт.

5

663710R92

LEVER ASSY, idler

1шт.

BOLT, 1/2-13 x 1-1/2 hex-hd mach

2шт.

NUT, 1/2-13 hex.

2шт.

WASHER, 1/2 med lock

2шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

1шт.

6

B32368

WASHER, pulley (or as required)

4шт.

7

B32367

WASHER, pulley notched

2шт.

8

74036H

BEARING

ASSY, idler pulley

2шт.

9

11449P

SPACER,1 1/4" Pipe x 1/2"

pulley bearing

1шт.

10

5174PA

PULLEY IDLER

1шт.

11

656874R1

GASKET, pulley cap

1шт.

12

659371R91

CAP ASSY, idler pulley

1шт.

BOLT, 5/16-18 x 1/2 hex-hd mach

4шт.

WASHER, 5/16 med lock

4шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

14

663609R1

BELT,4.00" W x 139.00" L

Drive 4.00" W x 139.00" L

1шт.

15

11387P

WASHER, thrust

1шт.

16

451891R1

RACE, pulley bearing

1шт.

17

663716R1

STRAP, idler lever hammer

1шт.

SCREW, 1/2-13 x 3-1/2 hex-hd cap

1шт.

WASHER, 1/2 med lock

1шт.

18

663717R1

PIVOT, idler lever

1шт.

615089R1

WASHER, 17/32 x 1-3/4 x 16 ga

1шт.

19

665258R91

BRACKET ASSY, idler adjusting

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.
