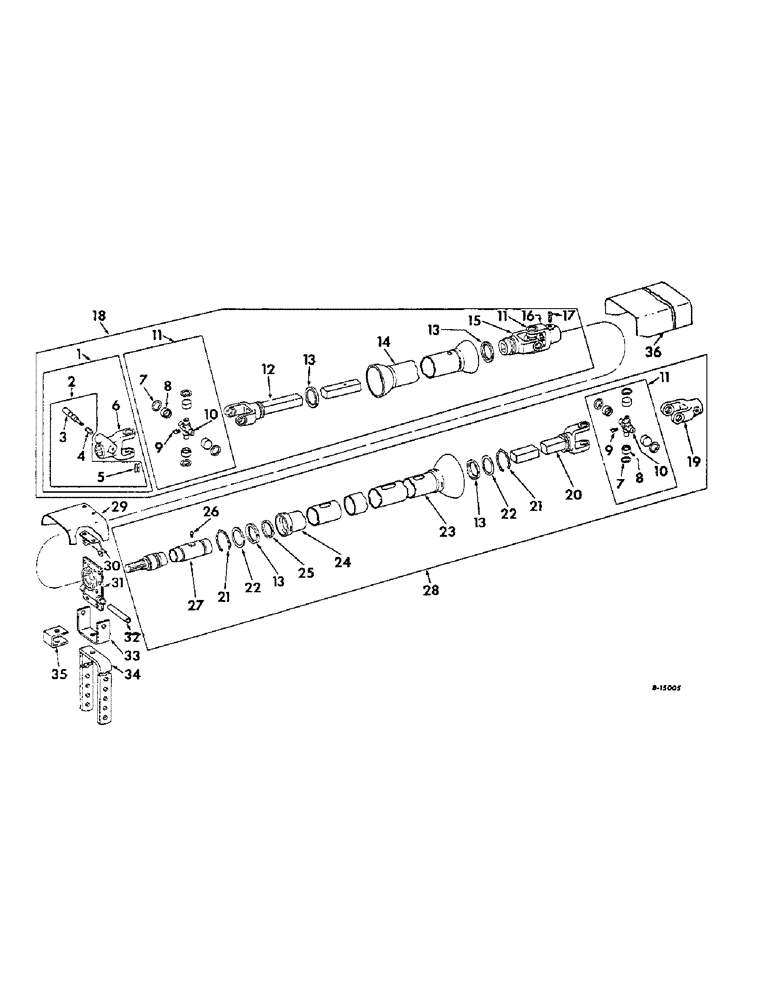

Запчасти Case IH 57 (A-47) - POWER TAKE-OFF ATTACHMENT, DRIVE SHAFTS FOR 540 AND 1000 RPM

1

568100R92

YOKE

ASSY, quick attachable, see Note A

1шт.

1

472857R91

YOKE

ASSY, quick attachable, see Notes B and D

1шт.

1

660484R21

FORK

YOKE ASSY, quick attachable, see Note C

1шт.

2

455346R21

PIN

UNIT, locking pin, see Notes A and C

1шт.

2

PIN ASSY, locking, not serviced as a complete, see Notes B and D

1шт.

3

PIN, locking, (not serviced separately) order locking pin assy, see Notes A and C

1шт.

3

587478R1

PIN

locking, see Notes B and D

1шт.

4

455347R1

VALVE SPRING

SPRING, lock unit, see Notes A and C

1шт.

4

587479R1

SPRING

locking, see Notes B and D

1шт.

5

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X lock

1шт.

6

YOKE, (not serviced separately), order 568100R92 or 660484R21 yoke assy, see Notes A and C

1шт.

6

472858R1

YOKE, see Notes B and D

1шт.

7

576420R1

RING

snap, see Notes A, B and D

12шт.

7

495962R1

RING

snap, see Note C

12шт.

8

569044R91

BEARING ASSY

ASSY, needle, see Notes A, B and D

12шт.

8

661671R91

JOINT

BEARING ASSY, needle, see Note C

12шт.

9

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 PTF, 65 degree lub

3шт.

10

CROSS, (not serviced separately) order cross repair kit

1шт.

11

200464C91

PACKAGE

KIT, cross service, see Notes A, B and D

3шт.

12

660116R91

NUT

KIT, cross service, see Note C

3шт.

12

666734R91

YOKE

& SQUARE SHAFT, see Note A

1шт.

12

666741R91

YOKE

SHAFT ASSY, front half, see Note C

1шт.

12

668716R91

SHAFT ASSY, front half, see Notes B and D

1шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

1шт.

13

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

4шт.

14

666735R91

SHIELD ASSY, shaft, see Note A

1шт.

14

668717R91

SHIELD ASSY, shaft, see Notes B and D

1шт.

14

666742R91

SHIELD ASSY, shaft, see Note C

1шт.

15

666736R1

YOKE

plain, see Notes A, B and D

1шт.

15

666743R1

YOKE

plain, see Note C

1шт.

16

576433R1

FORK

YOKE, splined, see Notes A, B and D

1шт.

16

660489R1

YOKE

splined, see Note C

1шт.

17

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, 1/2-20 x 1-3/16 sq-hd cone pt set

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

18

666729R91

SHAFT ASSY, main drive, front half, see Note A

1шт.

18

668698R91

SHAFT ASSY, main drive, front half, see Notes B and D

1шт.

18

666731R91

GASKET

SHAFT ASSY, main drive front half, see Note C

1шт.

19

460620R1

YOKE

splined, see Notes A, B and D

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, 1/2-20 x 1-3/16 sq-hd cone pt set

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1/2-20 hex. jam

1шт.

19

664179R1

YOKE

splined, see Note C

1шт.

20

666737R91

YOKE

SHAFT ASSY, rear half, see Notes A, B and D

1шт.

20

666744R91

YOKE

SHAFT ASSY, rear half, see Note C

1шт.

21

613436R1

CLAMP

RING, snap

2шт.

22

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

23

666739R91

SHIELD W/BELL, outer, see Notes A, B and D

1шт.

23

666745R91

SHIELD W/BELL, outer, see Note C

1шт.

24

666738R91

SHIELD W/RETAINER, inner, see Notes A, B and D

1шт.

24

666746R91

RETAINER

SHIELD W/RETAINER, inner, see Note C

1шт.

25

613439R1

BRACKET

BEARING, inner shield

1шт.

26

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub

1шт.

27

666740R91

SHAFT

TUBE ASSY, rear half shaft, see Notes A, B and D

1шт.

27

666747R91

TUBE ASSY.,2.125" OD, 24.625" Length

TUBE ASSY, rear half shaft, see Note C

1шт.

28

668699R91

SHAFT ASSY, main drive rear half, see Notes A, B and D

1шт.

28

666732R91

SHAFT ASSY, main drive rear half, see Note C

1шт.

29

662249R11

SHIELD W/PRODUCT GRAPHIC, PTO brg box

1шт.

30

667416R1

BRACKET, PTO bearing box shield

1шт.

BOLT, 5/16-18 x 3/4 hex-hd mach

4шт.

NUT, 5/16-18 hex.

4шт.

WASHER, 5/16 med lock

4шт.

31

ST669

BEARING ASSY,35mm ID

PTO shaft front

1шт.

32

667460R1

BUSHING

PIVOT, PTO shaft brg

1шт.

BOLT, 1/2-13 x 5-1/2 hex-hd mach

1шт.

NUT, 1/2-13 hex.

1шт.

WASHER, 1/2 med lock

1шт.

33

667462R1

BRACKET

PTO shaft bearing pivot

1шт.

34

667790R91

BRACKET

PEDESTAL ASSY

1шт.

NUT, 1/2-20 hex.

1шт.

NUT, 1/2-20 slt-hex.

1шт.

PIN, 3/32 x 1 cot.

1шт.

662086R1

SCREW, 1/2-20 x 5-1/4 hex-hd cap

1шт.

WASHER, 17/32 x 1-1/16 x 13 ga

1шт.

35

667792R1

BRACKET

PTO bearing bolt

1шт.

667793R1

BOLT, PTO pivot

1шт.

NUT, 1/2-20 slt-hex.

1шт.

PIN, 3/32 x 1 cot.

1шт.

36

663630R91

SHIELD ASSY, PTO rear

1шт.
