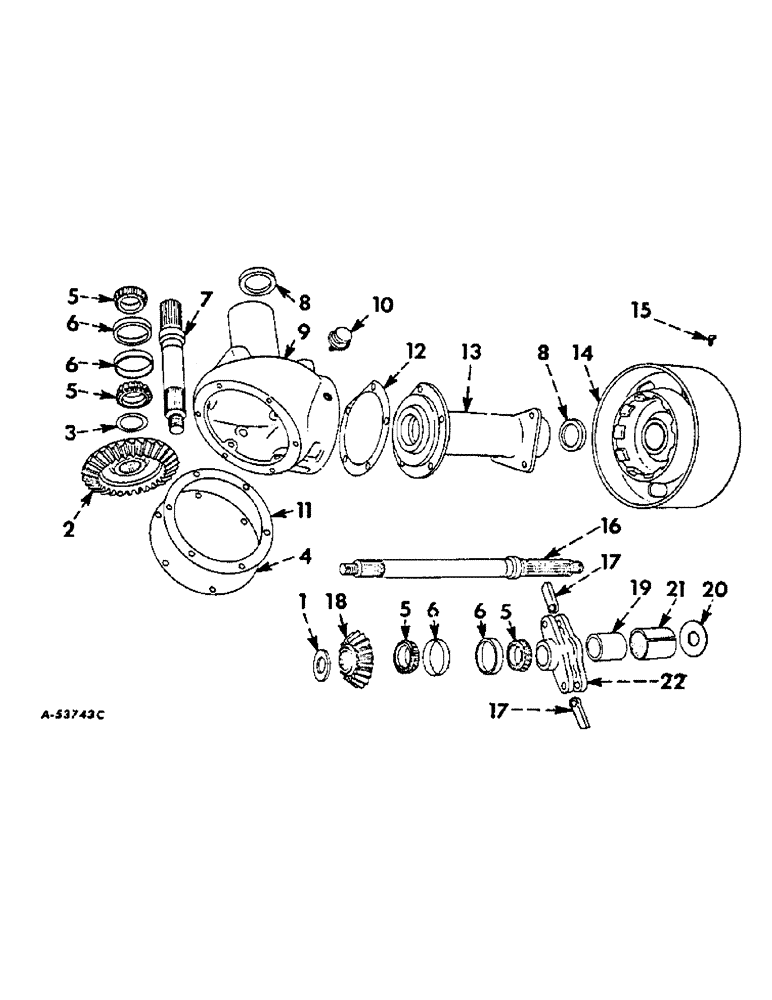

Запчасти Case IH 57 (A-46) - POWER TAKE-OFF ATTACHMENT, GEAR BOX AND PULLEY

1

668696R1

SPACER, PTO drive gear

1шт.

2

668996R91

SET, 540 RPM gear, 37T, includes ref. 18

1шт.

2

469248R2

GEAR, 1000 RPM, 20T

1шт.

3

663605R2

SHIM

gear .007

2шт.

4

663596R1

COVER, case

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 znd hex-hd mach

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, PTO case cone

4шт.

6

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

PTO case

4шт.

7

663590R11

SHAFT ASSY, input

1шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/18-14 slt-hex

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

21846R1

WASHER, 29/32 x 2 x 3 ga C-Z

1шт.

21794R1

WASHER

1-13/32 x 2 x 20 ga C-Z

1шт.

8

378157R91

OIL RESERVOIR

SEAL, PTO case oil

2шт.

9

663586R3

HOUSING

BOX, gear

1шт.

445763

BOLT,M14 x 1.5 x 53mm, Class 10.9, BLK

PLUG, 3/8-18 automotive sq-hd pipe

2шт.

10

91916R91

BREATHER,3/8"-18 NPT, Short, w/washer

gear box

1шт.

11

663607R1

GASKET

PTO case cover

1шт.

12

663601R1

SHIM

barrel case .020

2шт.

12

663602R1

SHIM

barrel case .007

2шт.

12

663603R1

SHIM

barrel case .005

2шт.

13

663587R2

BARREL, gear box

1шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16-14 x 1-1/4 znd hex-hd mach

5шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16-14 x 1-1/2 C-Z hex-hd mach

3шт.

271501

SOCKET

NUT, 7/16-14 znd hex.

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

14

663555R11

PULLEY W/BUSHING, drive

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

16

663591R11

SHAFT ASSY, output

1шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 znd slt-hex.

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

23044R1

WASHER, 1-13/32 x 2-1/2 x 16 ga C-Z

1шт.

17

662241R1

RATCHET

DOG, over running clutch

2шт.

18661R1

BOLT,Hex, 1/4"-20 x 2-1/2", G2

1/4-20 x 2-1/2 znd hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

23298R1

PIN, 1/2 x 1-7/8 C-Z slt-spring

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21870R1

WASHER

17/32 x 3/4 x 16 ga C-Z

4шт.

18

668996R91

SET, 540 RPM gear, 16T, includes ref. 2

1шт.

18

469392R2

GEAR

1000 RPM, 15T

1шт.

19

663608R1

SPACER, pulley

1шт.

20

21876R1

WASHER, 29/32 x 2-3/4 x 7 ga C-Z, replaces 495465R1

1шт.

21

663737R1

BUSHING

pulley

1шт.

22

663554R1

DOOR

CARRIER, dog

1шт.
