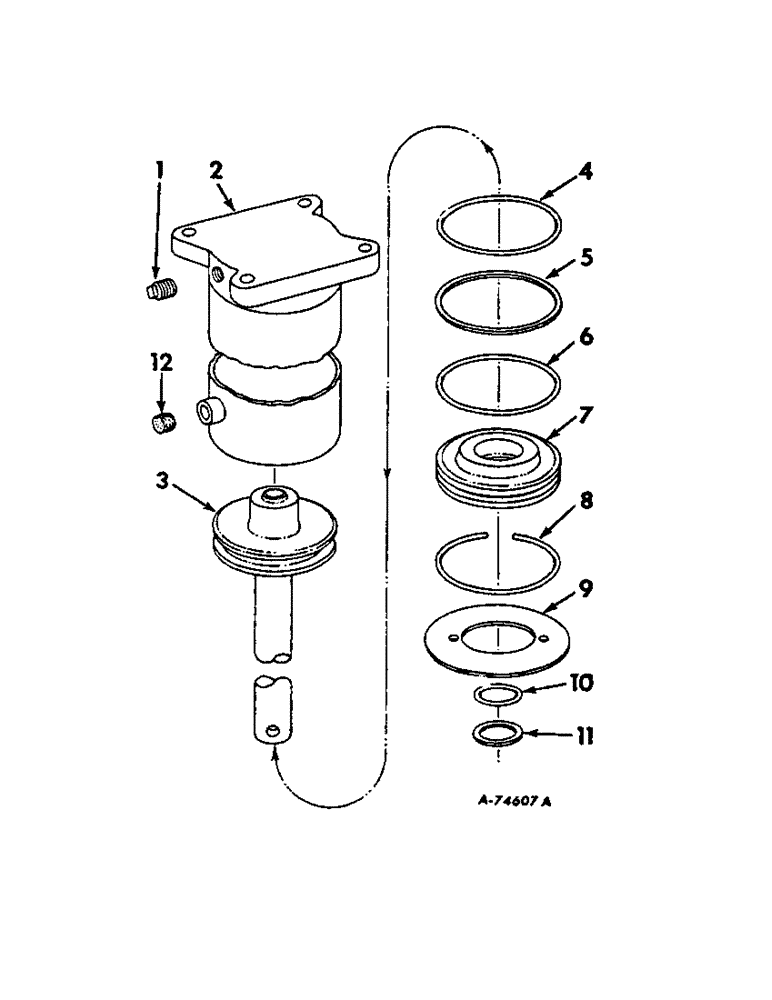

Запчасти Case IH 57 (A-45) - HYDRAULIC BALE TENSION DEVICE, HYDRAULIC JACK

963236R91

JACK ASSY, hydraulic

1шт.

BOLT, 5/16-18 x 1-1/4 hex-hd mach

4шт.

NUT, 5/16-18 hex.

4шт.

WASHER, 5/16 med lock

4шт.

1

217-459

DRAIN PLUG,Sq Soc, 1/4" - 18 NPTF

1/4-18 automotive hex-soc-hd drain

1шт.

2

BARREL ASSY, (not serviced separately) order jack assy

1шт.

3

963237R91

ROD ASSY, piston

1шт.

4

963238R1

GASKET

O-RING, 2-7/8 x 3-1/4 x 3/16

1шт.

5

963239R1

WASHER, backup

1шт.

6

259252R1

O-RING

3 x 3-1/4 x 1/8

1шт.

7

659555R1

BEARING

1шт.

8

659559R1

RING, lock

1шт.

9

659554R1

PLATE

end

1шт.

10

659558R1

O-RING,1.046" ID x 0.139" Width

1 x 1-1/4 x 1

1шт.

11

659556R1

WASHER

backup

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

10-24 x 1/2 slt-rd-hd mach hex-soc

2шт.

12

659553R1

PLUG

filter

1шт.
