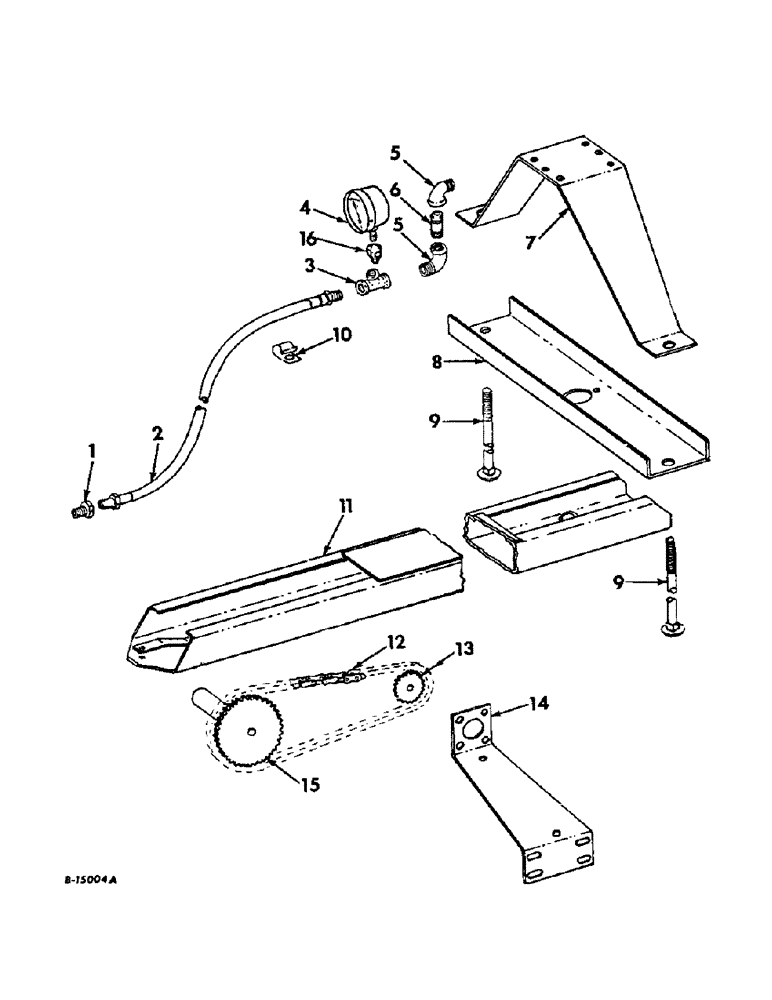

Запчасти Case IH 57 (A-42) - HYDRAULIC BALE TENSION DEVICE, CHANNELS, HOSE AND DRIVE

1

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

BUSHING, 3/8 x 1/4 zn-pltd reducing pipe

1шт.

2

668145R91

HOSE ASSY, hydraulic

1шт.

3

144083

CLIP

TEE, 1/4 zn-pltd pipe

1шт.

4

201603C1

GAUGE

hydraulic tension device, replaces 963008R1

1шт.

648002

KNIFE

1/8" x 3/4"

3шт.

23327R1

PIN, 5/16 x 1-11/16 C-Z std-hd

2шт.

21818R1

PIN, 3/8 x 1-11/16 C-Z std-hd

1шт.

5

NLS

NO LONGER SERVICED

ELBOW, 1/4 90 deg pipe zn-pltd street

2шт.

6

192054

NIPPLE, 1/4 x 2-1/2 cd-pltd pipe

1шт.

7

668124R1

FRAME

hydraulic tension jack

1шт.

8

668123R1

CHANNEL

hydraulic tension jack

1шт.

616254R1

LOCK PIN,3/8" x 1 5/8", Slotted

Pin, 3/8" x 1 5/8", Slotted

1шт.

9

659422R1

BOLT, bale tension channel tie

2шт.

NUT, 5/8-11 hex.

4шт.

10

56278D

CLIP

hose attaching loom

2шт.

BOLT, 3/8-16 x 3/4 hex-hd mach

2шт.

NUT, 3/8-16 hex.

2шт.

WASHER, 3/8 med lock

2шт.

11

668136R91

CHANNEL ASSY, upper tension

1шт.

BOLT, 3/8-16 x 1-3/4 sq-nk crg

1шт.

NUT, 3/8-16 hex.

1шт.

WASHER, 3/8 med lock

1шт.

12

CHAIN ASSY, pump drive, use 87 links 3/8 pitch roller chain from 10 ft roll marked 1789D, 1 connecting link 1765D

1шт.

13

668133R1

SPROCKET ASSY.

SPROCKET, driven

1шт.

222892

SCREW,Hex Soc, #10-24 x 1/2"

10-24 x 1/2 hex-soc-hd set

1шт.

14

668138R91

BRACKET ASSY, hydraulic pump

1шт.

BOLT, 3/8-16 x 1 cd-pltd short, sq nk crg

4шт.

NUT, 3/8-16 cd-pltd hex.

4шт.

WASHER, 3/8 cd-pltd med lock

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd- pltd

4шт.

15

668142R91

SPROCKET ASSY, driver, 48T

1шт.

16

963095R2

SNUBBER, 1/4 NPT pressure

1шт.
