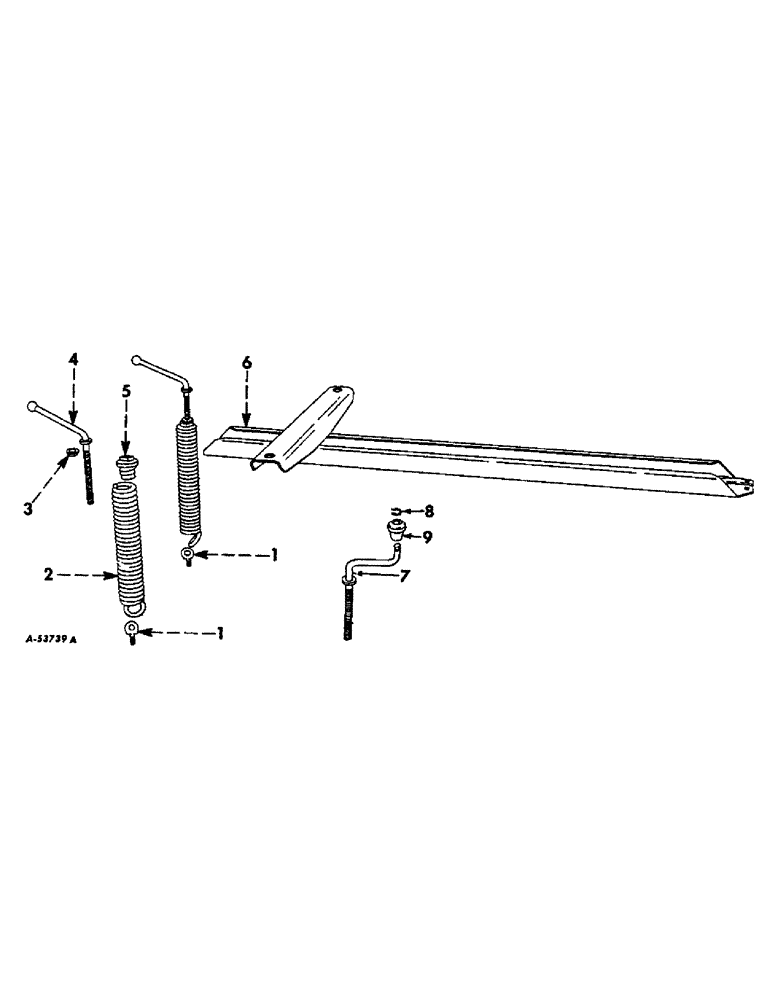

Запчасти Case IH 57 (A-41) - MANUAL TENSION DEVICE

1

26489B

BOLT, spring anchor eye

2шт.

NUT, 1/2-13 hex.

2шт.

WASHER, 1/2 med lock

2шт.

WASHER, 17/32 x 1 x 11 ga

2шт.

2

663382R1

SPRING

bale chamber tension

2шт.

3

656934R1

BUSHING

PILOT, tension adjusting screw

2шт.

4

662385R11

SCREW ASSY, tension adjusting, 1963 thru 1969

2шт.

WASHER, 21/32 x 1-1/4 x 11 ga

2шт.

5

657223R1

PLUG

spring

2шт.

6

663251R91

CHANNEL ASSY, upper tension

1шт.

BOLT, 3/8-16 x 1-3/4 sq-nk crg

1шт.

NUT, 3/8-16 hex.

1шт.

WASHER, 3/8 med lock

1шт.

7

200673C1

CRANK

SCREW ASSY, tension adjusting, 1970 up

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

8

321935C1

SNAP RING,#62, Ext

Ring, Snap, , bale tension knob, 1970 and up #62, Ext

2шт.

9

201397C1

KNOB

ASSY, bale tension, 1970 up

2шт.
