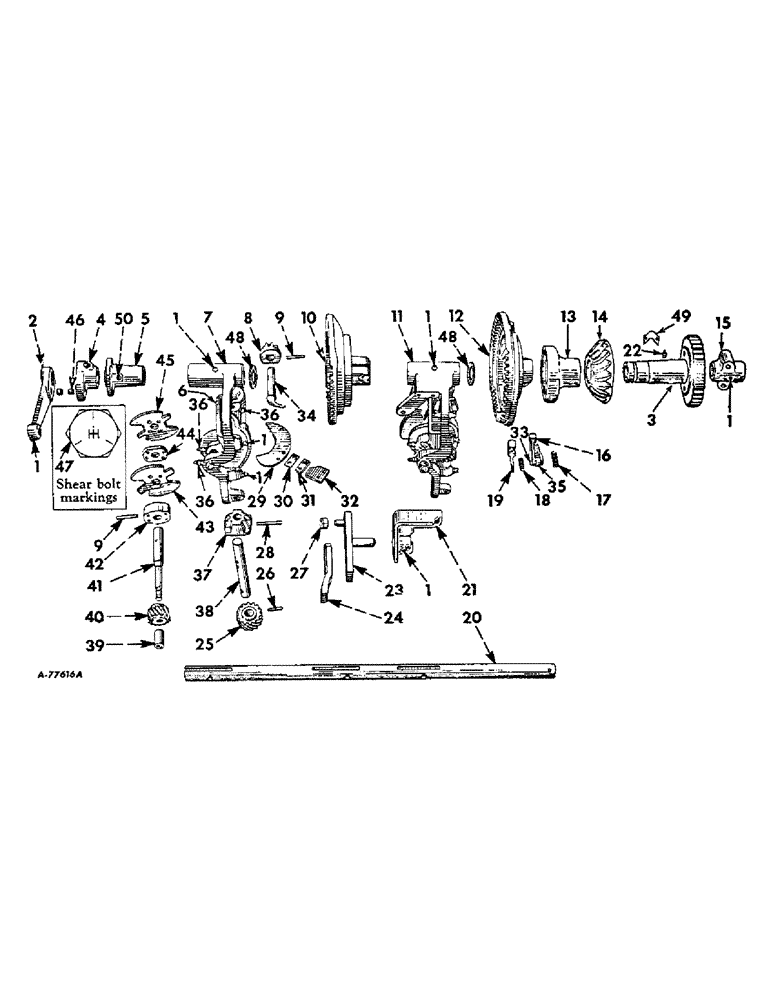

Запчасти Case IH 57 (A-37) - TWISTER AND TWISTER SHAFT

1

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

9шт.

2

664753R21

CRANK W/BUSHING, needle

1шт.

Q72

KEY,5/16" Sq x 1 7/8", Par

3/8 x 1.88 sq-parallel

1шт.

3

668641R1

HUB, auger & twister drive gear

1шт.

4

663167R11

HUB

w/bushing, needle crank

1шт.

NUT, 1/2-13 hex.

1шт.

SCREW, 1/2-13 x 3-1/4 hex-hd cap

1шт.

WASHER, 1/2 med lock

1шт.

5

663153R1

BEARING, twister shaft left

1шт.

BOLT, 3/8-16 x 1-1/4 No. 3 plow

3шт.

NUT, 3/8-16 hex.

3шт.

WASHER, 3/8 med lock

3шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 PTF 45 deg angle lub

2шт.

7

656895R2

TWISTER

FRAME, wire twister left

1шт.

7

656895R22

TWISTER

ASSY, left

1шт.

8

656913R2

PINION

twister

2шт.

9

657196R1

PIN

1/4 x 2 roll spring

4шт.

10

656890R2

CAM

HOLDER, twister gear & stripper cam

1шт.

657206R1

KEY,3/8" Sq x 2 3/8", Par

3/8 x 2-3/8 sq parallel

1шт.

SCREW, 1/2-20 x 2 hex-hd cap

1шт.

WASHER, 1/2 med lock

1шт.

11

656894R1

TWISTER

FRAME, wire twister right

1шт.

11

656894R12

TWISTER

ASSY, right

1шт.

12

663184R1

GEAR, trip dog carrier & twister

1шт.

657206R1

KEY,3/8" Sq x 2 3/8", Par

3/8 x 2-3/8 sq parallel

1шт.

SCREW, 1/2-20 x 2 hex-hd cap

1шт.

WASHER, 1/2 med lock

1шт.

13

663178R2

HOUSING, trip dog bell

1шт.

BOLT, 3/8-16 x 1-3/4 hex-hd mach

1шт.

Q459

KEY,3/8" Sq x 2 1/4", Par

3/8 x 2-1/4 sq parallel

1шт.

WASHER, 3/8 med lock

1шт.

14

668619R1

GEAR, auger & twister drive hypoid

1шт.

SCREW, 3/8-16 x 1-1/4 hex-hd cap

4шт.

WASHER, 3/8 med lock

4шт.

15

663155R2

BEARING, twister shaft right

1шт.

BOLT, 7/16-14 x 3 hex-hd mach

2шт.

NUT, 7/16-14 hex.

2шт.

WASHER, 7/16 med lock

2шт.

16

663478R11

PAWL

DOG W/ROLLER, trip

1шт.

663379R1

AXLE PIN

PIN, trip dog pivot

1шт.

17

V680

SPRING

trip dog

1шт.

18

R1003

SPRING

auxiliary trip dog

1шт.

19

663378R1

PAWL

DOG, auxiliary trip

1шт.

20

663421R2

SHAFT, wire twister

1шт.

PIN, 3/16 x 2 cot.

2шт.

Q275

WASHER

1-13/32 x 2 x 20 ga (or as required)

6шт.

551769R1

WASHER

1-13/32 x 2 x 16 ga (or as required)

10шт.

21

658735R2

SUPPORT, stripper actuating arm pivot

1шт.

BOLT, 3/8-16 x 1-1/4 hex-hd mach

2шт.

BOLT, 3/8-16 x 1-1/2 hex-hd mach

1шт.

NUT, 3/8-16 hex.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

22

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub

1шт.

23

658737R91

ARM

ASSY, stripper actuating

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

10366H

WASHER

21/32 x 1-1/2 x 22 ga

2шт.

24

658740R1

SUPPORT

BAR, stripper actuating arm adj

1шт.

BOLT, 3/8-16 x 1-1/4 no. 3 plow

2шт.

NUT, 3/8-16 hex.

2шт.

WASHER, 3/8 med lock

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

2шт.

25

656946R1

PINION

wire clamp & cutter helical driver

2шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

26

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

17080R1

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, 5/32" x 1 1/4", Slotted

1шт.

27

656952R1

ROLLER

stripper cam

1шт.

28

667197R1

PIN, 1/4 x 2-1/4 roll spring

2шт.

17141R1

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

4шт.

29

657127R1

NO LONGER SERVICED

BLADE, wire holder keeper

2шт.

BOLT, 5/16-18 x 3/4 hex-hd mach

2шт.

WASHER, 5/16 med lock

2шт.

30

657163R1

SHIM

keeper blade .010

6шт.

30

657164R1

SHIM

wire knife & keeper blade

16шт.

31

657128R1

SPACER

wire knife

2шт.

32

657188R2

NO LONGER SERVICED

KNIFE, wire

2шт.

BOLT, 5/16-18 x 1-1/4 hex-hd mach

4шт.

WASHER, 5/16 med lock

4шт.

33

V690

PIN

STUD, trip dog roller

1шт.

34

657783R91

TWISTER

HOOK ASSY, wire twister

2шт.

19336R1

LOCK PIN,1/8" x 11/16", Slotted

Pin, 1/8" x 11/16", Slotted

2шт.

35

V341

PAWL

ROLLER, trip dog

1шт.

36

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 PTF 90 deg angle lub

6шт.

37

656912R2

DISC

PINION, disk

2шт.

37

658967R1

SHIM

disk pinion adj

2шт.

38

656949R1

GEAR

SHAFT, disk pinion

2шт.

Q3478

WASHER

25/32 x 1-1/4 x 14 ga

8шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

7шт.

39

657001R1

BUSHING

wire holder shaft

2шт.

40

656947R1

BLOCK DRIVER

PINION, wire clamp & cutter helical driven

2шт.

41

656948R1

SHAFT

wire holder

2шт.

NUT, 1/2-20 hex.

2шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

2шт.

Q5035

WASHER

17/32 x 1 x 16 ga

2шт.

551658R1

WASHER

25/32 x 1-1/4 x 22 ga (or as req.)

8шт.

42

656893R1

HUB

wire holder disc

2шт.

43

657123R2

HOLDER

DISC, wire holder

2шт.

44

657124R2

SPACER

wire holder disc

2шт.

45

657126R2

HOLDER

DISC, wire holder lower

2шт.

113918

FENDER

5/16-18 x 1-1/2 slt-f-hd mach

8шт.

46

662555R1

BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L

needle crank

2шт.

47

181348

BOLT,Hex, 5/16" - 24 x 2 1/4", Gr 5

SHEAR BOLT, 5/16-24 x 2-1/4 hex-hd

1шт.

NUT, 5/16-24 hex.

1шт.

WASHER, 5/16 med lock

1шт.

48

667438R1

SHIM

wire twister shaft

2шт.

48

667439R1

SHIM

wire twister shaft .005 (or as required)

6шт.

49

668638R1

SHIM, knotter & twister drive gear .010 (or as required)

2шт.

49

668639R1

SHIM, knotter & twister drive gear .020 (or as required)

6шт.

50

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 PTF 90 deg angle lub

1шт.
