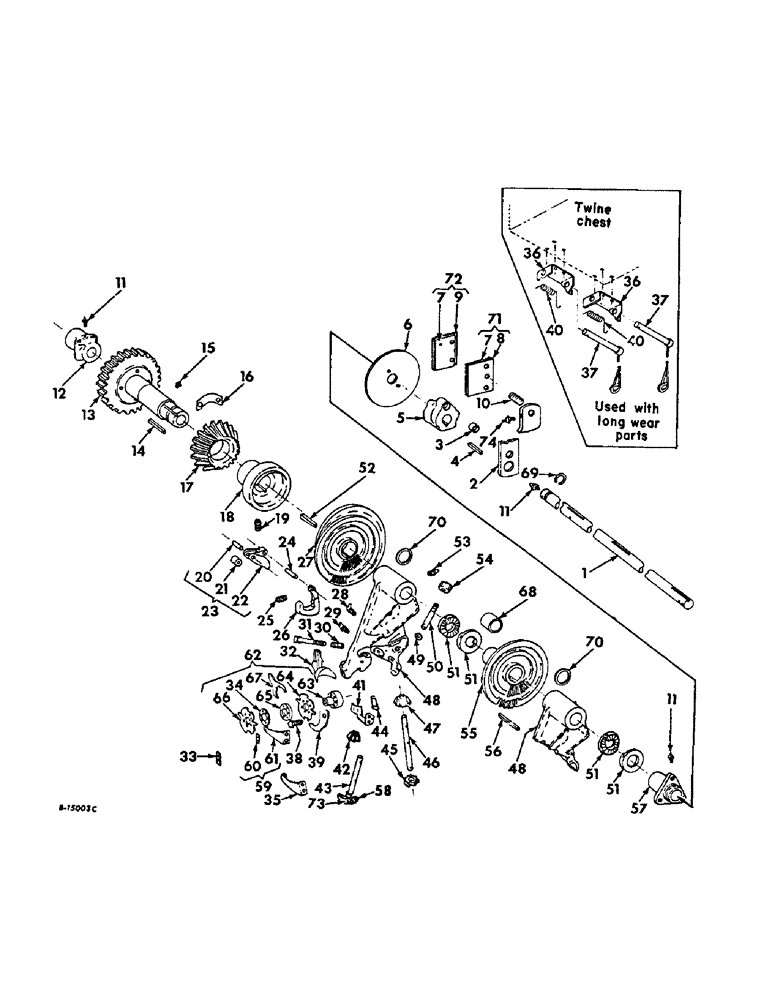

Запчасти Case IH 57 (A-34) - KNOTTER AND KNOTTER SHAFT

1

668722R11

SHAFT ASSY, knotter

1шт.

PIN, 3/16 x 2 cot.

1шт.

615264R1

WASHER

1-7/32 x 1-3/4 x 16 ga (or as required)

3шт.

Q251

WASHER

1-7/32 x 1-3/4 x 22 ga (or as required)

7шт.

WASHER, 1-7/32 x 2 x 22 ga

4шт.

Q140

WASHER

1-7/32 x 2 x 16 ga (or as required)

9шт.

2

201671C1

CRANK, needle drive, 004395 and up

1шт.

2

663548R1

CRANK, needle drive, 004394 and below

1шт.

120368

NUT,5/16"-24, G5

1шт.

181621

SCREW,Hex, 5/16" - 24 x 2 1/4"

5/16-24 x 2-1/4 znd hex-hd cap shear bolt

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21747R1

WASHER,1.22" ID x 2" OD x 0.07" Thk

1-7/32 x 2 x 16 ga C-Z

1шт.

3

662555R1

BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L

needle shear bolt

1шт.

4

Q72

KEY,5/16" Sq x 1 7/8", Par

3/8 x 1-7/8 sq parallel

1шт.

5

668629R1

HUB, needle drive

1шт.

443056

PIN,3/8" x 2", Type F

Grooved, 3/8" x 2", Type F

1шт.

6

662153R1

PLATE

knotter brake pressure

1шт.

664337R1

SCREW, 3/8-16 x 1/2 hex-hd cap nylock

2шт.

WASHER, 11/32 x 11/16 x .065 ga

2шт.

7

LINING, knotter shaft brake, (not serviced separately), order 754778R91

2шт.

8

SHOE, knotter shaft brake left, (not serviced separately), order 754777R91

1шт.

9

SHOE, knotter shaft brake right, (not serviced separately), order 754778R91

1шт.

10

U13033

SPRING

knotter brake

2шт.

BOLT, 5/16-18 x 2-3/4 hex-hd mach

2шт.

NUT, 5/16-18 hex.

4шт.

11

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 PTF 90 deg angle lub

3шт.

12

663170R1

BEARING, knotter shaft right

1шт.

BOLT, 7/16-14 x 3 hex-hd mach

2шт.

NUT, 7/16-14 hex.

2шт.

WASHER, 7/16 med lock

2шт.

13

668640R1

HUB, auger & knotter drive hypoid gear

1шт.

14

Q459

KEY,3/8" Sq x 2 1/4", Par

3/8 x 2-1/4 sq parallel

1шт.

15

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 str lub

1шт.

16

668638R1

SHIM, knotter & twister drive gear .010, (or as required)

2шт.

16

668639R1

SHIM, knotter & twister drive gear .020, (or as required)

6шт.

17

668619R1

GEAR, auger & knotter drive hypoid

1шт.

SCREW, 3/8-16 x 1-1/4 hex-hd cap

4шт.

WASHER, 3/8 med lock

4шт.

18

663185R2

HOUSING, trip dog bell

1шт.

BOLT, 3/8-16 x 1-3/4 hex-hd mach

1шт.

WASHER, 3/8 med lock

1шт.

19

V680

SPRING

trip dog

1шт.

20

V690

PIN

STUD, trip dog roller

1шт.

21

V341

PAWL

ROLLER, trip dog

1шт.

22

DOG, trip, (not serviced separately) order trip dog w/roller

1шт.

23

655712R11

PAWL

DOG W/ROLLER, trip

1шт.

24

664947R1

PIVOT

trip dog

1шт.

25

R1003

SPRING

auxiliary trip dog

1шт.

Q134

WASHER, 15/32 x 13/16 x 18 ga (or as req)

1шт.

588099R1

WASHER

15/32 x 3/4 x 22 ga (or as req)

1шт.

26

662048R2

PAWL

DOG, auxiliary trip

1шт.

26

671633R91

STRIPPER PACKAGE

PACKAGE, trip dog service, consists of (1) dog 662048R2, (1) dog w/roller 655712R11, (1) pivot 664947R1, 91) spring R1003, (1) spring V680

1шт.

27

668970R2

CARRIER

trip dog, see Note A

1шт.

27

667820R2

NO LONGER SERVICED

CARRIER, trip dog

1шт.

443057

GROOVED PIN,3/8" x 2 1/4", Type F

Pin, Grooved, 3/8" x 2 1/4", Type F

1шт.

28

19630R91

LUBE NIPPLE,90 Degree, 1/8" NPT x .76" lg, Drive

FITTING, 1/8-27 PTF 90 deg angle self tapping lub, replaces 271285

4шт.

29

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive, Replaces 274510

2шт.

30

U13033

SPRING

knotter closing cam

2шт.

31

667533R1

BOLT,3/8" - 16 x 2 7/8"

3/8-16 x 2-7/8 special knotter jaw cam bolt

2шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 lock

2шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

4шт.

32

667563R1

CAM

knotter jaw closing

2шт.

33

200425C1

SPACER

twine knife, (or as required)

6шт.

34

495504R1

SHIM

cord holder .005 (or as required)

6шт.

34

667547R1

SHIM, cord holder, .005 plastic

4шт.

34

667238R1

SHIM

cord holder, .003 (or as required)

4шт.

35

495463R4

KNIFE

twine, optional with 668961R21

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 znd hex-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

36

665197R1

BRACKET, slack arm pivot

2шт.

120221

NUT,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW, 10-24 x 1/2 znd slt-rd-hd mach

6шт.

120361

NUT,Hex Mach Screw, #10 - 24

6шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

37

665281R91

ARM

ASSY, twine slack

2шт.

PIN, 1/8 x 5/8 cot.

2шт.

Q1504

WASHER

13/32 x 7/8 x 16 ga

2шт.

38

495432R1

SCREW

STUD, cord holder keeper pivot

2шт.

Q5066

PIN

6 ga x 31/32 str

4шт.

Q232

WASHER

37/64 x 1516 x 20 ga (or as required)

2шт.

Q3476

WASHER

37/64 x 1516 x 22 ga (or as required)

2шт.

39

668963R1

HOLDER

BLADE, cord holder keeper, see Note A

2шт.

39

495474R3

SHIM

BLADE, cord holder keeper

2шт.

40

11529PA

SPRING

slack arm

2шт.

41

667408R1

SPRING

twine end retainer

2шт.

42

668959R1

GEAR

PINION, bill hook, see Note A

2шт.

42

495197R3

GEAR

PINION, bill hook

2шт.

Q3854

PIN

6 ga x 27/32 str

2шт.

43

666511R92

TWISTER

HOOK ASSY, knotter

2шт.

44

V618H

SPACER

PIECE, knotter frame wearing

2шт.

117898

PIN

5/32 x 1-1/16 str

2шт.

45

668960R1

GEAR

PINION, cord holder helical, see Note A

2шт.

45

495425R1

GEAR

PINION, cord holder helical

2шт.

46

495433R1

SHAFT HOUSING

SHAFT, cord holder drive

2шт.

47

668958R1

NO LONGER SERVICED

PINION, cord holder drive bevel, see Note A

2шт.

47

495192R3

GEAR

PINION, cord holder drive bevel

2шт.

48

668956R91

KNOTTER ASSY, see Note A

2шт.

48

666510R92

KNOTTER ASSY.

KNOTTER ASSY

2шт.

48

668957R11

FRAME W/WEARING PIECE, knotter, see Note A

2шт.

48

495965R94

KNOTTER ASSY.

FRAME W/WEARING PIECE, knotter

2шт.

BOLT, 7/16-14 x 1-1/4 hex-hd mach

2шт.

WASHER, 7/16 med lock

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

4шт.

49

667239R1

DISC

SHIM, knotter hook shaft & cord holder spindle, as required on 666511R92, 668415R1, 495433R1

1шт.

50

668415R1

SPINDLE

cord holder

2шт.

NUT, 7/16-14 cd or zn-pltd hex.

2шт.

NUT, 7/16-14 cd or zn-pltd hex. jam

2шт.

Q232

WASHER

37/64 x 15/16 x 20 ga (or as required)

2шт.

Q3476

WASHER

37/64 x 15/16 x 22 ga (or as required)

2шт.

51

667813R1

COLLAR CLAMP

COLLAR, knotter adjusting

4шт.

443100

STUD

No. 12 x 1/2 drive

4шт.

52

Q3728

KEY,Gib, 3/8" Sq x 2 1/8" Tap

3/8 x 2-1/8 sq tapered

1шт.

53

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 PTF self tapping lub

6шт.

54

668978R1

GEAR

cord holder helical driven, see Note A

2шт.

54

668416R1

GEAR

cord holder helical driven

2шт.

55

668971R2

CAM, knotter left, see Note A

1шт.

55

667819R1

CAM

knotter left

1шт.

NUT, 1/2-13 hex.

1шт.

SCREW, 1/2-13 x 3 hex-hd cap

1шт.

WASHER, 1/2 med lock

1шт.

56

Q22

KEY

3/8 x 1/4 x 2-1/4 str

1шт.

57

668636R1

BEARING, knotter shaft, left

1шт.

BOLT, 3/8-16 x 1-1/4 No. 3 plow

3шт.

NUT, 3/8-16 hex.

3шт.

WASHER, 3/8 med lock

3шт.

58

666517R92

HOOK

JAW ASSY, knotter

2шт.

59

668961R21

KNIFE

ASSY, twine, see Note A, optional with 495463R4

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 cd or zn-pltd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

60

668962R1

KNIFE,14.28mm L x 9.53mm W x 0.71mm Thk

BLADE, twine knife, see Note A

2шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

8-32 x 3/16 cd or zn-pltd pan-hd slt mach

2шт.

61

BODY, twine knife, (not serviced separately), order 668961R21

1шт.

62

495619R95

DISC

DISK AND CLEANER ASSY, cord holder

2шт.

62

668964R92

HOLDER

DISK AND CLEANER ASSY, cord holder, see Note A

2шт.

63

668965R1

HUB

cord holder, see Note A

2шт.

17348R1

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

2шт.

64

672524R2

DISC

DISK, cord holder rear, replaces 495446R2, if 495446R2 is required order 672524R2, 668965R1, 668967R1, 17064R1 and six, 110532

2шт.

64

668966R2

DISC

DISK, cord holder rear, see Note A

2шт.

65

668967R1

RETAINER

SPACER, cord holder, see Note A

2шт.

66

495462R3

DISC

DISK, cord holder front

2шт.

66

668968R2

DISC

DISK, cord holder front, see Note A

2шт.

110532

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

12шт.

67

495475R3

HALF BLADE

CLEANER, cord holder

2шт.

67

668969R2

CLEANER ASSY.

CLEANER, cord holder, see Note A

2шт.

68

668972R1

SPACER, knotter cam left, see Note A

1шт.

69

301020R1

SNAP RING,#118, Ext

Ring, Snap, , knotter shaft #118, Ext

1шт.

70

667588R1

DISC

SHIM, knotter to cam fit up (or as required)

2шт.

71

754777R91

SHOE

ASSY, knotter shaft brake LH

1шт.

72

754778R91

SHOE

ASSY, knotter shaft brake RH

1шт.

180044

SPRING

SCREW, 1/4-20 x 2 znd hex-hd cap

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

73

666515R1

PIN

knotter hook jaw

2шт.

74

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str drive lub, 004395 and up

1шт.
